Why Some Canadian Vehicles Need CANbus Decoders for LED Headlights
Some Canadian vehicles need a CANbus decoder after an LED headlight upgrade because the replacement bulb behaves differently from the original halogen bulb. The most relevant factors are daytime running light operation, the power signal supplied to the lamp, and the vehicle's bulb-failure monitoring system.
These differences can cause flickering, intermittent illumination, or a dashboard warning even when the new bulb is not defective. However, being a Canadian-market vehicle does not automatically mean a decoder is required. The right solution depends on the specific vehicle, lighting circuit, and LED bulb.
What Is an LED Headlight Decoder?
An LED headlight decoder is an electrical accessory intended to address certain compatibility problems between a replacement LED bulb and the original vehicle lighting system. Depending on its design, it may condition the power signal, compensate for a change in electrical load, or combine these functions.
These products are also sold as CANbus adapters, anti-flicker modules, and warning cancellers. Their functions vary, so the product name alone is not enough to determine whether an accessory will solve a particular problem.
In this context, a decoder is not an OBD diagnostic scanner. Speedometer unit changes, language settings, and engine fault-code checks are separate topics from LED lighting compatibility.
Why DRL Operation Matters for Canadian Vehicles
Daytime running lights, or DRLs, make vehicles easier to see during daylight. They are an established part of Canadian vehicle lighting, which makes DRL operation an important consideration when selecting replacement bulbs.
Some vehicles use a headlamp bulb in more than one operating mode. A replacement may work correctly when the headlight is fully switched on but behave differently when the same bulb operates as a daytime running light.
Depending on the vehicle, the daytime mode may use reduced voltage or a pulsed power signal. If the replacement LED driver cannot operate correctly under those conditions, the bulb may flicker or fail to illuminate consistently.
This is why checking only the main headlight function can miss a compatibility issue. The installation should also be checked in the original DRL mode and when switching between the relevant lighting modes.
DRLs are designed for daytime visibility. They do not replace the headlights needed to illuminate the road in darkness or bad weather.
Why LED Bulbs Can Flicker or Trigger Dashboard Warnings
Pulsed Power Can Produce Visible Flickering
Some vehicle lighting systems use pulse width modulation, or PWM, to control the power delivered to a bulb. A halogen filament retains heat between rapid pulses, so the switching is less noticeable. LEDs respond much faster, and an incompatible driver can turn those pulses into visible flickering.
A suitable anti-flicker module may help manage this power-signal mismatch. Its suitability still depends on the actual circuit and the LED bulb being used.
A Different Electrical Load Can Trigger a Bulb Warning
An LED replacement often consumes less power than the original halogen bulb. A vehicle that monitors lamp load may interpret that difference as a failed bulb, producing a dashboard warning even while the LED is illuminated.
A compatible load-compensation solution can help address that false warning. This is different from correcting an unsuitable power signal, although some decoders are designed to handle both issues.
Choosing a CN360 Decoder for the Application
Start by identifying the original bulb type and the symptom that needs to be corrected. Matching the connector is necessary, but voltage, lamp power, operating mode, and vehicle compatibility also need to be checked.

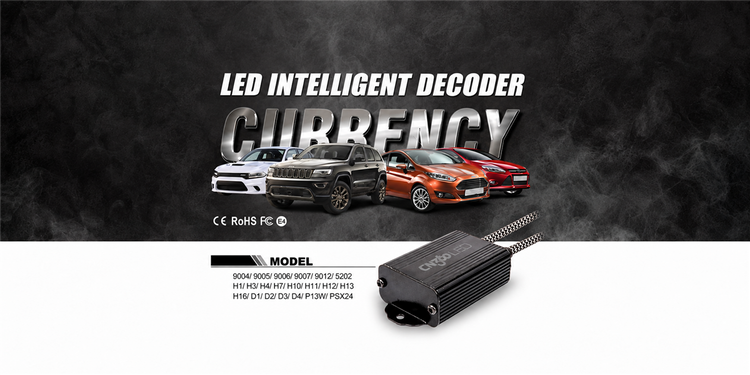

C6P Decoder for 9005, 9006, 9012, H10 and H12 Applications
The CN360 C6P LED decoder for 9005, 9006, 9012, H10 and H12 is designed to address retrofit lighting issues such as dashboard errors, flickering, and intermittent operation. Its product information describes enhanced power filtering and feedback intended to resemble the original halogen lamp load.
For buyers working with these bulb types, it provides a specific product to evaluate with the selected LED bulb and vehicle circuit. Confirm the permitted lamp load and application before ordering.
C8-H11 Decoder for H11 Applications
For an H11 installation, the CN360 C8-H11 LED headlight decoder is another application-specific option. Its listed functions include addressing light flickering, dashboard light-out errors, intermittent operation, and flickering associated with repeated power checks.
Both of these product pages specify a DC 9-16V operating range. That specification should not be treated as confirmation of compatibility with a DRL circuit operating below 9V. A reduced-voltage or PWM-controlled application needs separate verification under its actual operating conditions.
For other connectors, explore the CN360 LED decoder range and compare the relevant product specifications. Select the accessory around the complete application rather than the connector shape alone.
What to Check Before Ordering or Installing a Decoder
A clear compatibility inquiry helps the supplier assess the application more accurately. Include the following information:
- Vehicle identity: make, model, year, trim, and original sales market.
- Factory lighting: original bulb type and whether the bulb also serves as a DRL.
- LED replacement: exact product model, rated power, and any adapter already installed.
- Symptoms: flickering, a dashboard warning, failure to illuminate, or intermittent operation.
- Timing: whether the issue occurs at startup, in DRL mode, with the headlights on, or during a mode change.
After installation, check each relevant lighting mode and the dashboard indications. Record the conditions in which a problem occurs. Reinstalling the original bulbs can help establish whether the symptom is associated with the LED conversion or whether the original system also needs attention.
Plan the installation space as well. The linked CN360 decoder pages note that their control boxes generate heat and recommend positioning them outside the headlamp dust cap where one is fitted. Follow the instructions for the selected product when securing the module and routing its wiring.
Common Questions About LED Decoders in Canada
Do All Canadian Vehicles Need a Decoder?
No. The requirement depends on the vehicle and LED combination. A bulb that operates correctly in every required mode without warnings may not need an additional accessory.
Does Canadian Winter Weather Make a Decoder Necessary?
Cold weather alone is not a reason to add a lighting decoder. The decision should be based on a confirmed compatibility issue and the operating requirements of the selected products.
Does a Matching Socket Guarantee Compatibility?
No. Connector fit does not establish that the module supports the circuit's voltage, control method, or the replacement bulb's power requirements. These details should be checked together.
Will One Decoder Solve Every Flickering Problem?
No. Flickering is a symptom rather than a complete diagnosis. Identify when it occurs and confirm the relevant application before selecting a module.
Build a Verified LED Lighting Combination for Your Market
For Canadian applications, checking DRL behavior is an important part of selecting LED replacement bulbs. A successful combination needs to work in the vehicle's actual lighting modes, with stable operation and appropriate dashboard behavior.
For distributors and installers, keep compatibility records by vehicle, bulb model, and decoder model. This makes future recommendations more precise and helps separate confirmed combinations from applications that still require testing.
When discussing an order with CN360, provide your target vehicles, original bulb types, LED power requirements, and DRL operating details. These are the practical starting points for selecting a suitable bulb-and-decoder combination.
