What Is a Clear Cutoff Line in Automotive Lighting?

Switch on your vehicle's low-beam headlights in front of a wall, and look at the upper edge of the illuminated area. You may see a clearly defined boundary, a softer transition, or an irregular pattern with light extending above the main beam. That boundary is known as the cutoff line.

A clear cutoff helps you understand how the headlight controls its light distribution. However, the line is only part of the picture. Its position, the coverage below it, and any unwanted light above it also matter when evaluating the installed beam.

What Is a Clear Cutoff Line?

A headlight cutoff line is the transition between the brighter main beam below and the darker area above. A clear cutoff has a distinct boundary that is easy to identify when the low beam is projected onto a suitable surface.

This boundary is created by the headlight's optical system working with its light source. It helps define the upper edge of the main low-beam distribution, allowing the lamp to illuminate the road while controlling light toward other drivers.

The expected shape is not always a straight horizontal line. Depending on the headlight design and the traffic system it serves, the pattern may include a step or a rise toward the roadside. That intentional shape should not be confused with uncontrolled upward spill.

Why Is the Cutoff Line Important?

It Helps Control Upward Light and Glare

A correctly designed and aimed low beam limits light in directions that could interfere with other road users' vision. The cutoff provides a visible indication of the upper boundary of that beam.

Its position is essential. Even a sharply defined cutoff can cause glare if the headlight is aimed too high. Evaluate where the boundary falls, rather than judging only how crisp it looks.

It Supports Useful Road Illumination

The purpose of beam control is to place useful light where the driver needs it. A suitable low-beam pattern provides road coverage while managing illumination toward oncoming traffic.

A clear cutoff alone does not prove that more light reaches the road. To assess useful illumination, also examine the width of the beam and how brightness is distributed below the boundary.

It Makes the Beam Easier to Assess

A recognizable cutoff can provide a reference for checking aim on headlamps designed for visual or optical adjustment. It can also help reveal a change after a bulb replacement or installation work.

However, cutoff clarity and beam uniformity are separate characteristics. A lamp can have a sharp upper edge while still producing uneven brightness or unwanted dark areas within the illuminated region.

Clear vs. Blurry Cutoff Lines: What Should You Look For?

When comparing two low-beam patterns, start with the boundary, then examine the light around it. Keep the setup consistent so that distance, angle, or camera exposure does not create a misleading difference.

A Clear Cutoff Line

A clear cutoff has an identifiable transition between the main illuminated area and the darker area above. Its shape is easier to compare with the headlight's intended pattern and aiming reference.

Look beyond the edge itself. Check whether the beam is correctly positioned, whether coverage below it is useful, and whether strong light streaks appear above the expected boundary.

A Blurry or Irregular Cutoff Line

A blurry cutoff has a broader transition that makes the boundary harder to identify. An irregular pattern may also show distorted edges or unexpected light extending upward.

If these changes appear after fitting a replacement bulb, inspect its seating, orientation, and compatibility with the housing. A pattern that has changed noticeably deserves investigation before further adjustment.

Not every softer edge indicates poor performance. Different optical designs produce different transitions, and photographs can exaggerate or hide them. The useful comparison is against the intended beam pattern, not an expectation that every headlight should produce the sharpest possible line.

What Factors Affect the Cutoff Line?

Optical Structure

The reflector, lens, and any cutoff shield used in the design shape the light together. Their geometry determines how the beam spreads and where its upper boundary forms.

This is why cutoff performance belongs to the complete headlight system. One component's design cannot establish the final result without considering the other optical elements.

LED Chip Position

The location and geometry of the emitting area affect how light enters the surrounding optics. In a replacement LED bulb, the relationship between the chips and the housing matters as much as physical socket fit.

For example, the CN360 T08 Series H4 LED Headlight Bulb with Optical Lens combines an optical lens structure with customized 3570 LED chips for compatible H4 applications. These features form part of its optical design, while the installed low-beam pattern still needs to be checked in the intended housing.

Installation Angle and Seating

A bulb that is not fully seated may place the light source differently from its intended position. Incorrect orientation can also change how the optics distribute light.

Follow the installation instructions for the specific bulb and headlamp. If an adjustable mounting collar is provided, use the prescribed orientation rather than assuming that one angle works for every application.

Bulb orientation and headlight aim are different adjustments: one positions the source inside the housing, while the other directs the complete beam.

Headlight and Vehicle Compatibility

Confirm the correct bulb type and its suitability for the intended headlamp. A matching connector or base does not establish optical compatibility.

Vehicle loading and leveling settings can also change where the cutoff falls. Check the beam with the vehicle prepared as specified by its manufacturer, and inspect the headlamp lenses for contamination or damage that could affect the result.

How Can You Check the Cutoff Line?

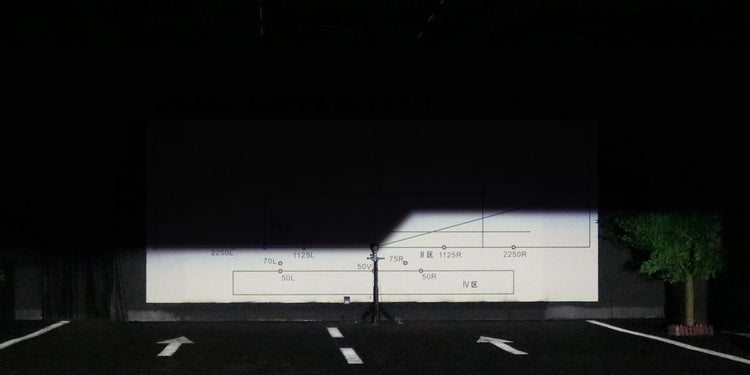

A wall check is a useful first step for identifying obvious irregularities. Use the vehicle or headlamp manufacturer's instructions for the actual aiming procedure.

1. Prepare the vehicle. Park on level ground facing a vertical wall. Check tire pressures and follow the specified loading and headlight-leveling conditions.
2. Set the correct distance and reference marks. Use the manufacturer's measurement distance and aiming target. Avoid applying a universal distance or downward adjustment to every vehicle.
3. Switch on the low beams. Observe the main illuminated area and its upper boundary. Follow the recommended procedure if each headlight needs to be assessed separately.
4. Check shape and position. Look for unexpected distortion, strong upward streaks, or a boundary outside the specified target. Allow for any intentional step or asymmetric rise.
5. Review the coverage below the cutoff. Note abrupt dark areas or an unusual imbalance between the two lamps. The intended pattern does not necessarily have equal brightness everywhere.
6. Confirm any correction. If the result is uncertain, have the beam checked and adjusted with suitable equipment. Some leveling systems require a diagnostic setup before adjustment.

A wall inspection can reveal a problem, but it does not measure the complete light distribution or establish road-use compliance.

Judge the Complete Beam, Not Just Watts and Lumens

Wattage describes electrical power consumption, while lumens describe total light output. Neither figure tells you exactly where the light will go after it passes through the headlamp's optics.

When evaluating a headlight, look at cutoff definition and position together with beam width, brightness distribution, and unwanted light above the intended boundary. A bright center or a sharp line should lead to a closer look at the whole pattern, rather than end the comparison.

For a CN360 headlight project, provide the bulb type, target vehicle or headlamp housing, and intended market. These details help guide product selection toward a suitable installed beam.
