The Physics of Heat Dissipation: Why Die-Cast Aluminum Saves Your LED Lights
LED is efficient, but it is not immune to heat. Without robust thermal management, a 300W light bar can become a ticking time bomb: bright when it first switches on, then progressively dimmer, hotter, and less reliable during the work it was bought to do.
That risk is real in the situations that matter most: a long night trail at low vehicle speed, a mining machine operating through a full shift, or a work light mounted where hot air, dust, vibration, and limited airflow all arrive at once. A high-output LED light does not fail only because its chips are poor. It can fail because the heat generated at the LED junction has nowhere efficient to go.
For buyers comparing high-power LED work lights and light bars, the housing is not merely a shell. It is part of the thermal system. A well-engineered die-cast aluminum body can create a shorter, stronger, more consistent path from the LED board to the surrounding air - helping the light sustain output and protect its service life under continuous load.
The Enemy Within: How Heat Degrades LED Chips
An LED converts electrical energy into light, but it also produces heat. The critical location is the LED junction: the tiny active area inside the LED package where light is generated. If that junction temperature rises too far, the effects are not always immediate. The lamp may continue working, but its performance can begin moving in the wrong direction.
- Light output can fall: Higher junction temperatures reduce the amount of light produced at a given drive current.
- Lumen maintenance can deteriorate faster: The LED may lose brightness more quickly over its operating life.
- Color can shift: Heat can contribute to changes in the phosphor, encapsulant, and package materials that affect the perceived beam color.
- Electronic stress rises: Drivers, solder joints, seals, and nearby components are also exposed to higher temperatures.
This is why a lamp that looks impressive in a short showroom test may disappoint after 30 minutes of real work. The first few minutes reveal peak output. Long-duration operation reveals the quality of the thermal path.
Think of heat flow as a relay race:
LED junction → LED package → circuit board → thermal interface → aluminum housing → heat-sink fins → surrounding air.
If one handoff is poor, heat backs up behind it. A thick housing alone cannot solve that problem. Neither can a large number printed on the wattage label. The system must move heat continuously from the source, spread it through the body, and release it into moving or naturally circulating air.
Why a Light May Dim After It Has Been Running
Some well-designed LED lights use thermal protection or thermal derating. When internal temperature reaches a programmed limit, the driver deliberately reduces current to prevent more severe damage. To the operator, the light may appear strong at startup and noticeably weaker later in the shift.
Thermal derating is better than allowing the LED chips or electronics to overheat unchecked. But it is still a signal worth understanding. In a hot, enclosed, dusty, or low-airflow installation, frequent derating can mean the light is operating close to the limits of its thermal design.
Die-Cast Aluminum vs. Extruded Aluminum: Structural Integrity Is Part of Thermal Management
It is tempting to ask which process is simply "better": extruded aluminum or die-cast aluminum. The honest answer is that both can be engineered into effective LED heat sinks. Extrusion can use aluminum alloys with strong thermal conductivity and is very effective for long, straight fin profiles. Die casting does not win by magic alloy alone.

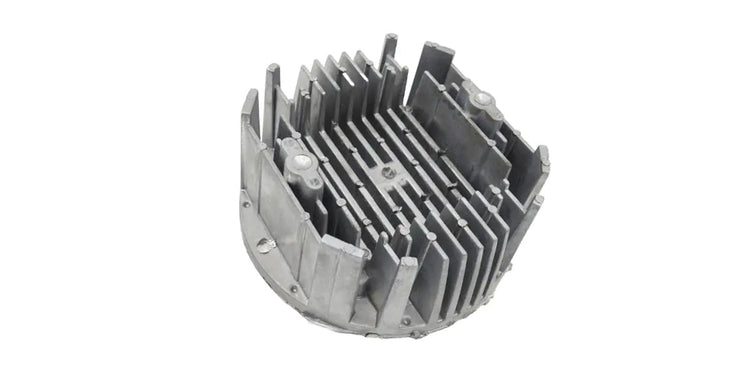

The reason die-cast aluminum is valuable in demanding LED work lights is different: it gives engineers more freedom to combine the light housing, mounting structure, sealing features, reinforcement ribs, and heat-dissipation surfaces into a single integrated casting.
| Design approach | Where it can work well | Thermal-management consideration |
|---|---|---|
| Extruded aluminum | Long housings with straight, continuous fin profiles. | Can offer excellent conduction and surface area, especially when airflow follows the fin direction. |
| Die-cast aluminum | Complex work-light housings, multi-directional fin layouts, integrated mounting and sealing features. | Can reduce separate interfaces and allow the housing geometry to be designed around heat spreading, airflow, vibration resistance, and packaging constraints together. |
For an off-road LED light bar or industrial work light, that integration matters. A one-piece die-cast body can avoid relying on multiple attached pieces to perform critical structural and thermal roles. It can support a broad heat-spreading base behind the LED board, perimeter ribs for stiffness, cast-in mounting points, and fin geometry that works even when airflow is not perfectly aligned with the lamp.
That does not mean every die-cast light runs cool. Poor alloy selection, thin material around the heat source, trapped air, weak contact between the board and housing, or decorative fins with poor airflow can still produce a hot-running lamp. The better buying question is not simply, "Is it die-cast?" It is, "How does this complete housing move heat away from the LEDs during continuous operation?"
Why Fewer Thermal Interfaces Matter
Every interface in the heat path can add thermal resistance. Where a LED board meets a housing, flatness, mounting pressure, thermal interface material, and contact area all matter. A carefully designed integrated housing gives the engineer a stable base for the LED board and reduces the need to join several separate structural parts before heat can reach the outside surfaces.
This also has a reliability benefit in hard-use environments. Heavy equipment, off-road vehicles, and agricultural machinery introduce vibration, shock, moisture, and temperature cycling. A rigid integrated body can help keep the thermal path, seals, and mounting relationship more consistent over time.
The Role of Heat Sinks and Fin Geometry in Airflow
Heat-sink fins do not cool a light simply because they make the back look aggressive. Their job is to increase surface area and create usable routes for air to carry heat away. Good fin design balances several variables at the same time:
- Available surface area
- Fin height and thickness
- Spacing between fins
- Fin direction relative to expected airflow
- Mounting orientation
- Dust, mud, and debris exposure
- Housing mass and the area available to spread heat from the LED board
More fins are not always better. If fins are packed too tightly, the air channels between them can become inefficient. Heat builds up in the boundary layers around the fins, airflow is restricted, and the added surface area does not deliver the cooling benefit the design intended.
That is why fin geometry should be treated as airflow engineering, not decoration. A light mounted behind a grille, under a roofline, or on slow-moving equipment may experience far less airflow than the same lamp on a fast-moving vehicle. A design that relies on a single airflow direction can also be less forgiving when the installation angle changes.
What Good Heat-Sink Geometry Looks Like in the Field
For a high-output LED light, look beyond the number of fins. Useful questions include:
- Does the body have a substantial heat-spreading area directly behind the LED board?
- Are the fins open enough for air to pass through instead of trapping hot air?
- Will the fin channels stay reasonably clear in the intended environment?
- Does the housing still manage heat when the vehicle is stationary or moving slowly?
- Has the lamp been designed for the installation orientation and ambient temperature it will actually face?
A large aluminum body with purposeful fin spacing is often more meaningful than a thin shell covered in closely packed cosmetic ridges. In real equipment use, the best thermal design is the one that continues releasing heat after dust, vibration, high ambient temperature, and long operating hours enter the picture.
How to Evaluate Thermal Design Before You Buy
Thermal management is difficult to judge from a single product photo. When specifying high-output LED work lights, ask the supplier for evidence that relates to continuous operation, not only initial brightness.
- Continuous-run conditions: At what ambient temperature, input voltage, mounting orientation, and operating duration was the lamp evaluated?
- Thermal protection behavior: Does the driver reduce output at a defined internal temperature, and what happens after the light cools?
- Housing construction: Is the body an integrated die-cast aluminum housing, an extruded profile, or a multi-part assembly?
- LED-board contact: How is heat transferred from the LED board into the housing?
- Installation guidance: Is there enough free air around the rear fins after mounting?
- Application fit: Is the lamp being selected for occasional road use, stationary task lighting, slow-moving machinery, or long-duration off-road work?
These questions help separate a short-burst brightness claim from a lighting system designed to hold up through an entire shift.
Specify for the Worst Shift, Not the First Five Minutes
The real value of a high-power LED light is not how bright it appears the moment it is switched on. It is how consistently it performs after the surrounding air is hot, the vehicle is moving slowly, the fins are exposed to dust, and the job is only half finished.
Die-cast aluminum can be a powerful part of that answer because it lets a manufacturer engineer the housing as a structural and thermal component at the same time. But the strongest design is always a complete system: efficient LED-to-housing contact, a heat-spreading base, purposeful fin geometry, usable airflow, sensible driver protection, and installation conditions that match the job.
When the application demands long nightly operation or continuous heavy-equipment use, buy for thermal control first. Brightness that survives the shift is more valuable than brightness that only wins the first five minutes.
FAQ: Why Is My LED Light Bright at First but Dimmer After 30 Minutes?
This can be thermal derating. When internal temperature becomes too high, a well-designed LED driver may automatically reduce power to limit stress on the LED chips and electronics. It is a protective response, not necessarily an immediate failure.
However, if the light repeatedly dims in a cool, open-air installation, inspect whether the rear fins are blocked, the housing is packed with debris, the installation traps heat, or the lamp's thermal design is insufficient for its real operating load. A light that must constantly reduce output to protect itself is not delivering its full rated performance for the conditions in which it is being used.
