Why Aluminum PCBs Are Common in LED Lighting
Aluminum PCBs are widely used in LED lighting because they help transfer heat away from the LEDs while providing a solid base for the circuit. In a compact lamp, this thermal path matters: heat must move away from a small light source and reach surfaces that can release it into the surrounding environment.
However, not every LED light uses an aluminum PCB. The appropriate board depends on the LED package, power level, available space, and cooling design. Understanding how an aluminum board works helps buyers evaluate a lighting product beyond a simple material claim.
Why LEDs Need an Effective Thermal Path
LEDs convert electrical energy into both light and heat. If the heat is not removed effectively, the temperature at the LED junction rises. Excessive junction temperature can reduce light output and shorten operating life.
The PCB is one part of the route that carries this heat away. Its performance depends on its construction and how it connects to the rest of the lamp. A good board cannot compensate for every limitation elsewhere in the cooling system.
The Three Main Layers of an Aluminum PCB
A common single-circuit-layer aluminum metal-core printed circuit board, or MCPCB, has three main structural layers. Surface finishes and solder mask may also be present.
| Layer | Main Function | What Matters |
|---|---|---|
| Copper circuit layer | Provides electrical connections and component mounting pads. | Circuit layout, copper thickness, and the LED mounting area. |
| Thermally conductive dielectric | Electrically separates the circuit from the metal base while allowing heat transfer. | Thermal resistance, thickness, and electrical insulation requirements. |
| Aluminum base | Supports the board and spreads heat. | Board dimensions and connection to the lamp's cooling structure. |
The dielectric is especially important. Aluminum conducts heat well, but heat must still pass through the insulating layer. Its thermal resistance can limit the performance of the board.
How Heat Moves from the LED to the Air
For a typical MCPCB assembly mounted on a heat sink, the main heat-transfer route can be summarized as:
LED junction → package thermal path → solder connection → PCB → thermal interface → heat sink → surrounding air
The board spreads and conducts heat; the heat sink and surrounding airflow help release it. Thermal interface material between the board and heat sink also contributes to the total thermal resistance.
This explains why an aluminum PCB and an aluminum lamp housing are different specifications. The housing describes the outer structure. The PCB description identifies part of the internal heat-transfer path. One does not prove the construction of the other.
Airflow matters too. Heat-sink fins need suitable spacing and access to air, while a fan-assisted design relies on forced airflow. The complete assembly should be evaluated in its intended installation.
What Aluminum PCBs Can Offer LED Lighting
The main benefit is a practical combination of circuit support and heat spreading. When selected and integrated correctly, an aluminum PCB can help a designer manage the temperature of an LED assembly within a compact space.

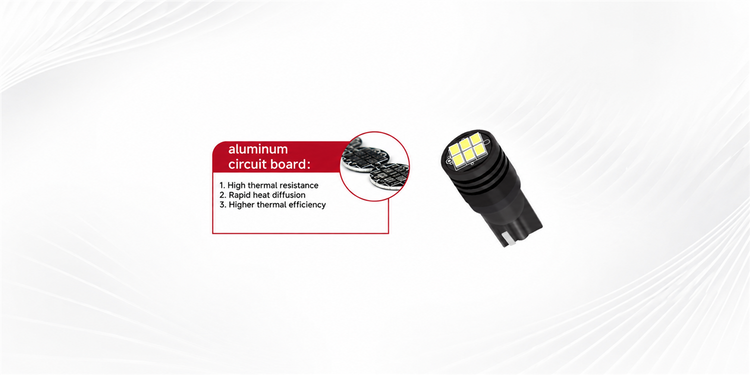

For an automotive example, the CN360 K6 T10 Canbus LED bulb explicitly lists an aluminum-substrate PCB. Its intended applications include interior and license plate lighting. This is a documented example of aluminum PCB use in a small replacement bulb.
Material choice should still be considered alongside manufacturing and assembly needs. Surface-mount assembly is compatible with aluminum PCBs, but SMT is not exclusive to this board type. Similarly, smaller dimensions, lower cost, and longer life are possible design outcomes rather than automatic results of choosing aluminum.
Why Not Every LED Light Uses an Aluminum PCB
Other board designs can meet the thermal requirements of an LED application. For example, appropriately designed FR-4 boards can use thermal vias to carry heat through the board. Metal-core boards may also use other base metals.
The decision should follow the application rather than a universal material ranking. A low-power indicator and a compact headlight bulb do not necessarily need the same thermal construction.
Higher-power products may combine several cooling elements. The CN360 K1C H11 LED headlight bulb, for example, lists dual copper heat pipes and a cooling fan. These features illustrate cooling at the complete-product level; they should not be interpreted as confirmation of that model's PCB substrate material.
How to Evaluate Thermal Performance Claims
For purchasing decisions, ask for a test description rather than relying on an isolated temperature image or a claim that one material is several times better than another.
A useful comparison should identify:
- Operating conditions: supply voltage, current, and actual input power.
- Environment: ambient temperature, airflow, and whether the lamp is enclosed.
- Assembly: board construction, mounting method, interface material, and heat sink.
- Measurement location: LED solder point, board surface, housing, or another clearly identified point.
- Test duration: whether the readings represent startup or stabilized operation.
- Lighting output: brightness measured under the same operating conditions.
Keep these conditions comparable when reviewing two designs. A cooler housing alone does not establish a cooler LED junction, and a short startup reading does not describe sustained performance. Junction-temperature assessment should follow the LED manufacturer's measurement guidance.
Choose the Thermal Design, Not Just the Material Label
An aluminum PCB is a useful component of many LED lighting designs, but it is not a complete quality assessment. Buyers should ask how the board, interface, housing, heat sink, and any active cooling work together.
For a CN360 product inquiry, specify the intended lighting position, operating voltage, installation space, and expected operating duration. Request the board construction and thermal-performance information for the exact model being considered. This creates a stronger basis for selection than assuming that every LED lamp needs the same substrate.
