Product Specifications

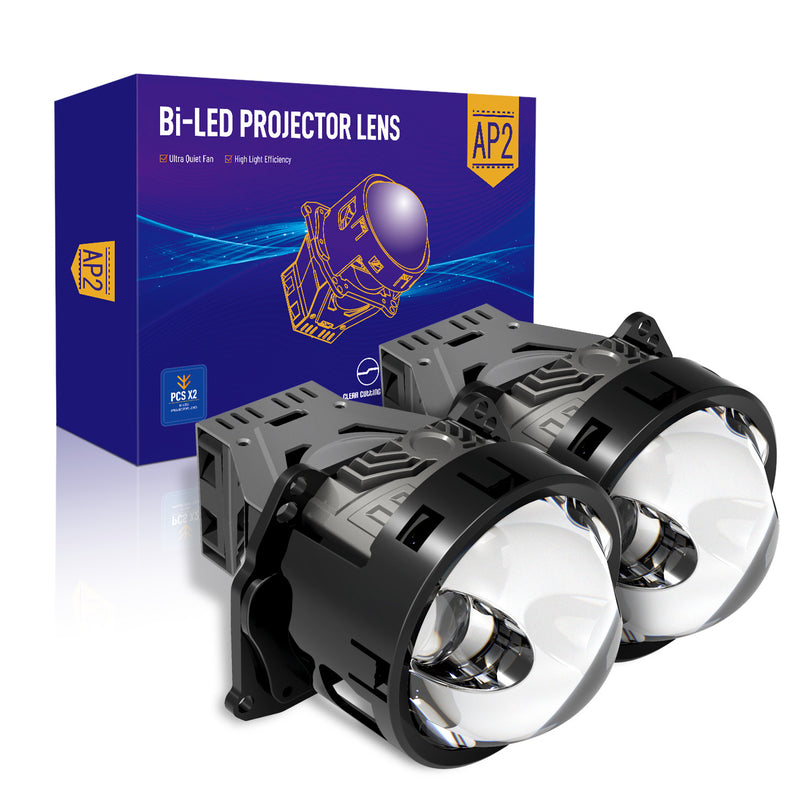

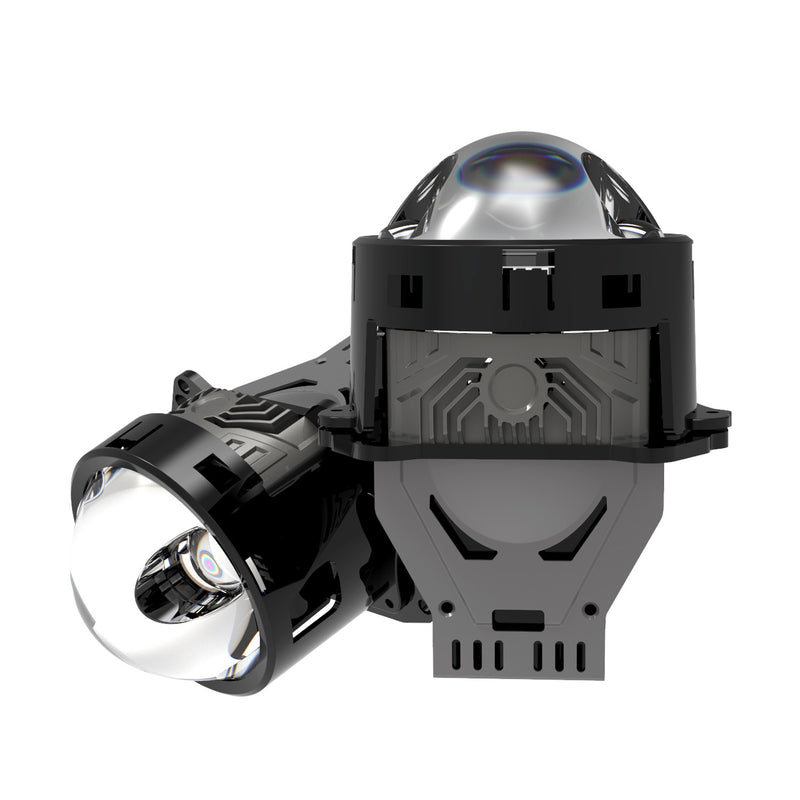

AP2 Series LD01075-A Dual Direct Projector Headlight

AP2 Series LD01075-A Dual Direct Projector Headlight pushes the AP2 platform further toward a stronger direct beam profile while keeping the same five opening strengths that define the series. The product starts with advanced heat dissipation and a heat resistant structure to support more stable operation when the headlight is used for long periods or under more demanding conditions. It is also built around 6 lane coverage, giving the beam a wider road presence and helping the driver gain a broader visual field instead of relying on a narrow center spot alone. A fast and precise solenoid switch helps the headlight move cleanly between high beam and low beam, which is especially important in a projector based system that needs both structure and responsiveness. The ultra clear thermoplastic lens completes this opening section by helping the optical system maintain clean light transmission and a more disciplined beam image. These five points create the foundation for a projector headlight that is aimed at serious performance use.

This model also benefits from the same strong compliance and presentation value found across the AP2 lineup. It is listed with EMC (R10), CE, and RoHS certification, giving buyers a clearer compliance message for markets that care about electrical compatibility. The LED source uses one GC-3570 LED and three GC-5050 LEDs, which already signals that this version is built for a more assertive high beam role than the earlier models. Stable output is listed at 3084 LM per bulb in high beam and 2220 LM per bulb in low beam, while stable high beam power reaches 70.33 W per bulb. That makes AP2 Series LD01075-A a stronger step up for customers who want more direct beam emphasis and a more performance oriented place in the lineup.

Industry Leading Dual Fan Cooling Technology

As output levels rise, cooling becomes even more important, and that is why the dual fan system remains a central feature of this model. The AP2 platform uses a dual fan structure to keep heat moving out of the housing efficiently, helping protect the LED source and maintain more stable performance after startup. A projector headlight with multiple high output LED elements can lose practical value quickly if heat control is weak, because thermal buildup affects both brightness stability and overall component durability. The dual fan design helps prevent that problem by improving heat exchange in a direct and continuous way. The platform highlights thermal performance improved by 90 percent and less than 3 percent lumen depreciation, which reinforces the role of cooling as a real performance factor. For customers comparing products within the same price range or product class, this kind of thermal message adds useful technical credibility.

Bi Reflector High Low Beam

Even though this version is more aggressive in its direct high beam layout, it still keeps the bi reflector high low beam structure that gives the AP2 series its practical driving value. Low beam remains an important part of the product because daily road use depends on controlled and functional illumination, not only on maximum output. High beam adds more forward reach and intensity, while the solenoid system allows the transition between beam states to stay fast and accurate. This matters because a high output headlight still needs to feel organized and usable, especially in retrofit applications where customers expect an upgrade in beam quality as well as brightness. The bi reflector structure supports that balance by keeping the headlight useful in both normal night driving and stronger distance oriented situations.

Advanced High Output LEDs Deliver an Ultra Long Precision Beam

AP2 Series LD01075-A uses one GC-3570 LED and three GC-5050 LEDs, giving it a clear output increase compared with the earlier versions in the range. Cold start power output reaches 81.43 W per bulb in high beam and 52.33 W per bulb in low beam, while stable power output remains at 70.33 W and 50.04 W per bulb. Cold start lumen output is listed at 3538 LM per bulb in high beam and 2481 LM per bulb in low beam, with stable lumen output at 3084 LM and 2220 LM per bulb. Even though lux data is listed as NA, the combination of additional GC-5050 LEDs, higher high beam power, and strong stable lumen output clearly places this model in a more performance centered position. With the help of the clear thermoplastic lens and the broad coverage optical base, the headlight is built to deliver a beam that feels both intense and controlled.

Dual Direct High Beam

The defining feature of AP2 Series LD01075-A is its dual direct high beam layout. Within the four model group, this version moves beyond the single direct configuration and offers a stronger direct beam character for customers who want a more assertive high beam presentation. That makes it a good choice for product lines that need a visible step between mid level and higher output options. The dual direct layout can be positioned as a stronger performance upgrade while still staying within the complete AP2 platform message of broad road coverage, dual fan cooling, and controlled projector beam behavior. It also remains supported by certification that helps with market presentation, including EMC (R10). In practical sales terms, AP2 Series LD01075-A is well suited to buyers who want a clearer jump in direct high beam performance without moving all the way to the top triple direct version.

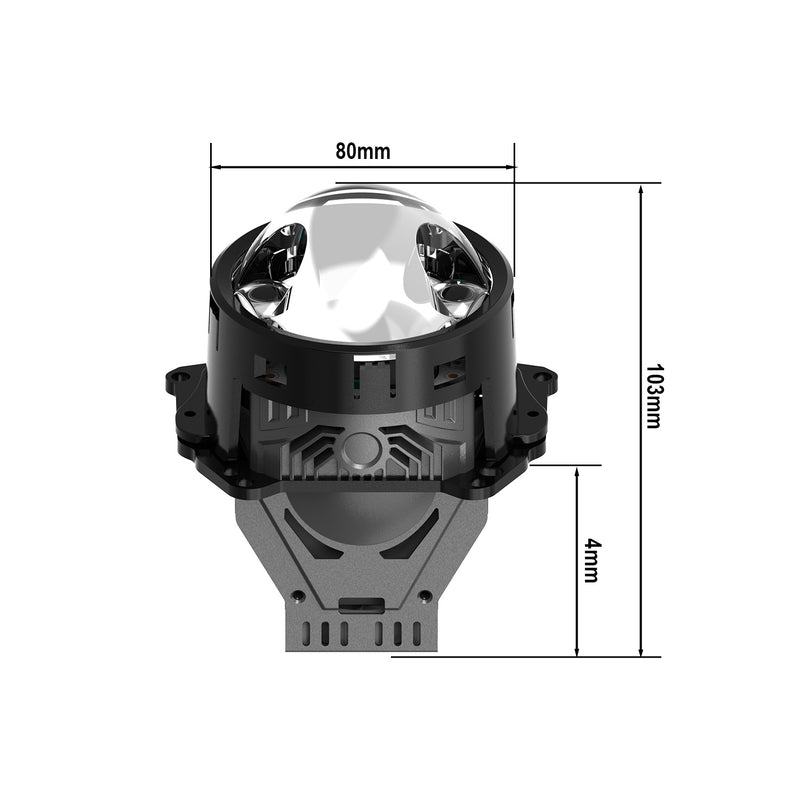

Dimensions and On-Vehicle Performance
