Product Specifications

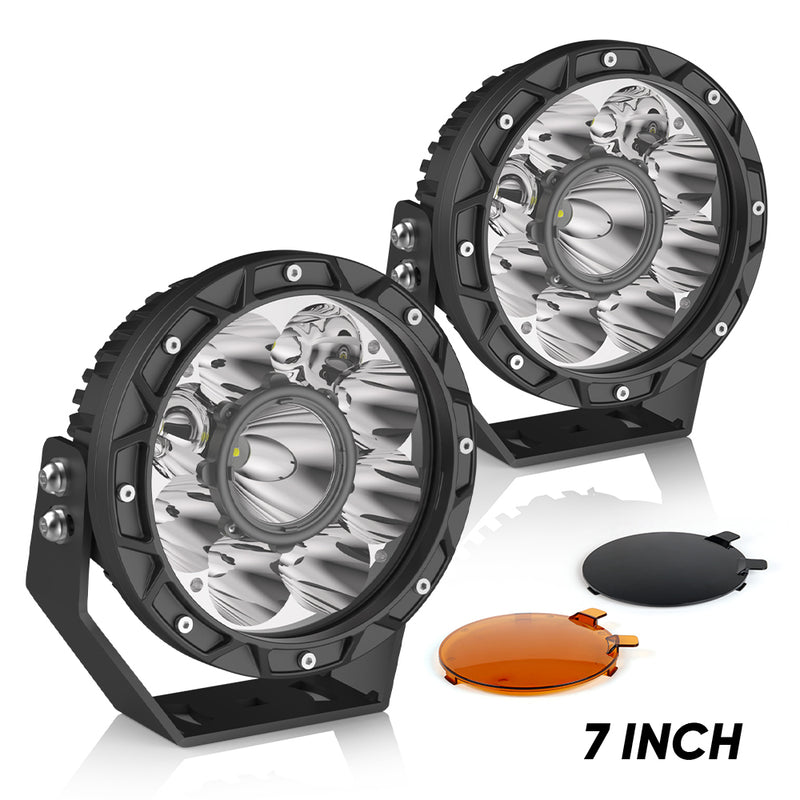

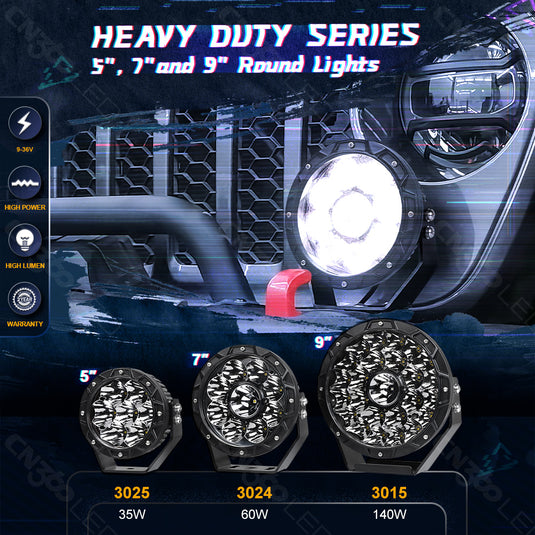

OGA 3024 7 Inch 60W LED Driving Lights • Spot Beam • IP67

The OGA-3024-60W-SPOT is a 7-inch heavy-duty round driving light designed for long-range reach and day-to-day durability. Each unit combines eight 5-watt Osram P8 emitters with a dedicated 20-watt center LED to concentrate output into a tight, road-cutting hot spot. Actual measured brightness reaches 4104 lumens with a peak of 6950 lux at 6.2 meters, delivering confident throw for trail spotting and highway distance. The color profile targets a clear white 5732 K ±500 K that helps pick out lane edges, ruts, and obstacles without harsh tint shift. A wide 9–36 V DC operating range and modest 3.45 A draw at 12.75 V make the lights compatible with passenger trucks, 4×4 builds, UTVs, and light commercial vehicles.

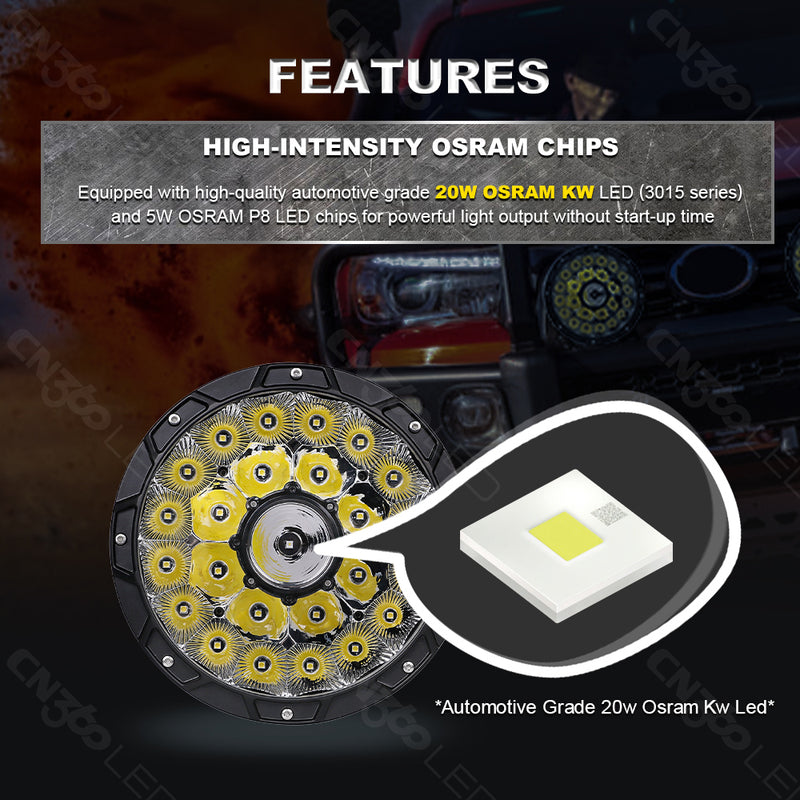

High-Intensity Osram LEDs

The light engine is built around Osram P8 chips, selected for high efficacy and stable chromaticity. Eight outer LEDs form the main ring while a powerful 20-watt center emitter increases candela in the middle of the beam. This arrangement balances punch and usable spill so drivers get a concentrated core for reach with sufficient peripheral fill to recognize hazards approaching from the sides.

High Lumen Output with Honest Measurements

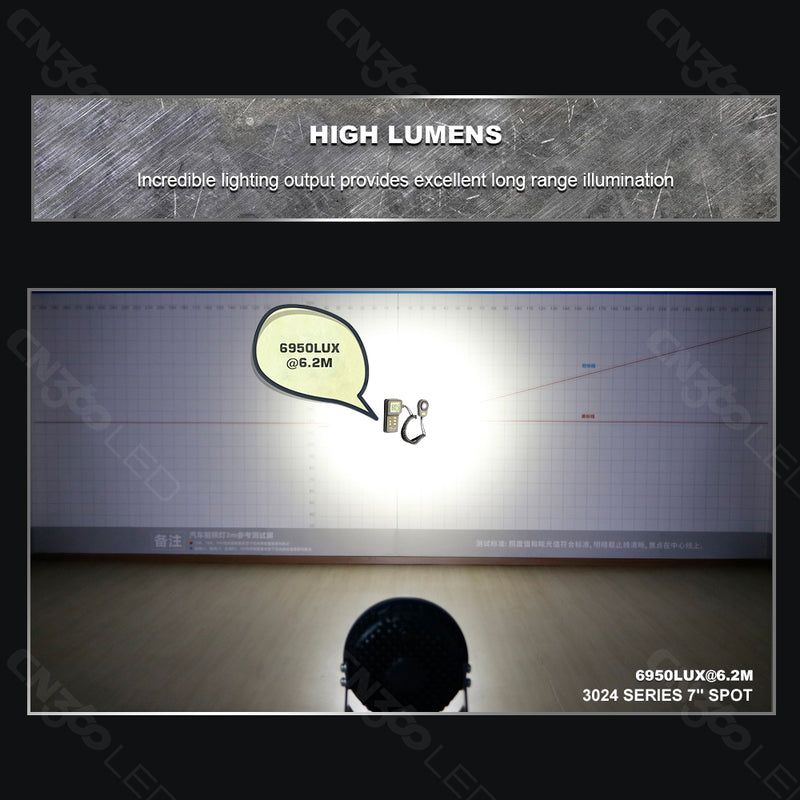

Performance figures are transparent and repeatable. The assembly is rated at 60 W ±10% and 5500 lm theoretical. Measured output of 4104 lm ±10% provides a realistic expectation for real-world brightness, while 6950 lux at 6.2 m indicates strong intensity for distance spotting, sign reading, and long straight-road runs. The tuned 5732 K white enhances contrast on asphalt, gravel, and dirt without excessive glare.

Real-World Beam Performance

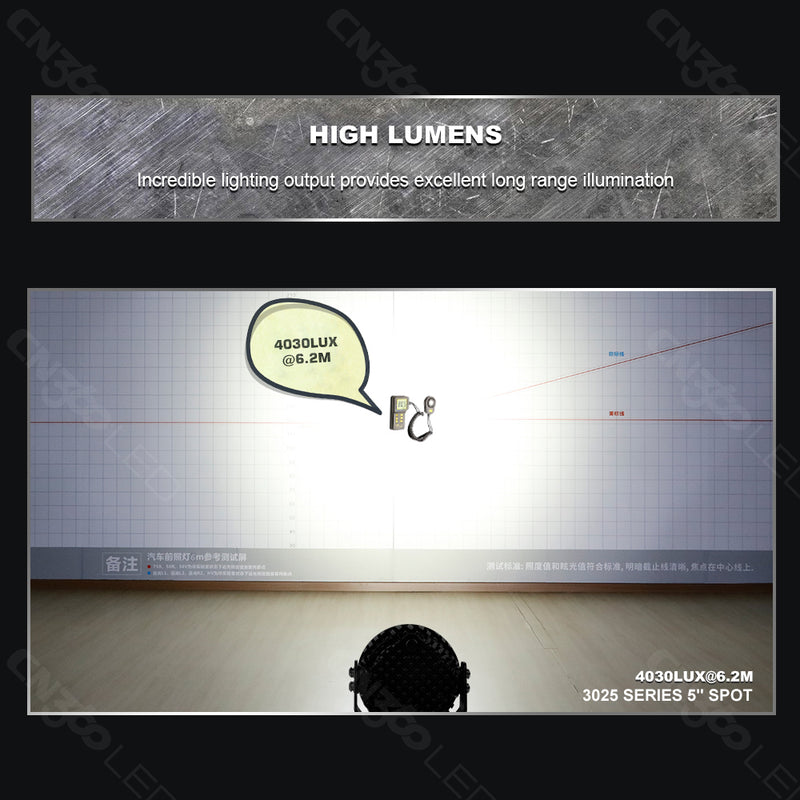

On-wall comparisons show a concentrated spot with a clean hotspot and controlled spill, ideal for pairing with fogs or wide beams. The pattern is designed to stack effectively in pairs, giving a symmetrical, long-throw output that stays consistent across vehicles with different mounting heights. Aim is easy to fine-tune to keep light on the road and avoid wasted glare above the horizon.

Durable Material Choices

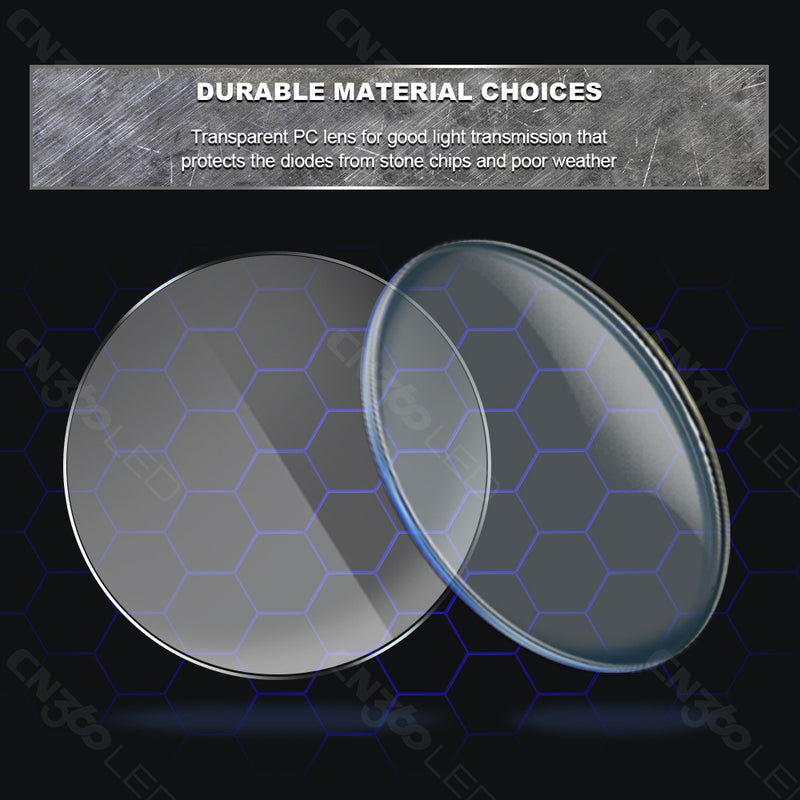

The front lens is offered in robust materials suited to off-road abuse, including impact-resistant polycarbonate and tempered glass options. Both are designed to hold clarity over time and resist scratching and pitting. The body uses a rugged alloy construction that shrugs off vibration and protects the optics and electronics during extended use on washboard tracks or rough job sites.

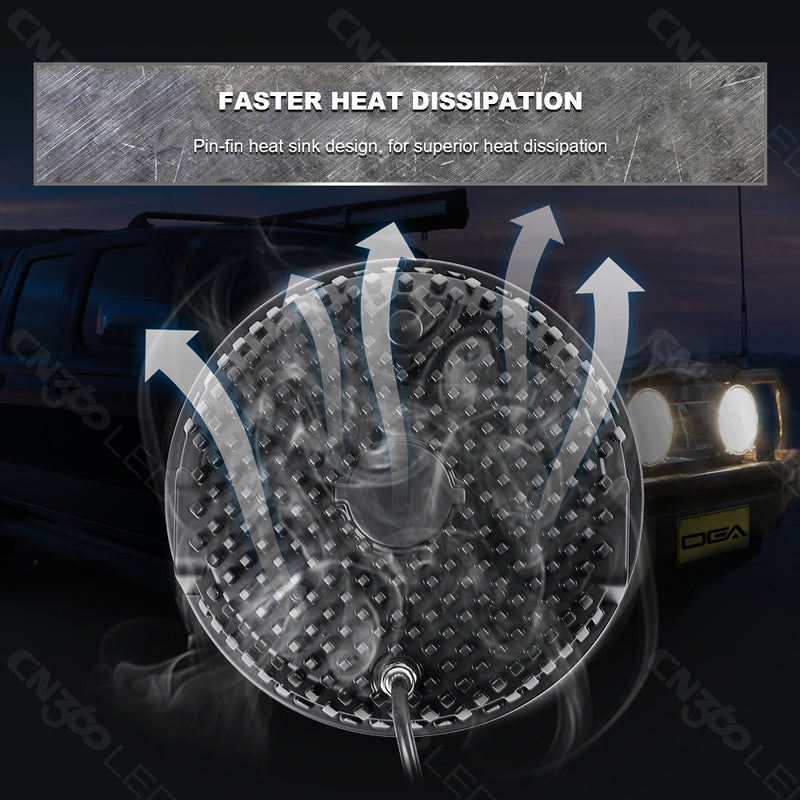

Faster Heat Dissipation

A finned aluminum heat sink moves heat away from the LEDs quickly so light output stays stable during long night runs. The thermal path is optimized to prevent thermal throttling, keeping intensity close to its peak even in warm climates or slow trail sections where natural airflow is limited. Consistent temperatures support LED longevity and color stability.

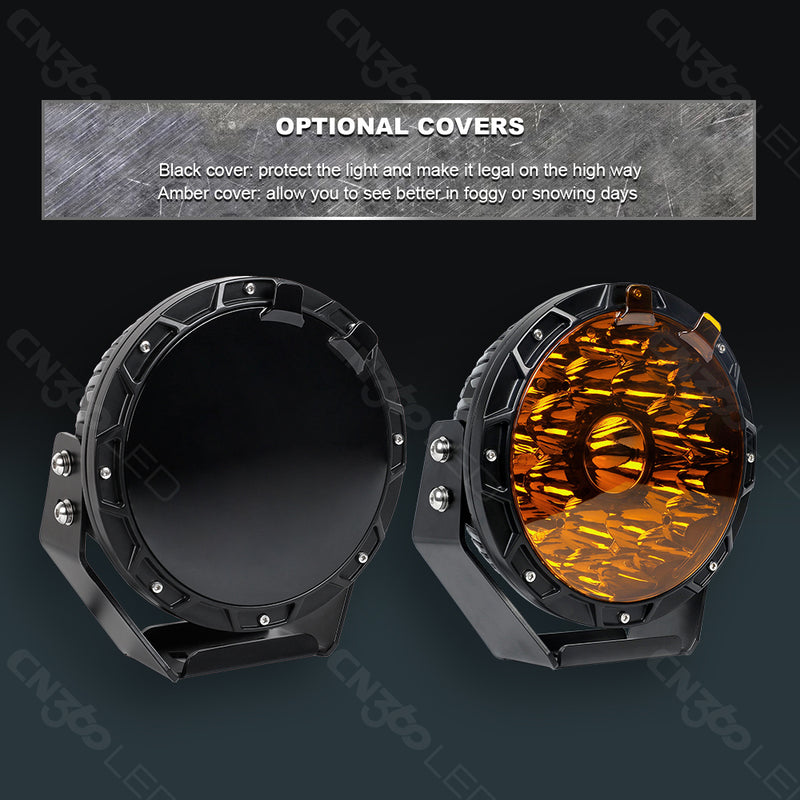

Optional Covers for Quick Adaptation

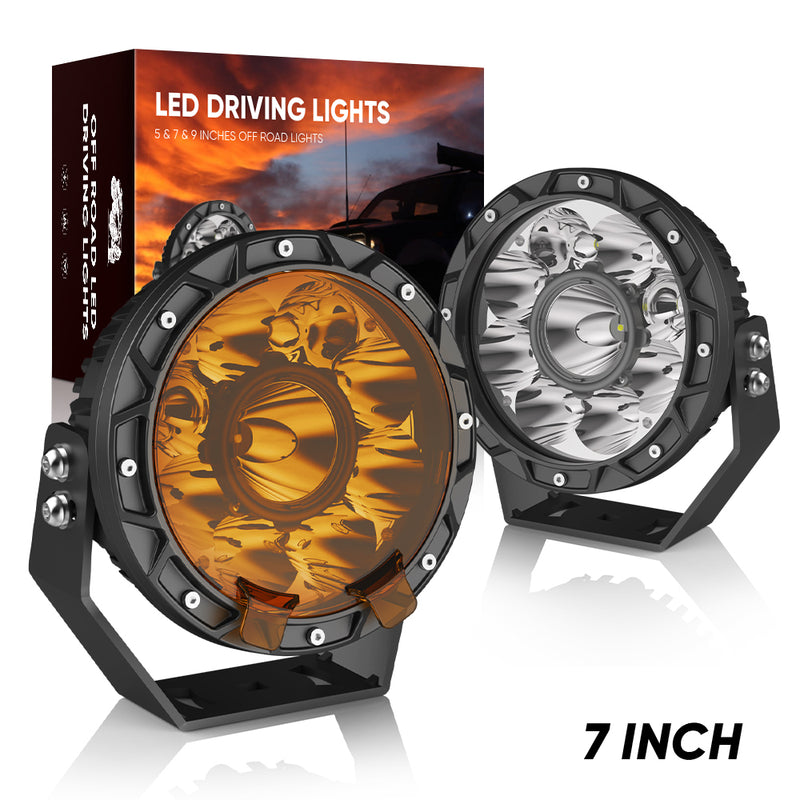

Snap-on covers let users tailor the light to the task and conditions in seconds. Clear and amber options are available, allowing you to switch appearance or improve contrast in dust, fog, or snow without changing the underlying lamp. Covers also add a layer of protection for the lens when vehicles are used in brushy terrain or gravel convoys.

Modern Design Suited to Many Builds

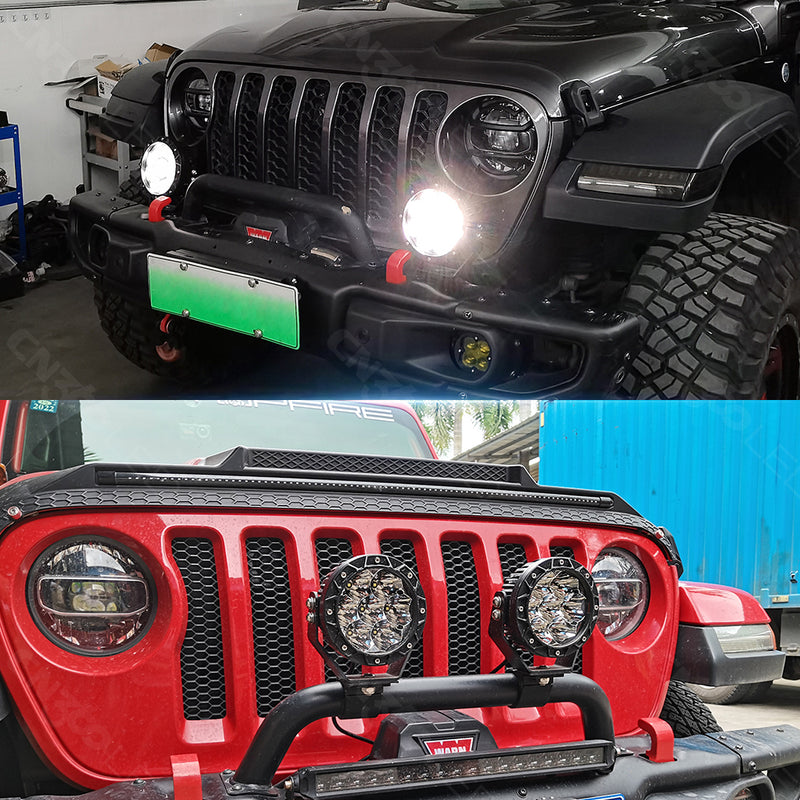

The round, open-face aesthetic pairs well with classic 4×4 builds and modern overlanding rigs alike. The face detail and compact depth help the lights integrate cleanly on bumper hoops, grille bars, roof racks, and A-pillars. With IP67 sealing, the lamps resist dust ingress and brief immersion, so rainstorms, crossings, and frequent washing are non-events. Wiring is straightforward thanks to the wide voltage range, allowing simple integration with relay harnesses and vehicle-specific switch systems.

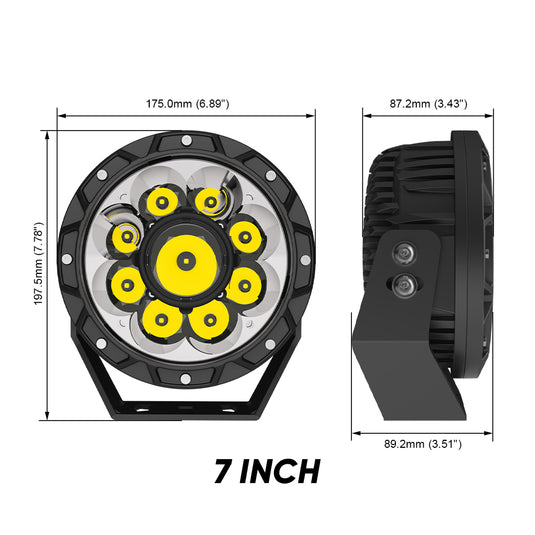

Dimensions and Fitment Planning

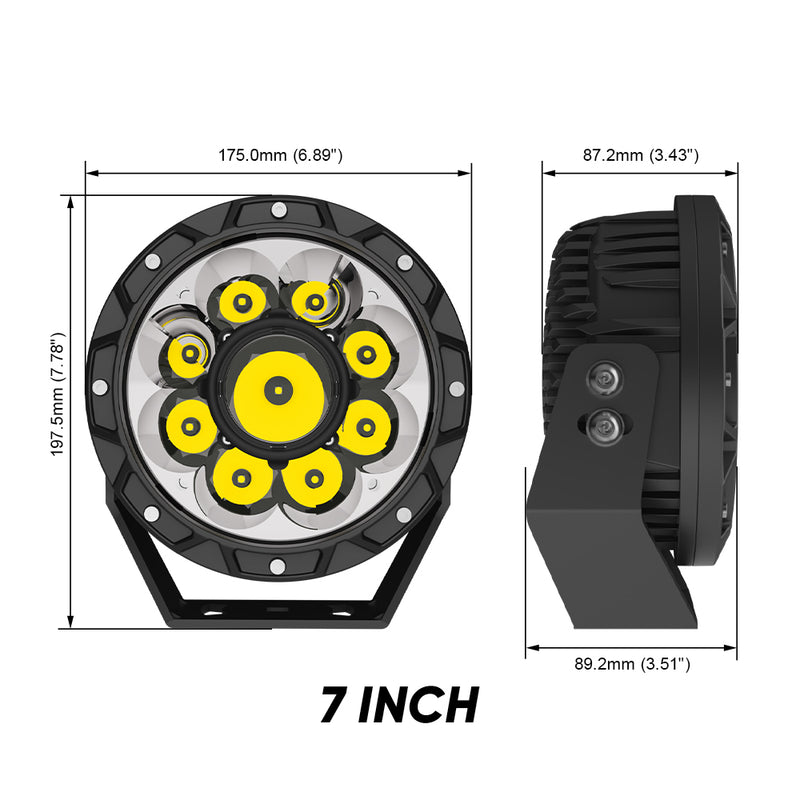

Each unit measures 6.88 × 3.51 × 7.77 inches. The modest depth simplifies placement in front bumpers and grille openings, leaving room for fairleads, winches, and intercoolers. The symmetrical housing makes left-right alignment easy when installing as a pair, and the bracket geometry supports precise vertical aiming to maximize throw while controlling glare. These details shorten install time for workshops and produce repeatable results across different vehicle platforms.

For users who need dependable long-range lighting in a proven 7-inch format, the OGA-3024-60W-SPOT combines Osram-driven intensity, robust materials, efficient cooling, IP67 protection, and quick-change covers—delivering the reach and reliability demanded by off-road enthusiasts, fleets, and professional upfitters.
