Product Specifications

Gen 1 LED Grille Lights Ultra Thin 12mm IP67 25W Modules White Yellow Tri Color

The 12 mm series hides cleanly behind tight grille slats while delivering road-ready output. Each module uses GC-7035 LEDs on a 10–30 V DC platform with a stable 25 W class drive. Models include LG1201-WHITE at 6500 K, LG1202-YELLOW at 3000 K, and LG1203-W+Y with selectable white, yellow, or a balanced 4000 K mixed mode. Honest, repeatable measurements back the performance: 427.30 lm (LG1201), 498.40 lm (LG1202), and 501.70/488.30/553.00 lm for LG1203 in W/Y/W+Y. Actual power is similarly transparent at 20.61 W, 20.19 W, and 20.38/20.53/18.49 W respectively.

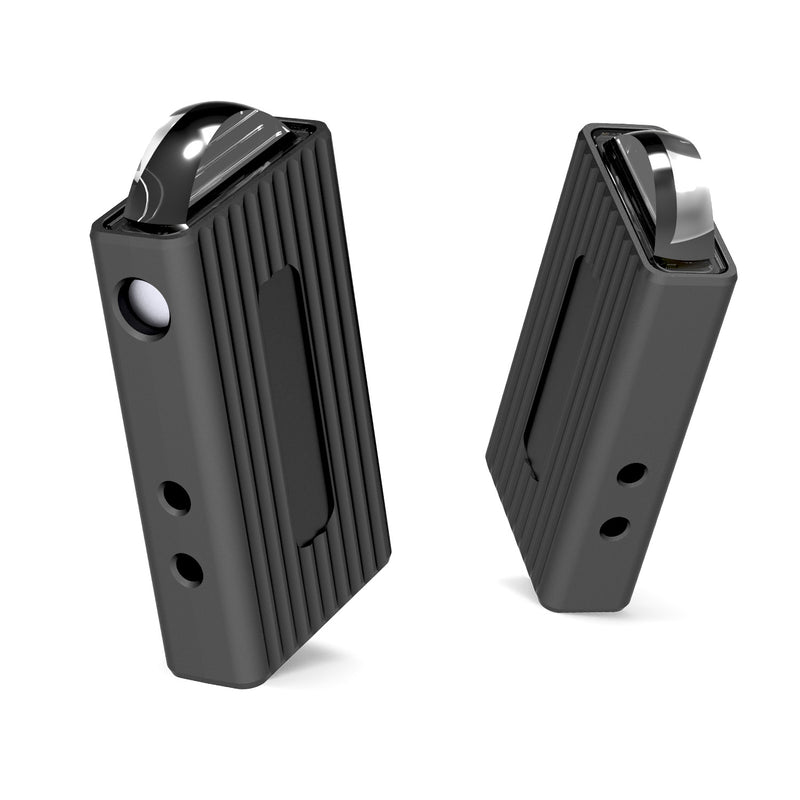

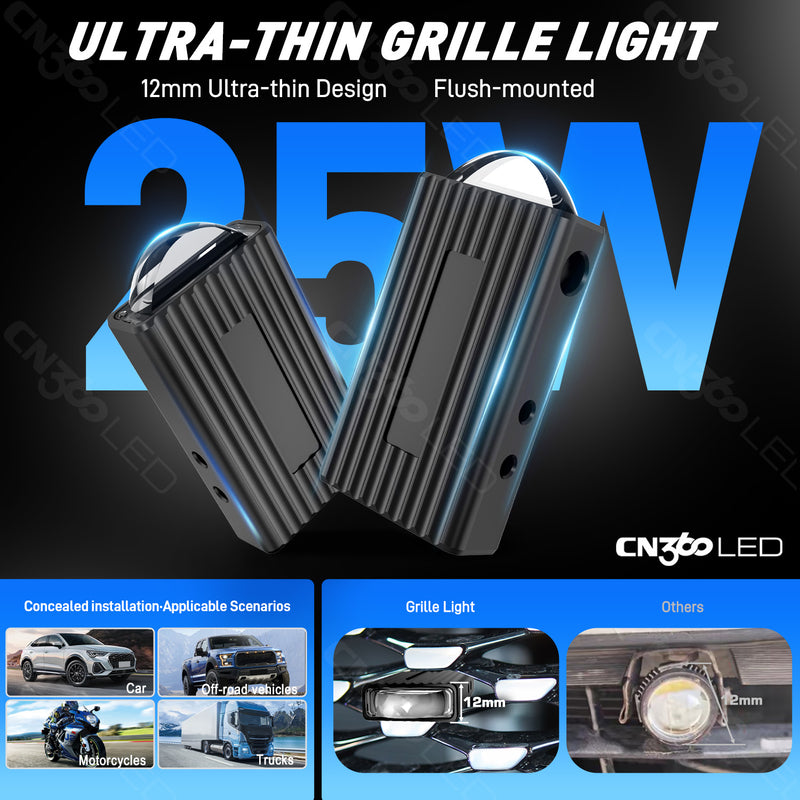

Ultra-Thin Housing and Mini Size

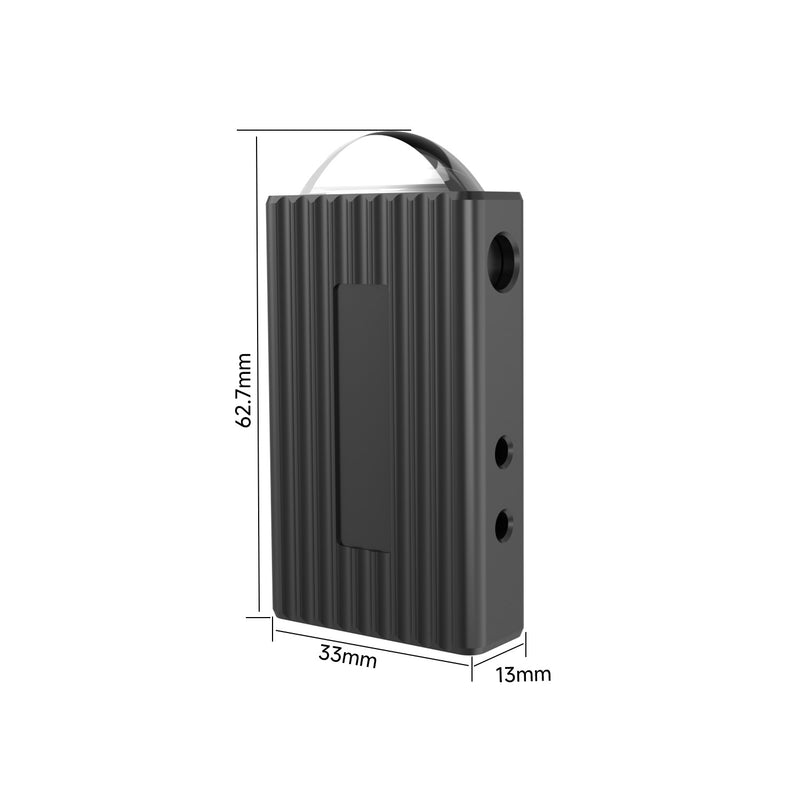

The 62.7 × 33 × 12 mm body is engineered for concealed installation. The shallow depth clears most grille meshes and narrow bumper openings so the lamps visually disappear while the beam remains fully effective. The compact form also helps with multi-module arrays because units align in neat rows without colliding with cross bars or ducts.

Stable 25 W Output with Real Lumen Data

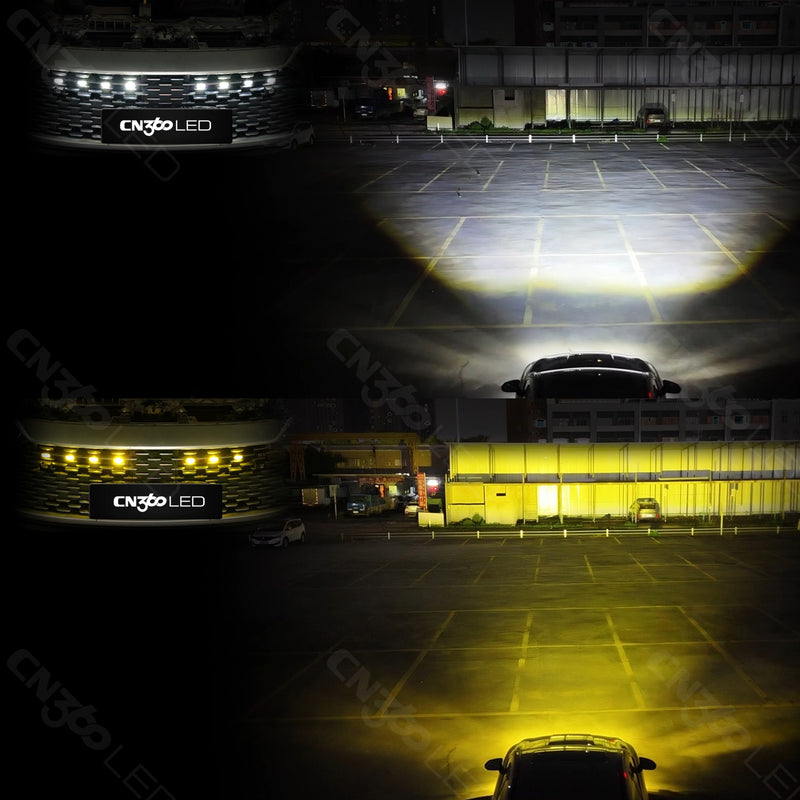

The drive architecture is tuned for steady brightness rather than peak-then-fade behavior. In testing, the 12 mm series holds practical output: 427.30 lm in white, 498.40 lm in yellow, and 553.00 lm in the 4000 K mixed mode when using LG1203. These figures make the color choice purposeful—white for clarity, yellow for fog and snow penetration, and mixed for balanced contrast.

Multiple Mounting Options for Clean Integration

The housing and bracket geometry support varied mounting positions shown in the graphic set. Behind-grille installs create a refined front signature; bumper recess installs spread light across the immediate road; side placements add peripheral fill. Straight housing sides simplify alignment so several modules can be aimed consistently across the fascia.

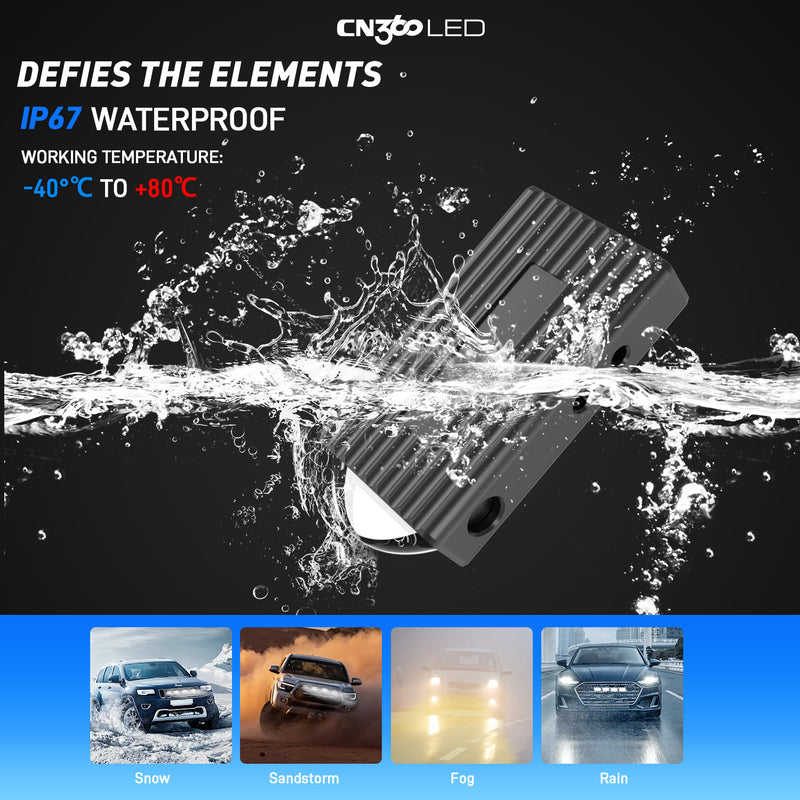

IP67 Waterproof with High-Efficiency Aluminum Heat Sink

The thermal design relies on a precision-machined 6061-T6 aluminum heat sink that conducts and disperses heat away from the GC-7035 LEDs to keep brightness stable during extended use—no moving parts required. The housing is sealed to IP67, blocking dust and withstanding rain, slush, and car-wash spray for dependable road performance. The working temperature range from −40 °C to +80 °C further reflects durability in real driving conditions, from winter starts to heat-soaked engine bays.

10–30 V Wide-Voltage Platform and Straightforward Wiring

The electronics accept 10–30 V DC, making the modules at home on 12 V passenger vehicles and 24 V commercial platforms. Typical current is 2.0 ± 0.6 A @ 9 V. Optional connector choices shown on the diagram support different harness strategies, while the simple two-wire hookup shortens install time.

Diverse Combinations and Varied Lighting Effects

Arrays can be built to suit the project: uniform white across the grille, full-amber yellow for foul weather, or alternating color patterns for a distinctive signature. Using the tri-color model allows a tunable color temperature across the same hardware, letting one SKU serve day-to-day driving and special-use visibility needs.

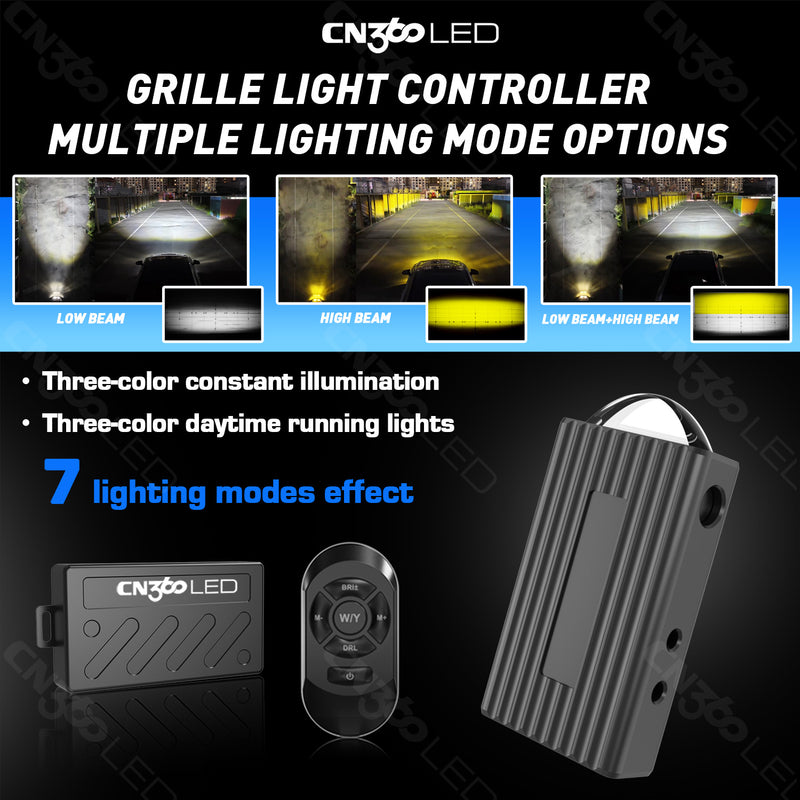

Seven Lighting Modes with Optional Controller

The control box shown on the feature panel unlocks seven selectable behaviors. That includes steady outputs and alternating patterns appropriate for auxiliary/show scenarios where regulations allow. Because modes are controller-based, installers can configure behavior without swapping hardware.

Tri-Color Precision for a Refined Grille Glow

The LG1203-W+Y architecture produces true 6500 K white, 3000 K yellow, and a balanced 4000 K mix from one module. The beam remains uniform across the lens so multi-unit rows glow evenly rather than appearing patchy. This is useful when the goal is both functional fill and a clean visual line through the grille.

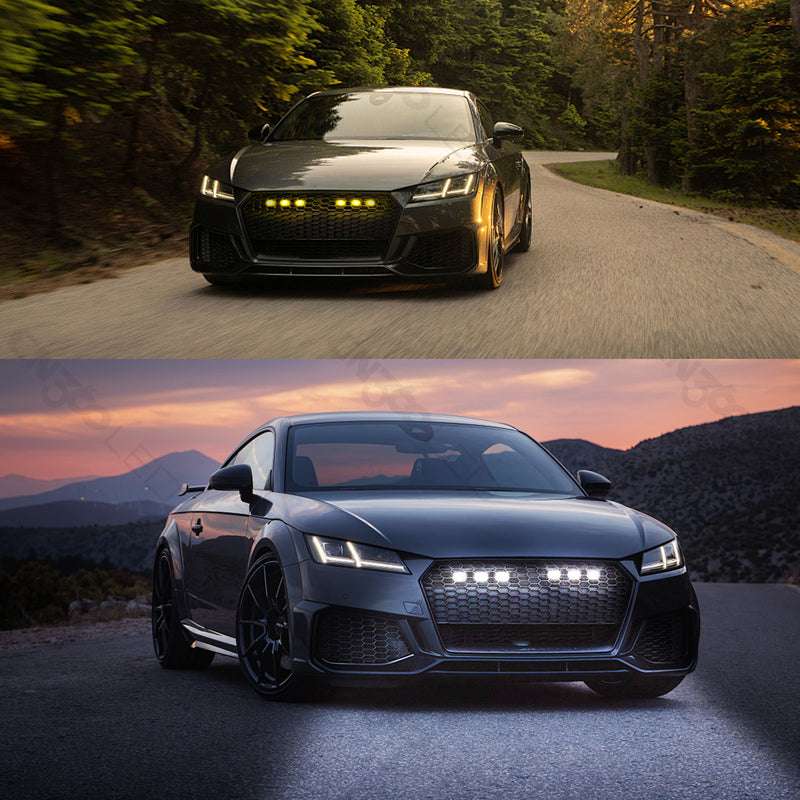

Concealed Installation Scenarios

Application images call out cars, motorcycles, off-road vehicles, and trucks. The slender body and simple wiring make the 12 mm series a good match for platforms where space is tight but forward visibility and a subtle signature are desired.

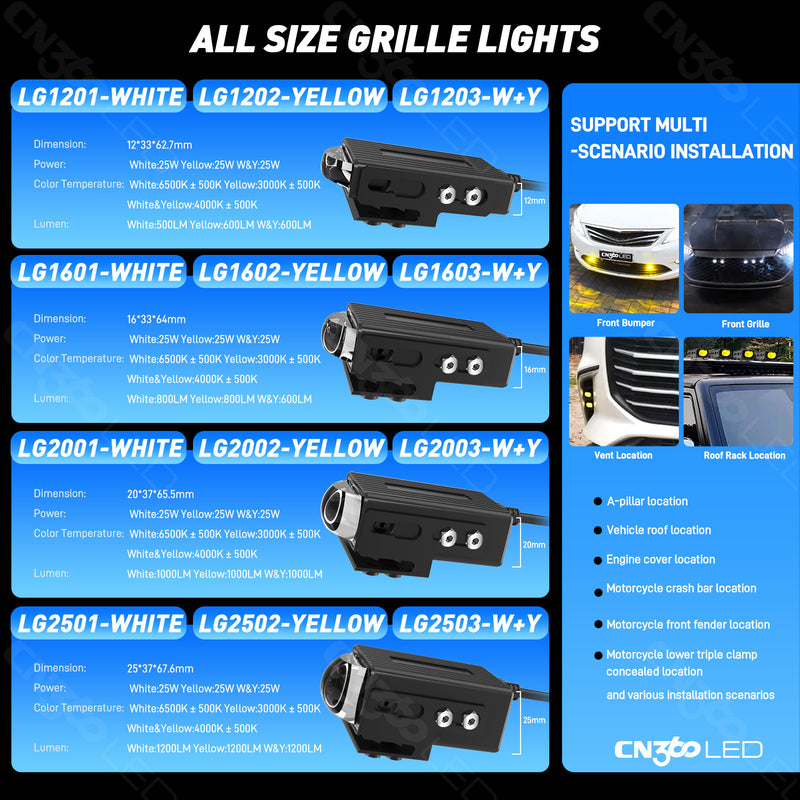

Dimensions and Model Options

All 12 mm units share the 62.7 × 33 × 12 mm footprint, GC-7035 LEDs, and 10–30 V DC input. Representative measurements: LG1201-WHITE 20.61 W and 427.30 lm; LG1202-YELLOW 20.19 W and 498.40 lm; LG1203-W+Y 20.38/20.53/18.49 W and 501.70/488.30/553.00 lm in W/Y/W+Y modes. We provide an 18-month warranty on all models.
