Product Specifications

W Series LED Work Lights with 3D Halo DRL Amber Backlit

Engineered for real-world performance and styled to stand out, the W Series LED work lights combine compact housings, clean optics, and a distinctive 3D halo DRL. The family spans three practical sizes—3-inch, 4-inch, and 5-inch—so builders can match output and footprint to any bumper opening, A-pillar, roof rack, or utility mount. Every model accepts 10–30 V DC for seamless use on 12 V passenger vehicles and 24 V commercial platforms, and every model is sealed to IP67 with an aviation aluminum heat sink for dependable, thermally stable brightness. Main beams run at a crisp 6000 K white for maximum contrast, while the integrated amber backlit glows at 1800 K to create a premium signature look for daytime recognition or low-glare campsite light.

Powerful Work Light • Built to Perform

Under the hood, the W Series uses high-efficacy main emitters paired with purpose-cut reflectors and lenses to produce road-useful beams rather than inflated spec-sheet numbers. Effective lumen ratings are measured and repeatable: the 3-inch class delivers up to 1600 lm in flood and 1315 lm in spot; the 4-inch class steps up to 3588–3614 lm; and the 5-inch class pushes 4801–4943 lm in flood and over 3900 lm in spot. Lux at 10 m proves the throw: from 505 lux (3" spot) and 1111–1300 lux (4" spots) all the way to 1830–1860 lux on the 60 W spot models. That's the difference you feel on trail—longer reach and clearer definition at usable speeds.

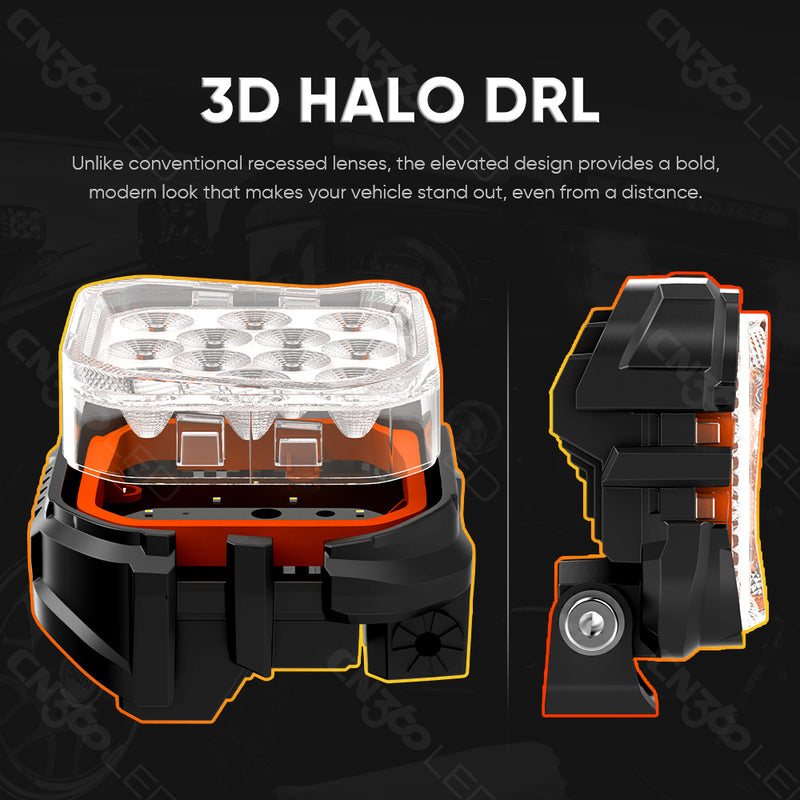

3D Halo DRL • Signature You Can See

The 3D halo DRL forms a vivid amber outline around the optical stack, delivering an unmistakable presence even before the main beam fires. At 1800 K, the halo reads warm and authoritative, doubling as a courtesy or camp light when you want glow without glare. Wire the halo on its own circuit for independent control, integrate it with parking lamps for an OE-style signature, or trigger it with accessory power for automatic day-night behavior.

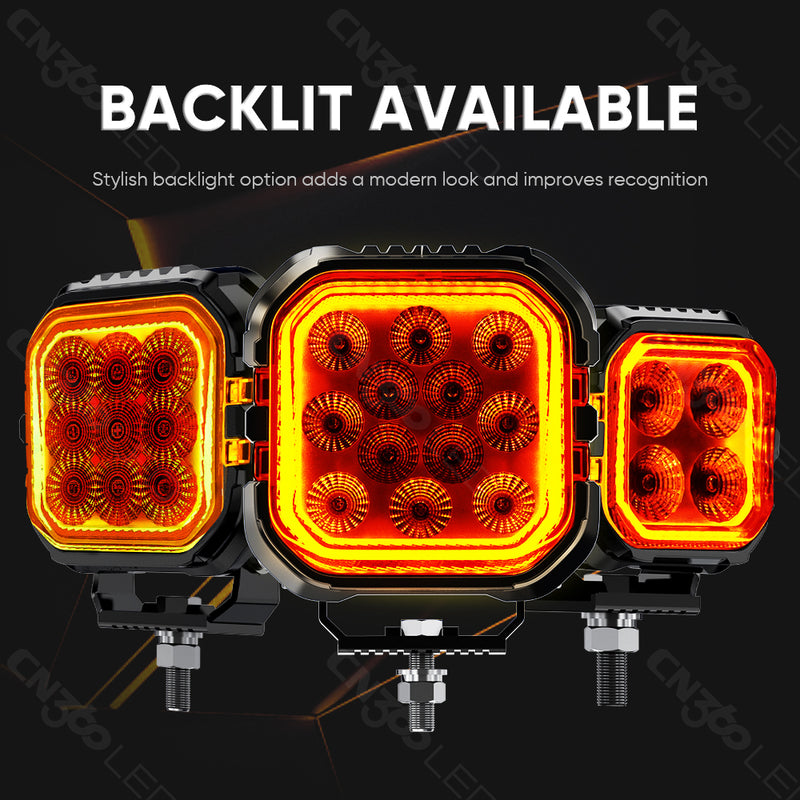

Backlit Available • Amber Accent Across All Sizes

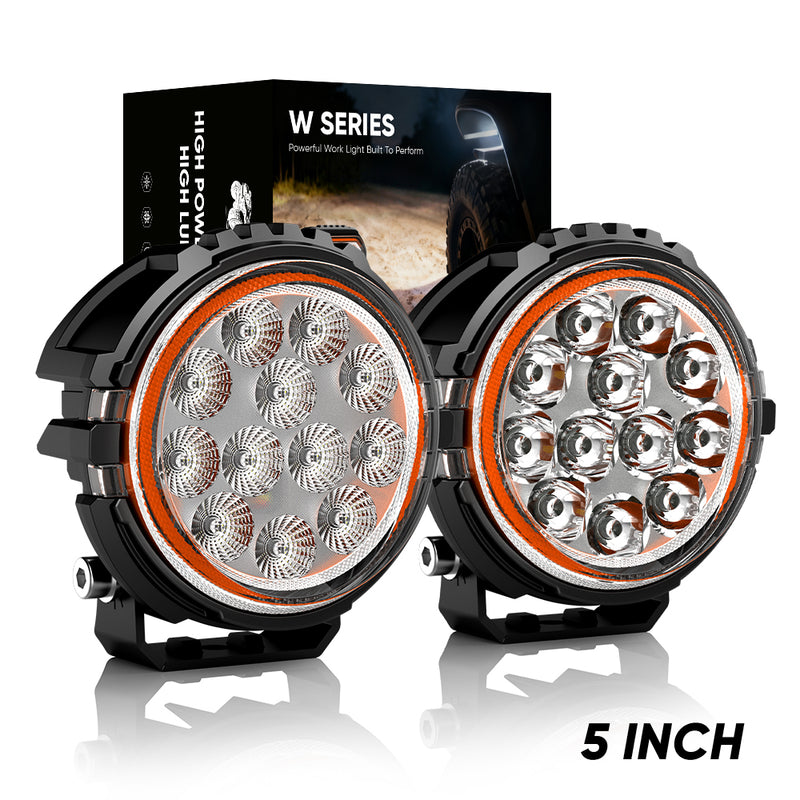

Every W Series size offers the amber backlit option, so you can maintain a consistent brand signature whether you deploy compact 3" cube pairs on an ATV, 4" rounds on a work truck, or 5" high-output squares on an overland rig. The halo's optical path is tuned to appear uniform and continuous—no patchy hotspots—so multi-light arrays look premium up close and coherent from distance.

Performance Tiers • 20W • 35W/45W • 60W

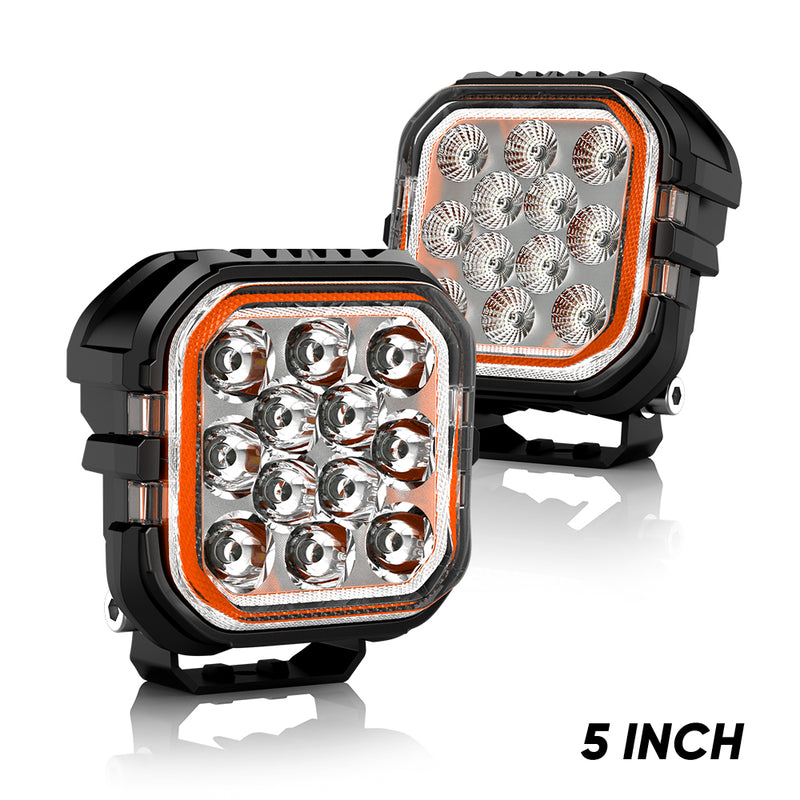

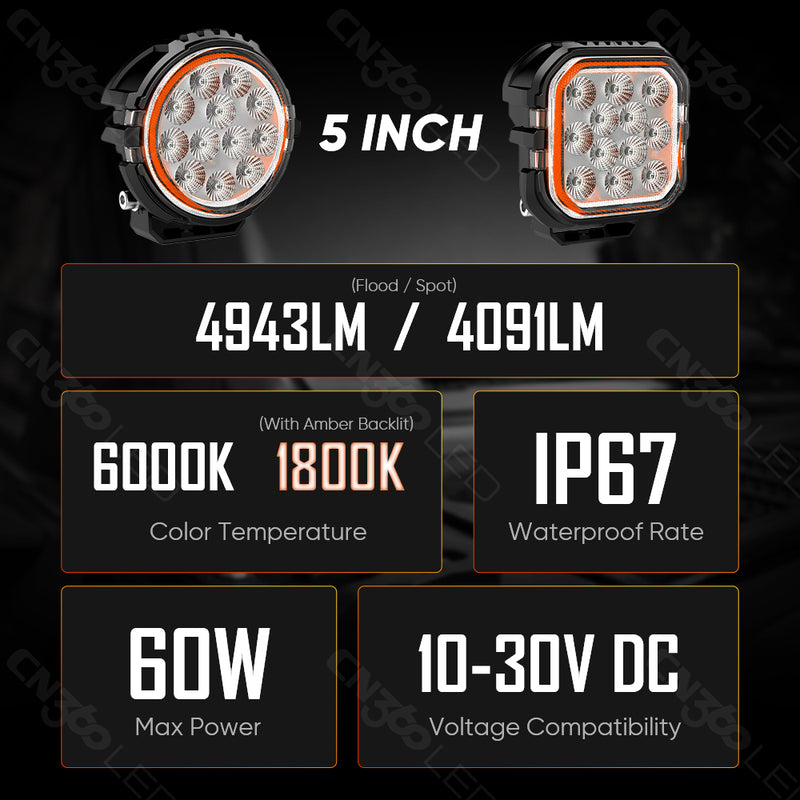

3" Class (20 W): Choose square or round, spot or flood. Effective output is 1315 lm (W3020ALS spot) with 505 lux @10 m, 1600 lm (W3020ALF flood) with 33 lux, 1247 lm (W3120ALS spot) with 464 lux, and 1553 lm (W3120ALF flood) with 35 lux. 4" Class (35/45 W): Square 45 W versions deliver 3614 lm spot at 1300 lux and 3588 lm flood at 66 lux. Round 35 W versions produce 2853 lm spot at 1111 lux and 2701 lm flood at 46 lux. 5" Class (60 W): Round 60 W measures 3939 lm spot at 1830 lux and 4801 lm flood at 91 lux; square 60 W posts 4091 lm spot at 1860 lux and 4943 lm flood at 92 lux. These are real, road-relevant numbers that translate to confident hazard detection and broad, even work-zone illumination.

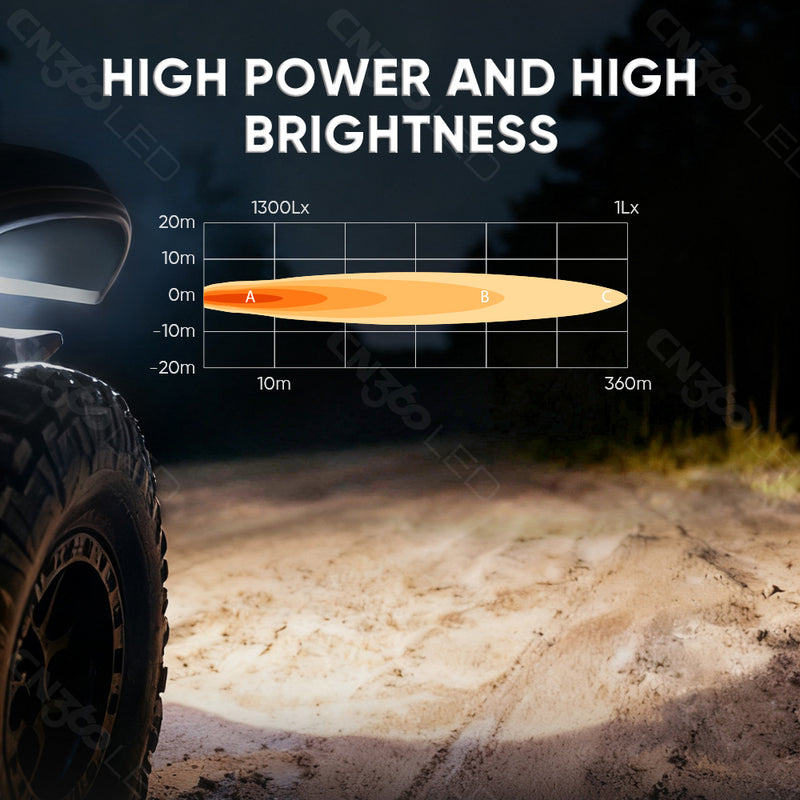

High Power and High Brightness • Clean Beam Geometry

Brightness is nothing without control. The W Series optics are designed to concentrate energy where it helps most. Spot patterns keep a tight, high-intensity core that reaches down-trail without excessive spill, while flood patterns emphasize a wide, uniform carpet with gentle falloff to the sides—ideal for job sites, snow service, and technical driving. The 6000 K beam color maintains crisp edge definition on terrain changes, snow banks, and trail obstacles so your eyes relax and your reactions stay fast.

Beam Choices • Spot for Distance • Flood for Coverage

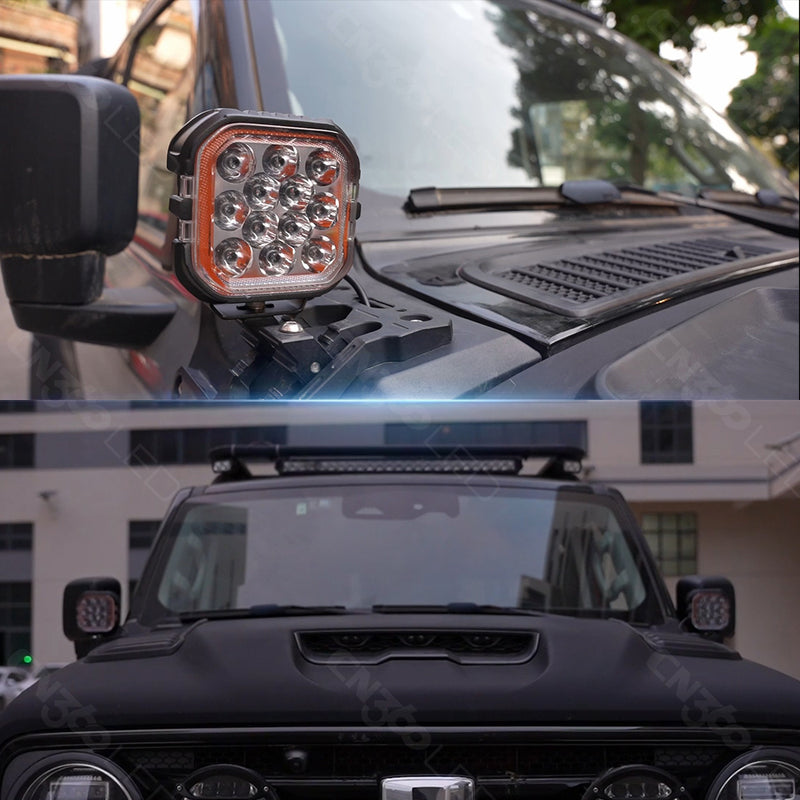

Pick Auxiliary Spot Light variants when you need range and speed—A-pillar pairs for desert pre-running, roofline center pods for scanning, or bumper-level spots to pierce misty mornings. Choose Auxiliary Flood Light models for slow-speed maneuvering, plow operations, towing, recovery, and campsite setup. Many builders mix patterns: spots high for throw, floods low for foreground fill. The consistent form factors mean your arrays align neatly across grilles and racks.

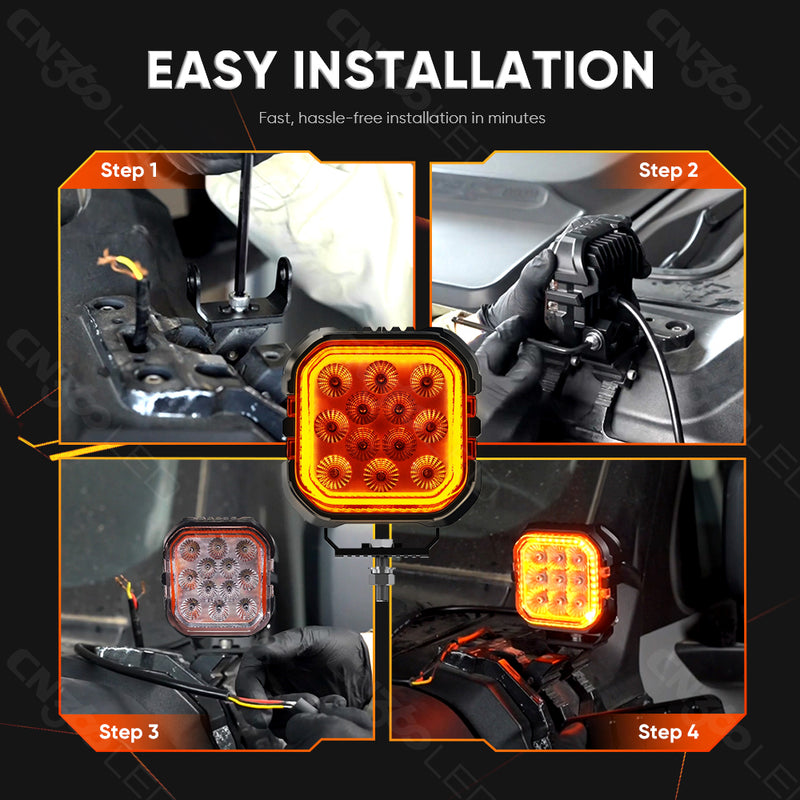

Easy Installation • Compact Depth and Generous Tilt

Short overall depth (as little as ~1.85–2.81 in depending on model) clears tight grille pockets and minimizes roof-rack overhang. Universal brackets provide broad tilt range for precise aiming, and the straight-sided housings align cleanly in rows. Electrical hookup is simple: a two-wire main for the 10–30 V DC beam and a separate pair for the halo if you want independent control. Typical draws are friendly to factory or aftermarket circuits—about 1.45–1.54 A for 20 W models, 2.60–3.45 A for 35/45 W, and 4.39–4.63 A for 60 W.

Waterproof • Dustproof • Built for the Road

All housings are sealed to IP67, shrugging off rainstorms, water crossings, wash-downs, and talc-fine dust. The thermal architecture centers on an aviation aluminum heat sink with efficient finning to keep LED junction temperatures in check, limiting color shift and lumen sag during long runs. Rated operating temperature from −40 °C to +80 °C means reliability from winter pre-dawn to mid-summer recovery work.

Packaging • Dealer and Fleet Friendly

Each SKU ships with clear labeling and protective inserts, optimized for shelf storage and parcel shipping. Carton quantities are tailored to streamline wholesale replenishment and fleet upfitters' staging, minimizing handling while protecting the optics and finishes.

Dimensions • Fits Where Others Don't

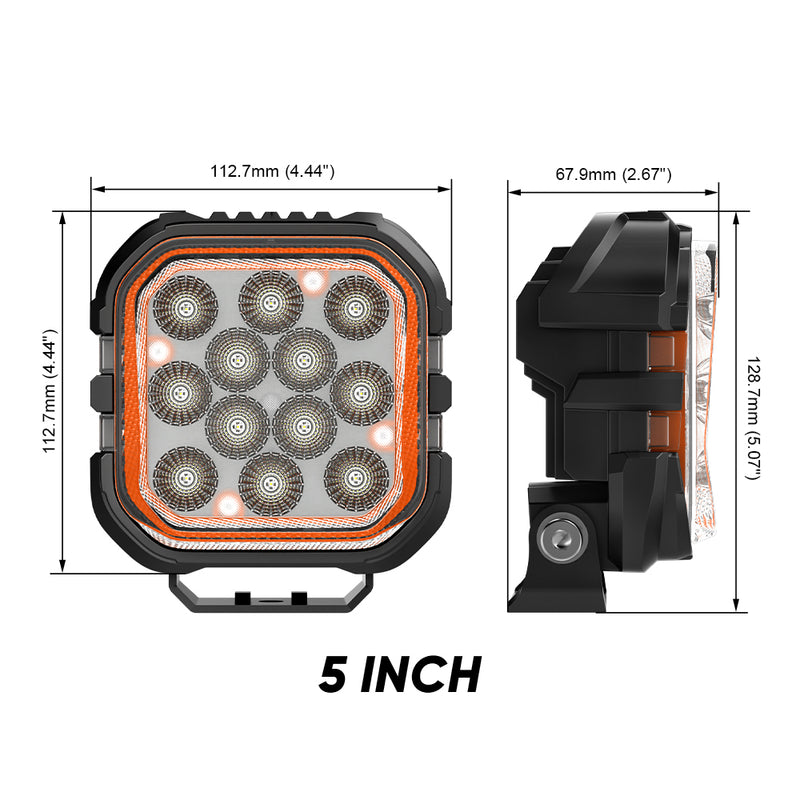

3" housings: 2.85 × 1.98 × 3.31 in (square) or φ3.18 × 1.85 × 3.53 in (round). 4" housings: 3.78 × 2.27 × 4.44 in (square) or φ4.16 × 2.17 × 4.52 in (round). 5" housings: 4.44 × 2.67 × 5.07 in (square) or φ5.22 × 2.81 × 5.53 in (round). These compact dimensions make the W Series easy to package in stealthy installs and multi-unit arrays.

Certification • Confidence for Builds That Matter

Designed for low-interference operation and robust mechanical integrity, the W Series meets the needs of retail builds, specialty upfits, and light-duty fleets. Pair the proven optics and measured output with IP67 sealing and aluminum thermal hardware, and you have lights that work hard, look premium, and install cleanly.

Bottom line: the W Series brings a consistent experience across sizes—signature 3D halo DRL, honest lumen and lux performance, broad 10–30 V compatibility, IP67 durability, and an aviation aluminum heat sink that keeps brightness steady. Whether you're assembling a subtle 3" pair for a compact grille or a high-impact 5" array for long-range visibility, these lights deliver the power, control, and style your build deserves.
