Product Specifications
| ITEM | 5KG12-7443-W |
| OUTPUT (mA) | H: 480 ± 20mA L: 120 ± 20mA |
| LUMENS | H: 660LM L: 165LM |
| CHIPS | SMD3020 |
| VOLTAGE | DC 9-16V |
| LED QUANTITY | 12PCS |
| COLOR TEMP. | WHITE |
| APPLICATION TEMP |
-40℃~+85℃ |
| REAL LIFESPAN |
>15,000 HOURS |
| USAGE | BRAKE LIGHT, PARKING LIGHT AND STOP LIGHT |
High-Efficiency LED Bulb with Advanced Heat Dissipation
LED Chip
This product features the SMD3020 1W LED chip, which is known for its high luminosity of 120LM/W. The chip is designed for better heat resistance and a focused light beam pattern, ensuring optimal performance.
LED Chip PCB
The LED chip PCB is made entirely of aluminum, which is superior to fiberglass in terms of heat dissipation. In fact, the aluminum substrate disperses heat 300 times more efficiently, prolonging the lifespan of the LED chip.
Bulb Body Structure

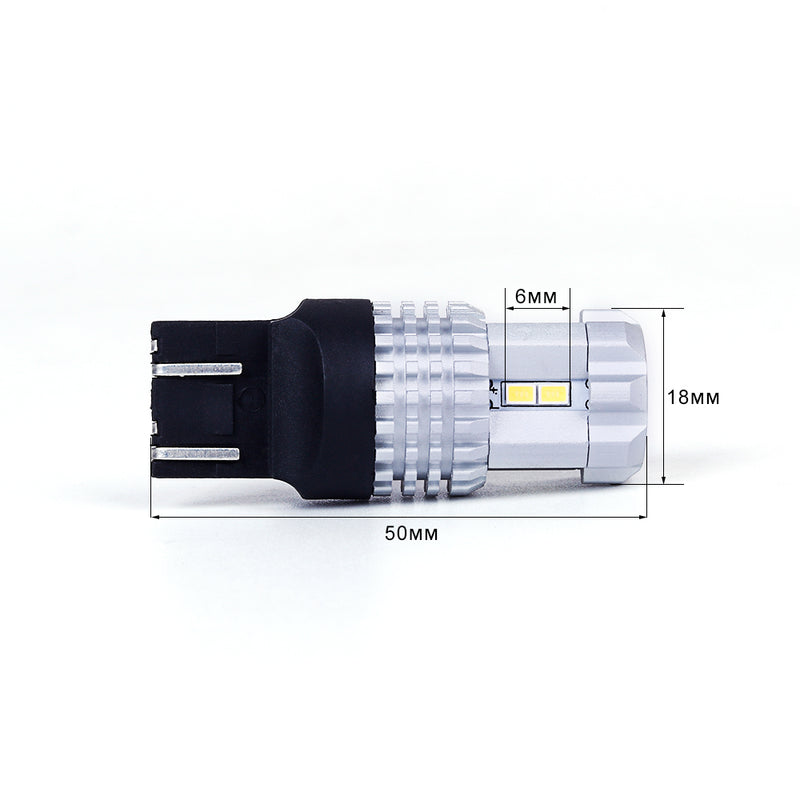

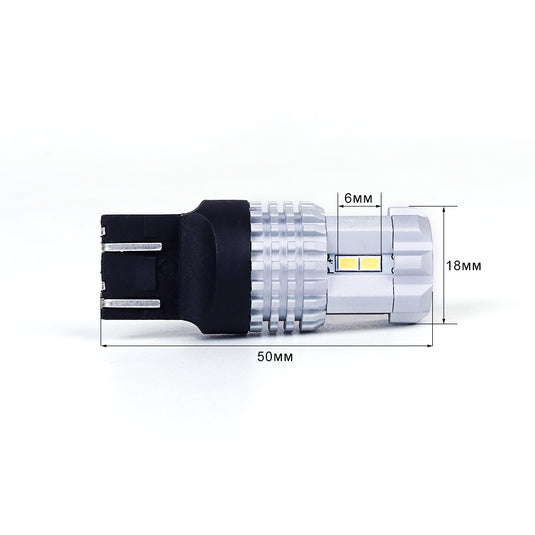

The bulb's dimensions are nearly identical to those of an OEM halogen bulb, making it easy to replace without any modifications needed. Its plug-and-play design ensures a hassle-free installation process.
Driver
The LED bulb comes with a built-in PCB driver and a constant current IC. These features prevent the LED bulb from burning out, ensuring a stable performance over time. Please note that this product does not support canbus systems. LED decoders and load resistors are sold separately. This product is designed for wholesalers and is not intended for end users.
