TC1 Mini Projector Lens LED Headlight Bulb

Key Features

• Optical lens with built-in cooling fan for crisp, concentrated output
• Instant start for immediate full brightness when switching beams
• Strong road penetration with reflective-cup optics and projector focus
• Efficient cooling via high-speed fan and aluminum alloy heat sink
• Waterproof and dust-proof design for stable night and all-weather use
• Private-mold structure with high-power modular LED chips for a refined beam pattern
• Low beam shows a sharp, clean cutoff with wide, even road coverage
• High beam is tightly focused for long-range illumination with no dark areas
• Clear upgrade over halogen in both low and high beams; brighter, more concentrated light
• Certified compliance (CE/RoHS) for dependable global use

In stock and ready for shipping

Worry-Free Warranty

CE & RoHS

OEM/ODM Services

Product Specifications

ITEM
TC1-H4
USAGE
Headlight (Dual Beam)
RATED POWER
High: 50 W/bulb
Low: 35 W/bulb
OPERATING VOLTAGE
DC 10–60 V
COLOR TEMPERATURE
6500 K
LUMEN OUTPUT
Up to 4000 lm
LED CHIP
Modular LED chipset
OPTICS
Built-in optical lens +
reflective cup
COOLING
High-speed fan +
aluminum alloy heat sink
MATERIAL
High-density aluminum alloy
OPERATING TEMP.
-40 °C ~ +80 °C
CERTIFICATION
CE / RoHS

TC1 Mini Projector Lens LED Headlight • H4 Dual Beam

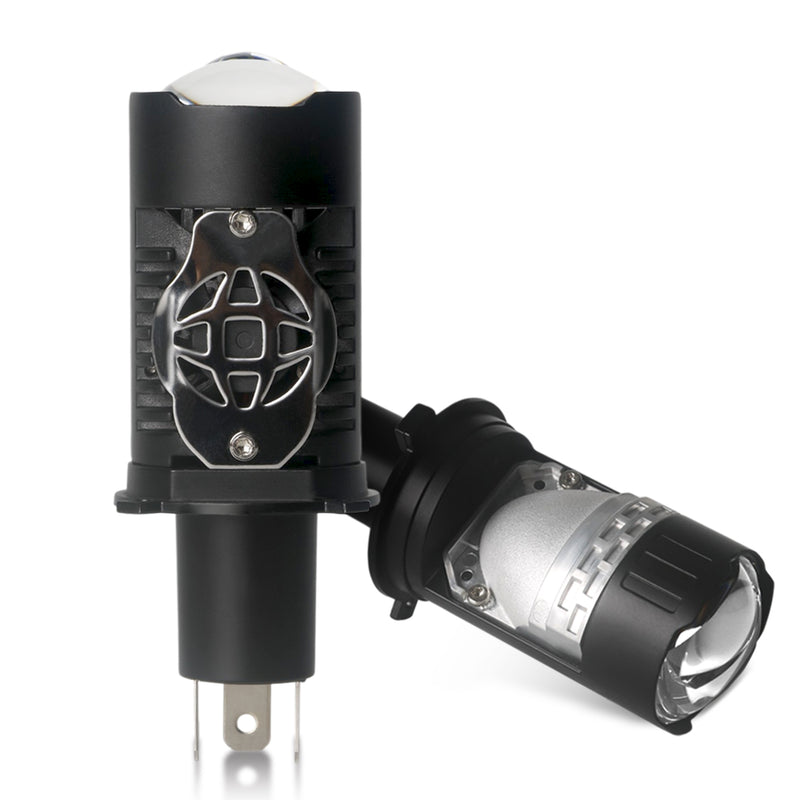

TC1 is a compact projector-style LED headlight engineered for real road use. The front optic integrates a built-in lens with a reflective cup, and a cooling fan is positioned behind the light engine. This arrangement concentrates the beam and helps keep brightness stable during extended night driving. From the moment you switch on, the lamp reaches full output instantly, so beam changes between low and high are immediate and clean.

projector LED headlight

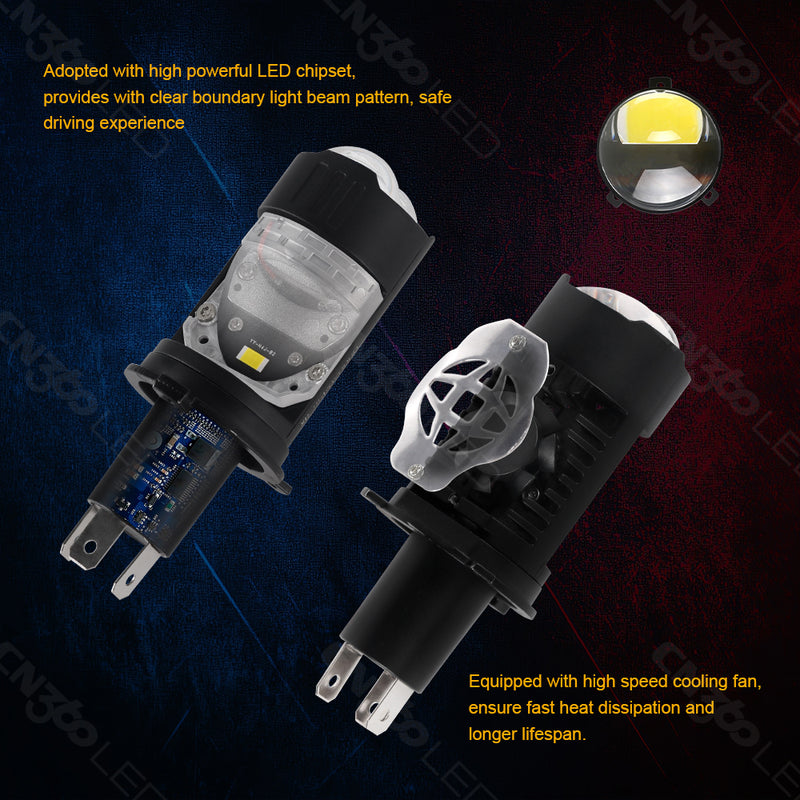

The lighting core uses a modular high-power LED chipset. Working with the projector lens, TC1 forms a refined beam pattern. The low beam is tuned for everyday traffic with a clear, straight cutoff; the high beam is tightly focused for long-range visibility on highways and open roads.

high-power LED chipset

Cooling is handled by a purpose-built system consisting of a high-speed fan and an aluminum-alloy heat sink. Air moves across the light engine to remove heat quickly, helping the LEDs run at a stable temperature. The housing uses high-density aluminum alloy for strength and efficient thermal conduction, supporting stable brightness and long service life in daily commuting, intercity runs, or light off-road use where airflow can be limited.

Weather protection is integral to the design with waterproof and dust-proof construction, so rain, road spray, and dusty conditions won’t easily interrupt your drive. Electrical robustness covers a wide operating range of DC 10–60 V, suitable for both 12 V passenger vehicles and 24 V commercial platforms. The rated color temperature is 6000–6500 K for a neutral-white appearance that enhances sign contrast and lane-line visibility at night. Reference brightness is up to 4000 lm, providing a confident step up from halogen.

As a private-mold product, TC1’s mechanicals and optics are purpose-designed. The LED layout aligns with the projector’s optical center to keep the luminous point precise, which helps produce a neat low-beam cutoff and a strong, narrow high-beam hot spot. The reflective-cup refraction process is designed to avoid dark areas and astigmatism, resulting in fewer distracting bright and dim patches and more usable light on the road.

The TC1-H4 variant combines these elements in a dual-beam form factor. Rated output is 50 W on high beam and 35 W on low beam at 6500 K, with an operating voltage of DC 10–60 V. Typical dimensions are approximately Ø37.7 mm body diameter, about 107.9 mm overall length, and a base width near 43 mm, helping the lamp fit where space behind the dust cover is limited.

On the road, the low beam presents a clean horizontal cutoff with wide pavement coverage, while the high beam forms a concentrated spot with strong forward reach. Compared with halogen, both near-field and long-range visibility improve while stray glare is reduced, supporting safer nighttime driving for both the driver and oncoming traffic.

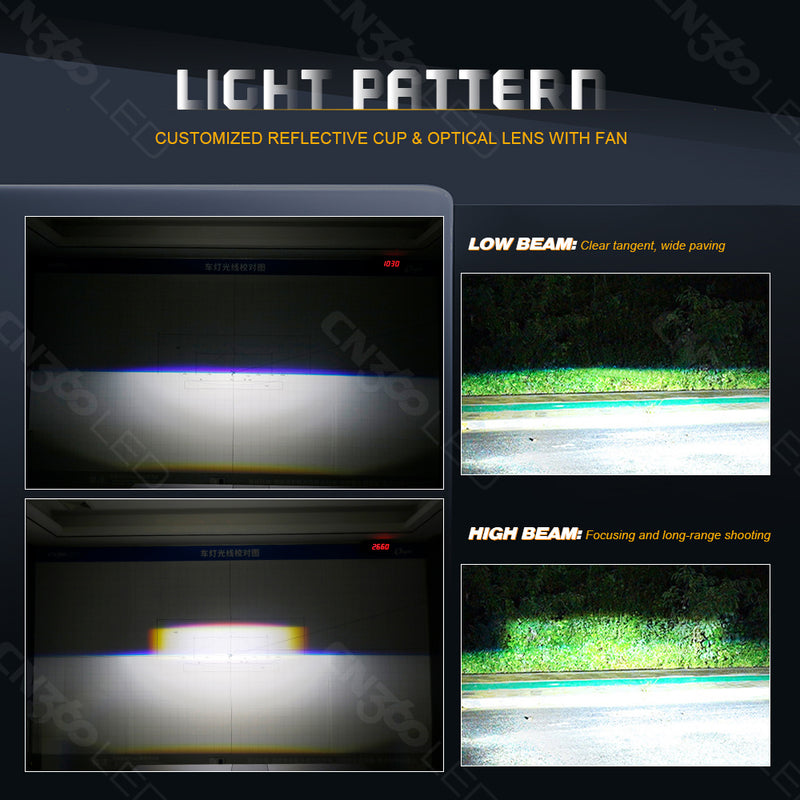

projector headlight bulb beam patterns

projector headlight bulb beam patterns

TC1 complies with CE and RoHS and is engineered for reliable operation from −40 °C to +80 °C, handling winter cold starts and summer heat soak. Taken together—the projector lens, private-mold LED engine, fan-assisted aluminum cooling, sealed construction, and well-controlled beam—the TC1 mini projector LED headlight is a precise, durable upgrade for vehicles that use the H4 socket and need a balanced blend of sharp cutoff, long-range reach, and day-to-day reliability.
