Product Specifications

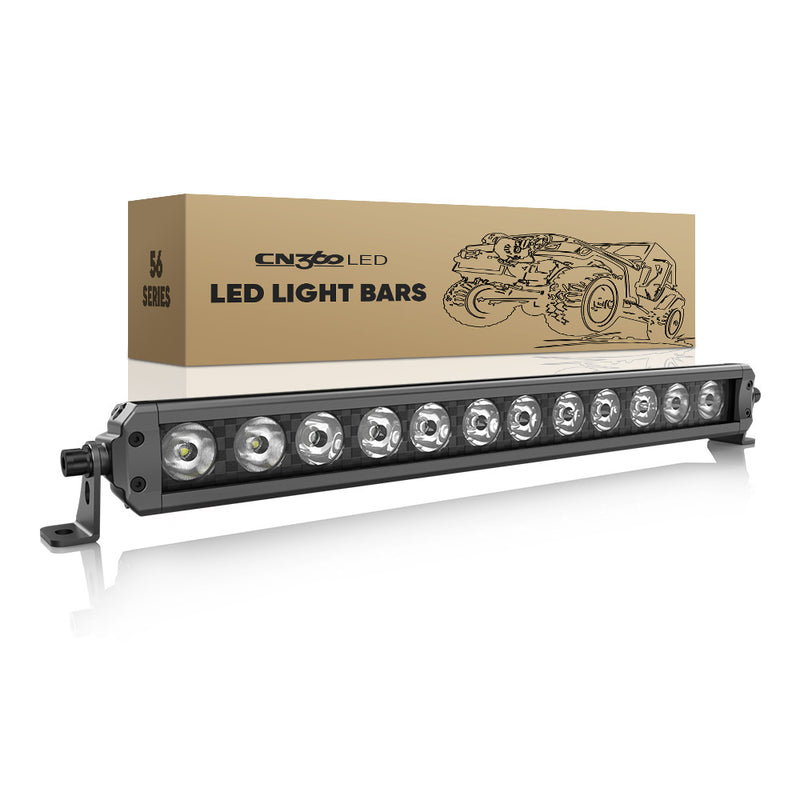

56 Series 20 Inch Projector Light Bars Driving Spot Combo

Built for clean output and confident long-range visibility, the 56 Series projector light bar lineup delivers single-row performance with a focused projector optical system and high intensity 10W HM LED chips. The 20-inch platform runs at 120W class output and is designed for demanding use on trucks, SUVs, and off-road builds where beam control matters as much as brightness. Choose the beam style that matches your driving needs, including Driving, Spot, and Combo options, while keeping the same rugged structure, wide-voltage electrical design, and IP67 sealing for year-round reliability.With a 9–36V DC operating range, this bar is ready for 12V and 24V systems, making it suitable for passenger vehicles as well as commercial platforms. The theoretical output is rated at 12000LM ± 10%. Actual lumen and lux figures depend on beam pattern and test condition, with the Combo version listed at 8040LM ± 10%, while Driving and Spot values are pending testing.

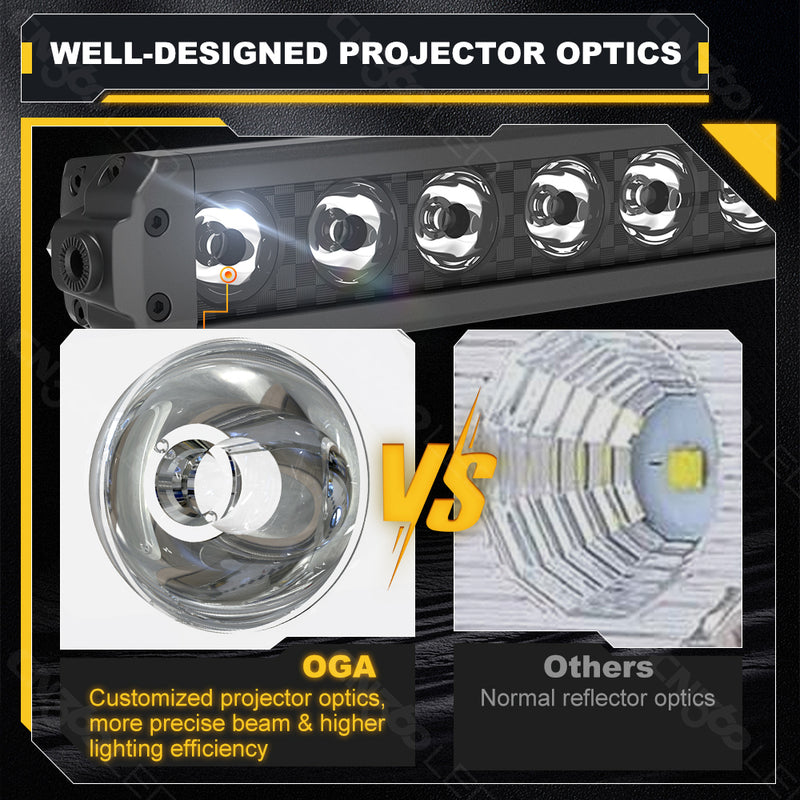

Well Designed Projector Optics

The projector optical layout is engineered to keep light concentrated where it is useful, helping reduce stray glare and improving forward definition. Compared with standard reflector-style bars, projector optics can create a more organized beam image that feels cleaner on the road and more controlled on the trail. This makes the bar a strong choice for drivers who want usable distance and clarity rather than scattered brightness.The single-row format also keeps the footprint streamlined while still delivering purposeful illumination. When mounted on the front end, the optics help project light forward with better structure, supporting higher-speed driving on unlit roads and more confident navigation in uneven terrain.

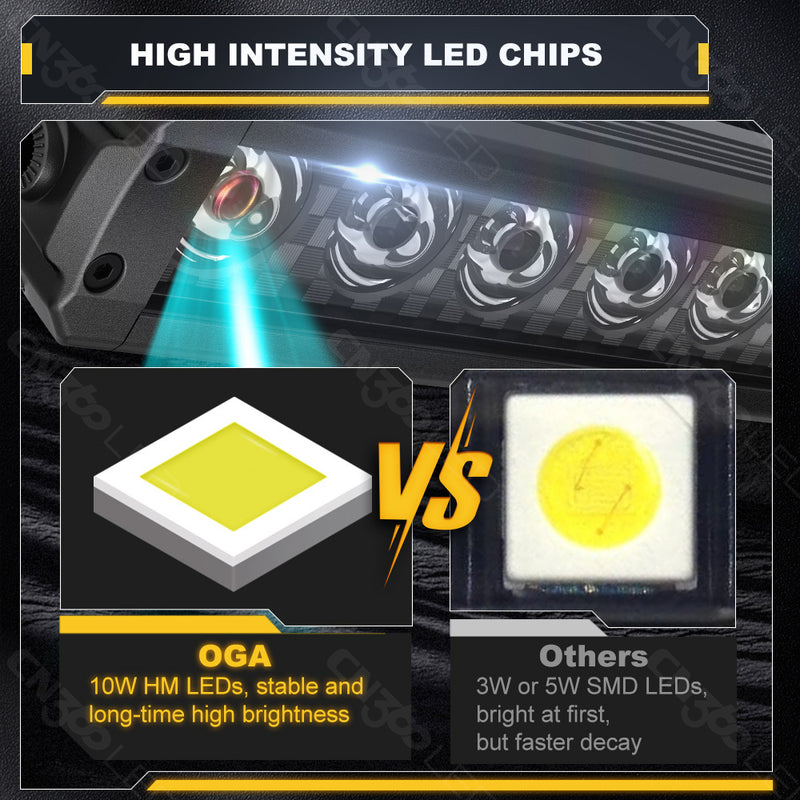

High Intensity LED Chips

At the core of the system are 12 pieces of 10W HM LED chips designed to produce strong output with consistent color. The light color is specified at 6500 ± 500K, which provides a bright white tone that improves contrast and object recognition in dark environments. This helps drivers spot obstacles, edges, and changes in surface texture sooner, especially on trails, work sites, and rural roads.The platform is rated at 120W ± 10% and is intended to deliver stable performance under real vehicle conditions. Different beam patterns are offered to match different use cases, so you can prioritize distance, spread, or a balanced combination depending on how you drive.

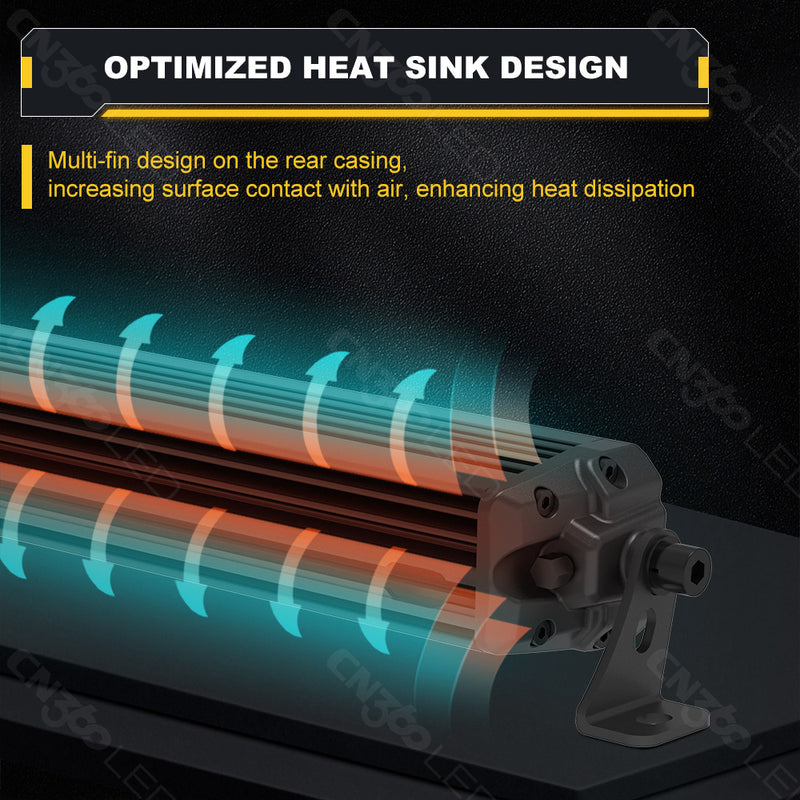

Optimized Heat Sink Design

High power output requires stable thermal control, especially during long continuous operation. The housing uses a heat sink structure designed to move heat away from the LEDs efficiently, helping maintain consistent brightness and extending component life. Effective heat flow management also supports reliability in hot climates, low-speed off-road crawling, and work scenarios where airflow can be limited.By controlling operating temperature, the light is better able to hold performance over time and reduce output drop during extended use. This matters for fleets and professional users who rely on consistent illumination night after night.

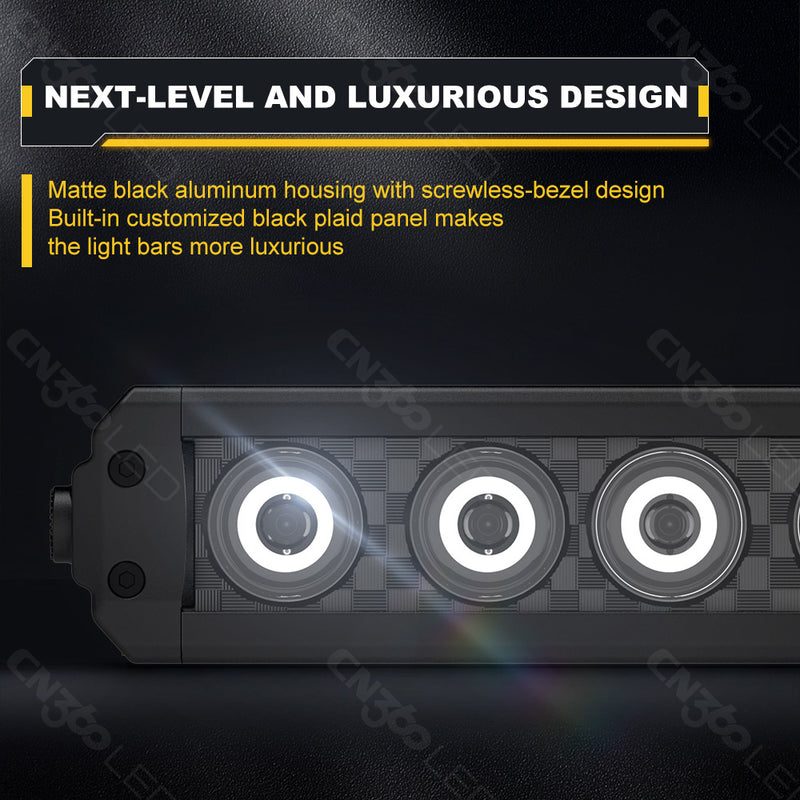

Next Level and Luxurious Design

The front appearance is built to look premium while staying purpose-driven. The projector lens styling gives a modern, technical look that fits both rugged off-road builds and cleaner street-oriented setups. A refined face design helps the bar look integrated rather than purely utilitarian, which is especially important for upgrades where appearance is part of the value.The design language also supports a uniform look across different beam options, making it easy to standardize across multiple vehicles while still choosing the correct optical pattern for each role.

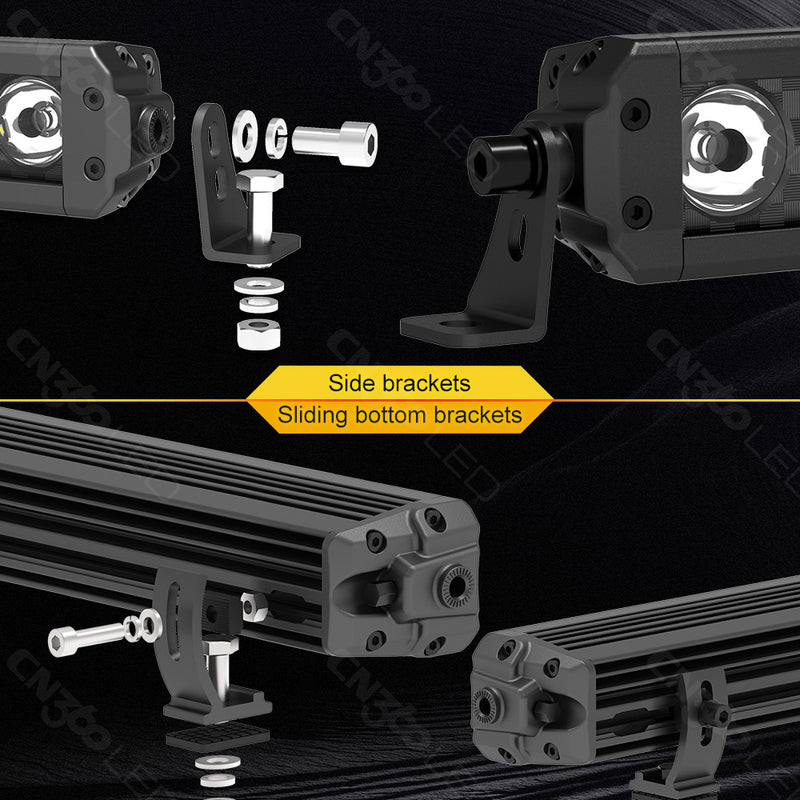

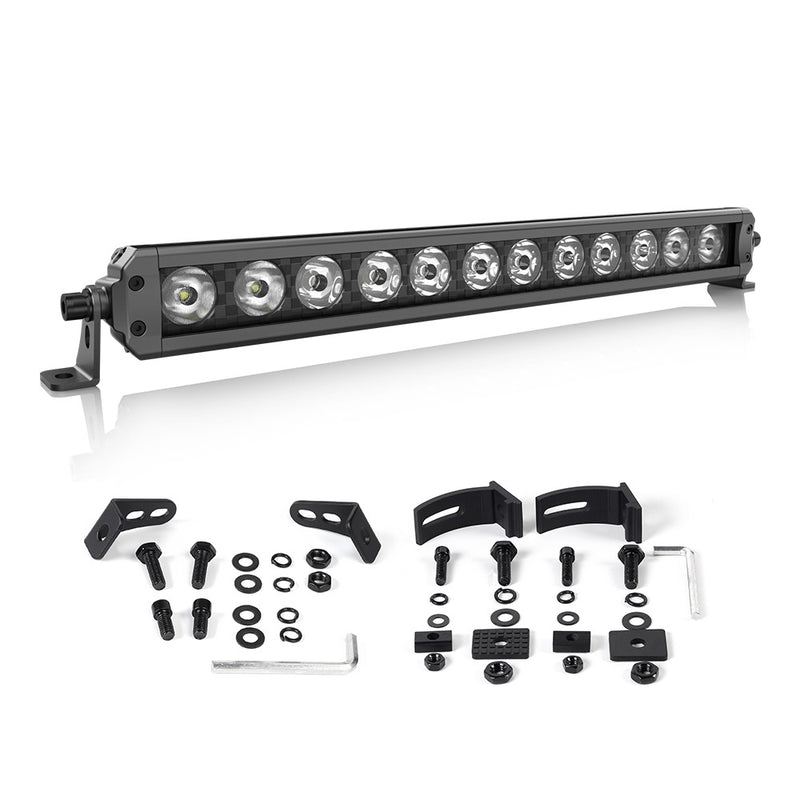

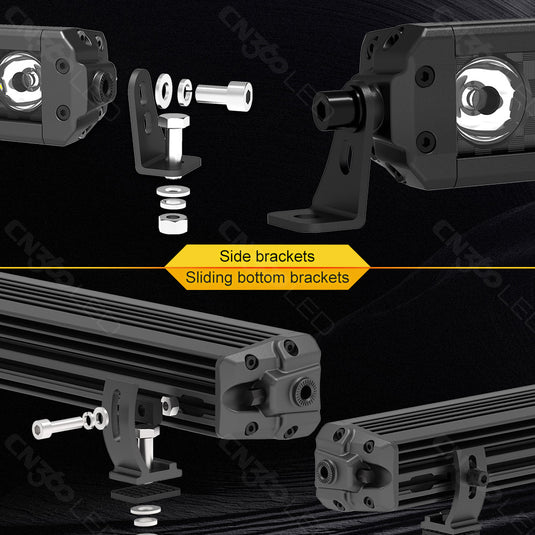

Versatile Mounting Options

Versatile mounting hardware helps installers position the bar on different vehicle structures, including bumpers, bull bars, roof racks, and custom brackets. This flexibility supports better aiming, better fitment on different front-end geometries, and easier integration into new or existing accessory setups.The slim single-row build is useful when space is limited or when a low-profile look is preferred. It can be positioned for primary forward lighting, supplemental high-beam support, or dedicated off-road illumination depending on the application.

Beam Pattern Options

Three beam patterns are available so users can choose the output distribution that matches their environment. The Driving option focuses on road-forward performance for general night driving and higher-speed visibility. The Spot option is intended for longer-distance reach where concentrated throw is preferred. The Combo option blends coverage and reach for a balanced forward view, making it suitable for mixed terrain and varied speeds.Because lux and output behavior are influenced by aim, mounting position, and test standards, actual performance data may be finalized per pattern. The Combo version is listed at 8040LM ± 10% actual lumens, while Driving and Spot actual lumen values are pending testing.

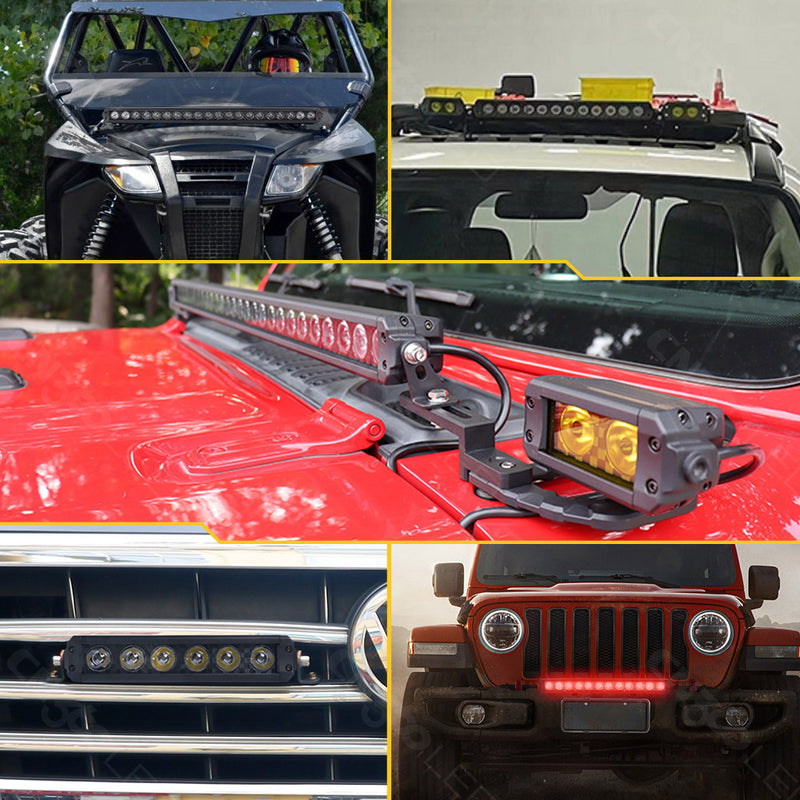

Flexible Installation Positions

The platform supports a wide range of installation positions across different vehicle types. Common use cases include mounting on the front bumper for forward driving visibility, on a bull bar for higher projection, or on a rack for trail illumination. The product is also suitable for off-road vehicles, utility platforms, and work builds where reliable forward lighting improves both safety and productivity.With 9–36V DC compatibility, the bar can be integrated into many electrical systems using standard auxiliary wiring solutions. IP67 sealing helps ensure dependable performance in rain, mud, and dust, which is essential for real off-road use and harsh work environments.

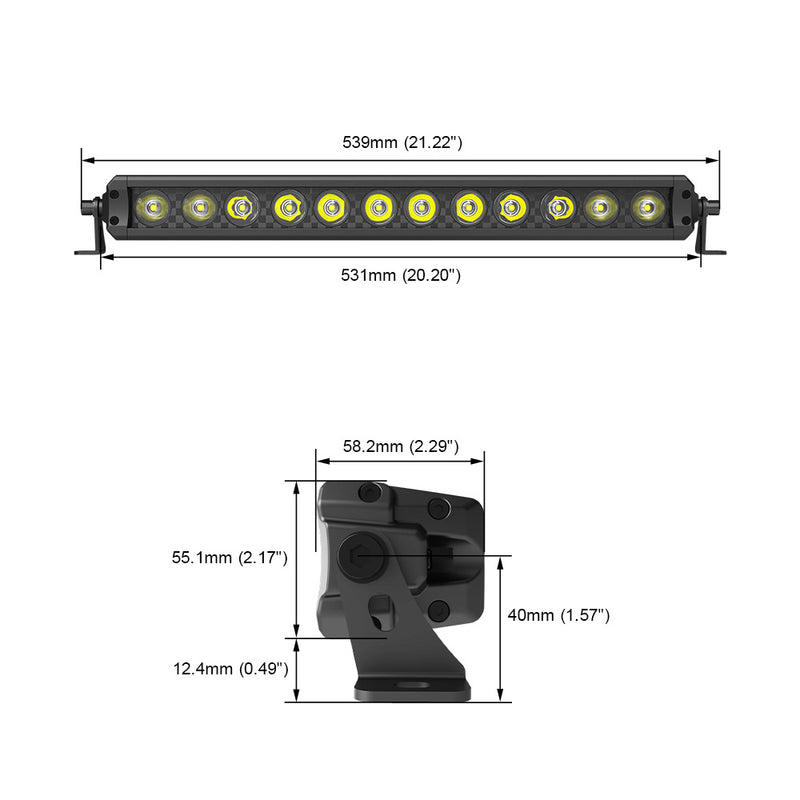

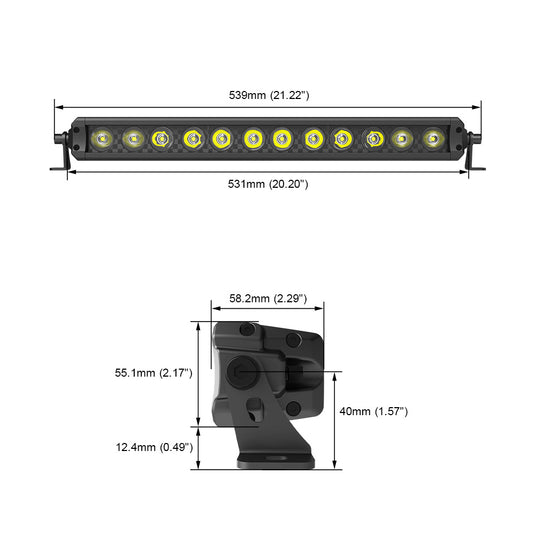

Dimensions and Fitment

The 20-inch single-row format is designed to fit common mounting spaces while keeping a clean, streamlined look. Its narrow profile helps it sit closer to the vehicle structure for a more integrated installation, and it is well suited to builds where space is limited or where a low-profile light bar is preferred.

Overall, the 56 Series projector light bar lineup combines controlled optics, high intensity LED output, strong thermal management, flexible mounting, and rugged IP67 protection, with Driving, Spot, and Combo choices to match different driving and work scenarios.
