Product Specifications

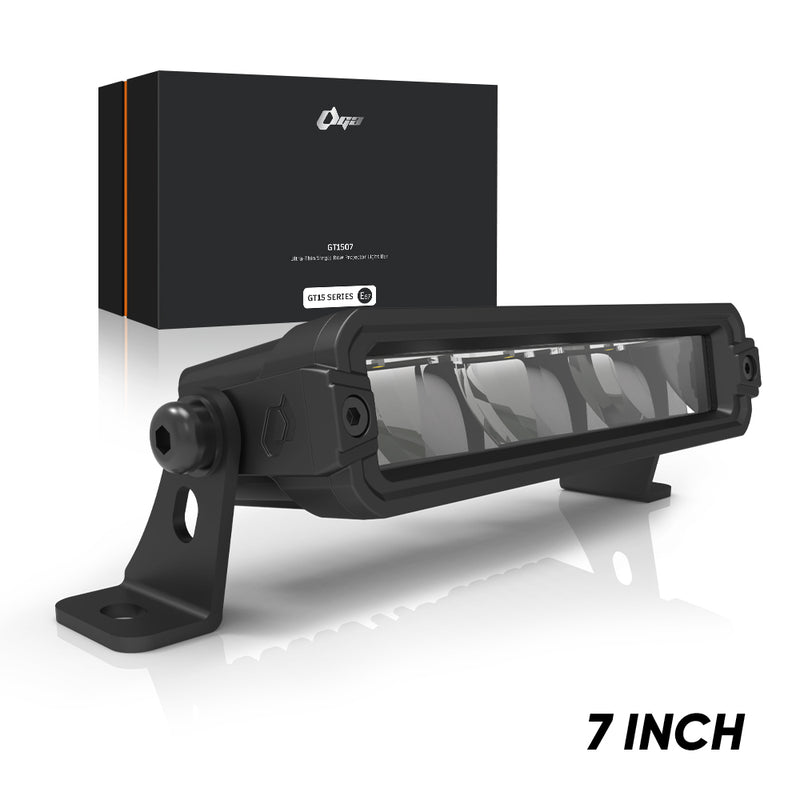

GT Series 7 Inch Linkable Dual Color Driving Light Bar

The GT Series 7 inch single row light bar is designed for modular auxiliary lighting builds that need more coverage while keeping a clean, low profile appearance. It brings together a 38.1mm slim body, 9 to 48V DC wide voltage compatibility, a soldering free quick link connection concept for modular layouts, and temperature management designed to support stable runtime. With dual color output options for white, yellow, and white plus yellow, this driving beam light bar is suitable for vehicles that face mixed weather, dusty routes, and long night driving where consistency matters.

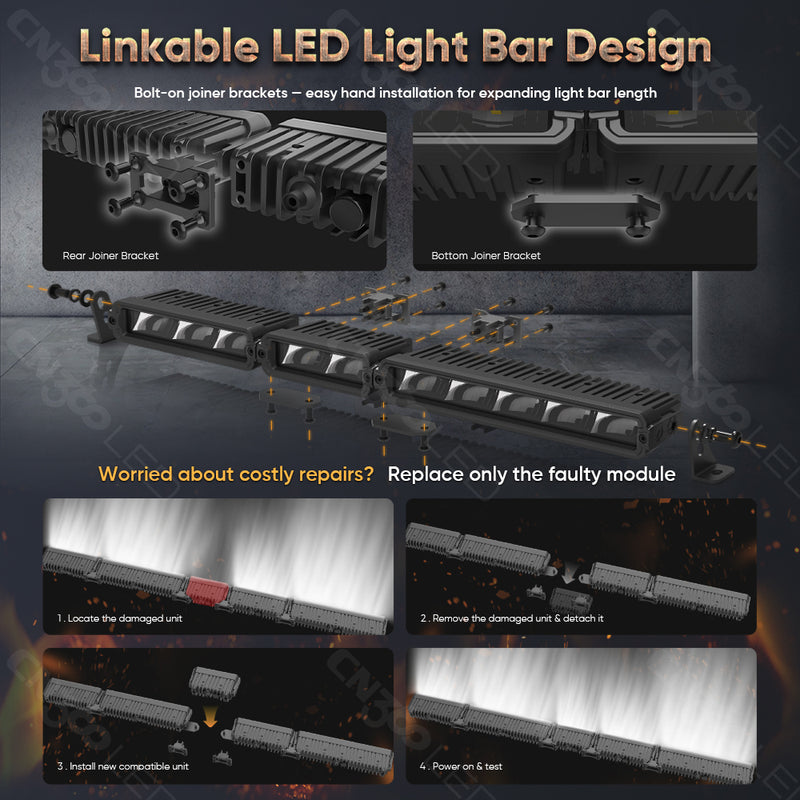

Linkable LED Light Bar Design

The linkable design supports modular extension and flexible layout planning. It is useful when the lighting layout needs to evolve with different vehicle builds or different installation constraints. A linkable structure can also support cleaner planning because connection is treated as part of the system concept rather than an improvised wiring solution.

Replace Only the Faulty Module

Serviceability is a practical advantage of modular construction. If a section requires attention, the concept supports focusing on the affected module rather than replacing a full assembly. This can reduce downtime and help control long term maintenance cost, which is important for professional users and frequent use vehicles.

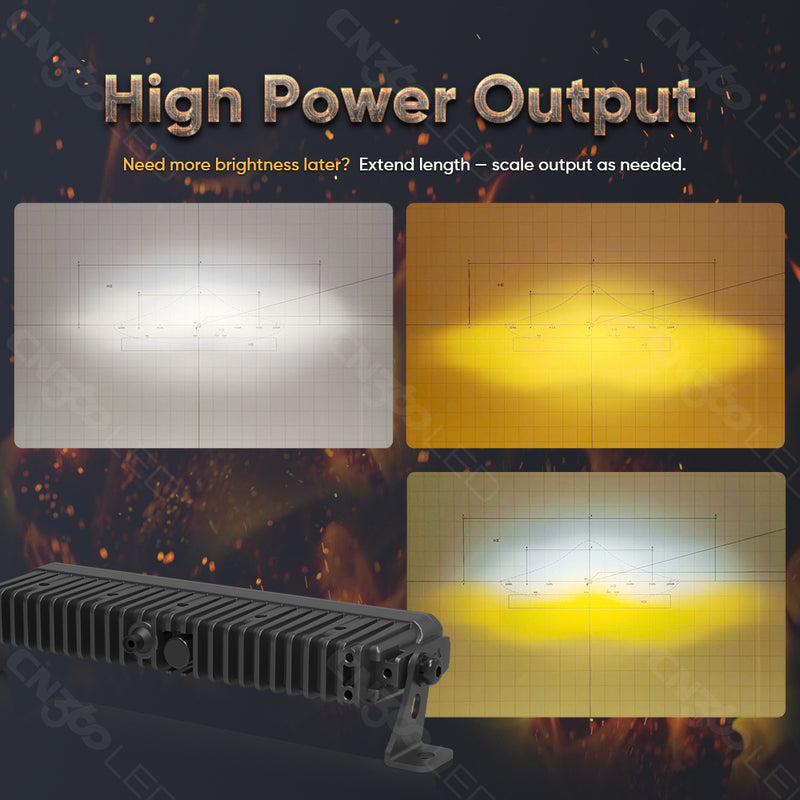

High Power Output

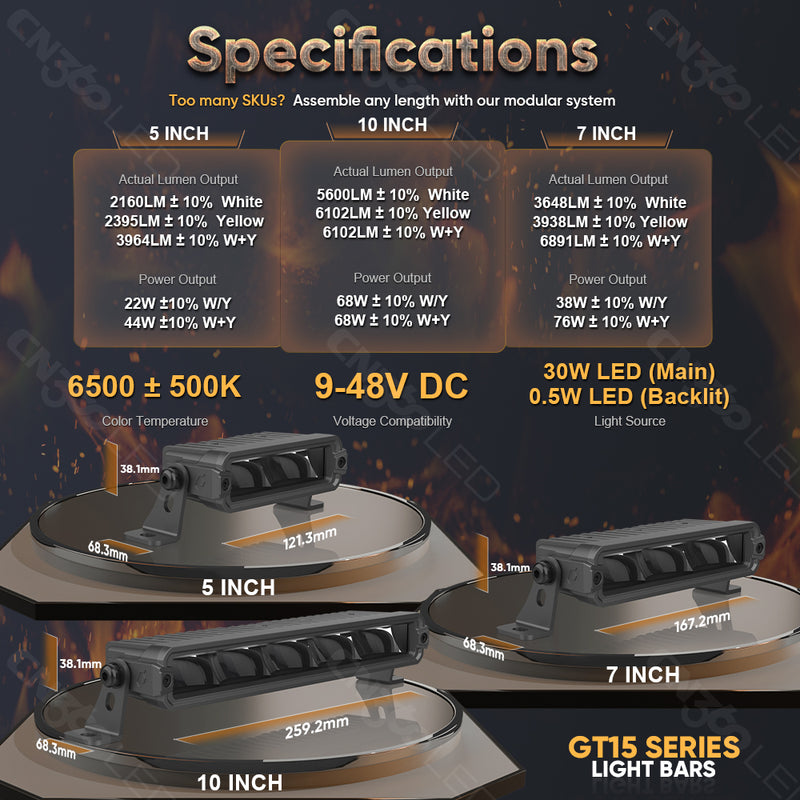

This model uses 3 x 4575 LEDs as the main light source and includes 3 x 0.5W backlit LEDs. Power output is listed as 38W ± 10% in white mode, 38W ± 10% in yellow mode, and 76W ± 10% in white plus yellow mode. Theoretical output is 6900LM ± 10% for white, 6900LM ± 10% for yellow, and 13800LM ± 10% for white plus yellow. Actual output is listed as 3648LM ± 10% in white, 3938LM ± 10% in yellow, and 6891LM ± 10% in white plus yellow, supporting practical performance evaluation.

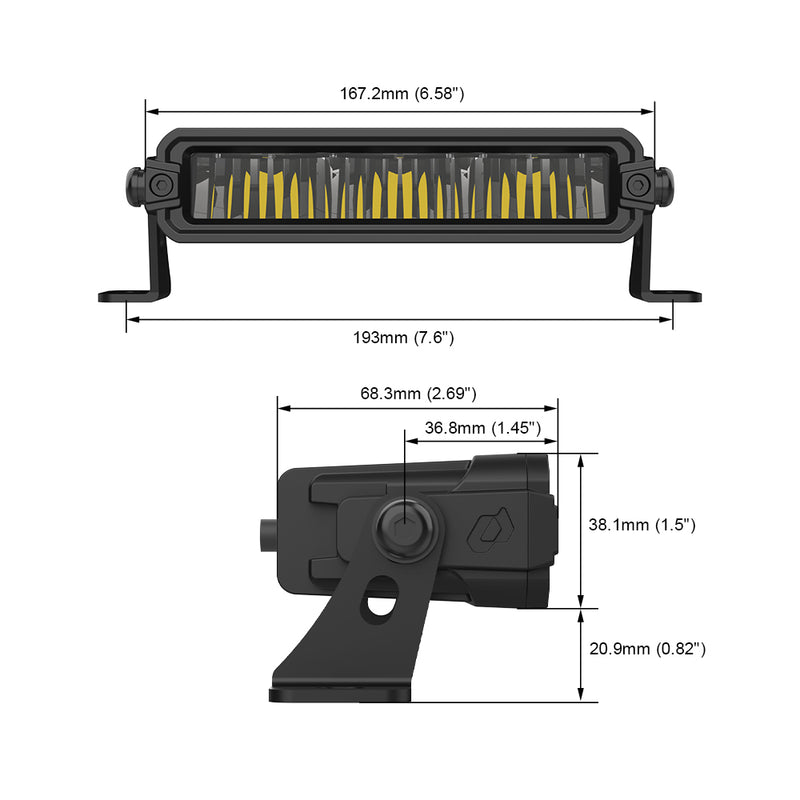

38.1mm Ultra Slim

The ultra slim format helps fitment where vertical clearance is limited, such as behind grilles or inside compact bumper openings. It supports a modern finished look while keeping the light positioned effectively for forward driving beam coverage. This slim approach also helps installations look cleaner when the light needs to blend with vehicle styling.

Intelligent Temperature Control

Intelligent temperature control is aimed at stable operation during extended use. Managing temperature behavior helps reduce overheating risk and supports consistent output when the light is used for long durations. This is especially helpful for vehicles that operate through long night drives, variable climates, or frequent stop and go conditions that change airflow across the housing.

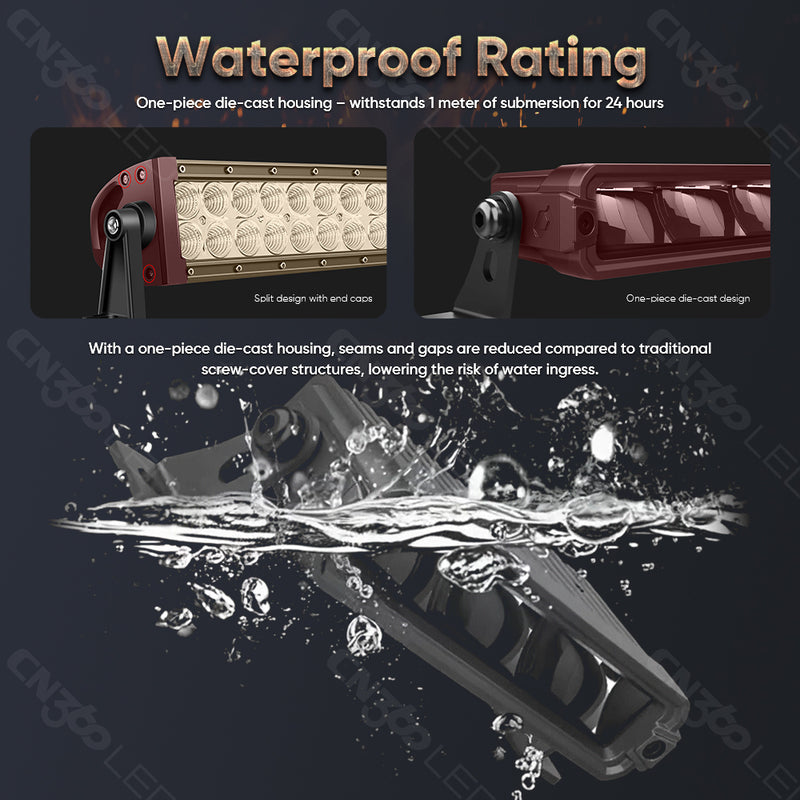

Waterproof Rating

IP67 protection supports dependable use in harsh outdoor conditions. Rain, snow, road spray, dust, and routine washing can all challenge auxiliary lights, and sealing helps protect internal electronics and connections from water and debris. This supports reliability in everyday operation where exposure is unavoidable.

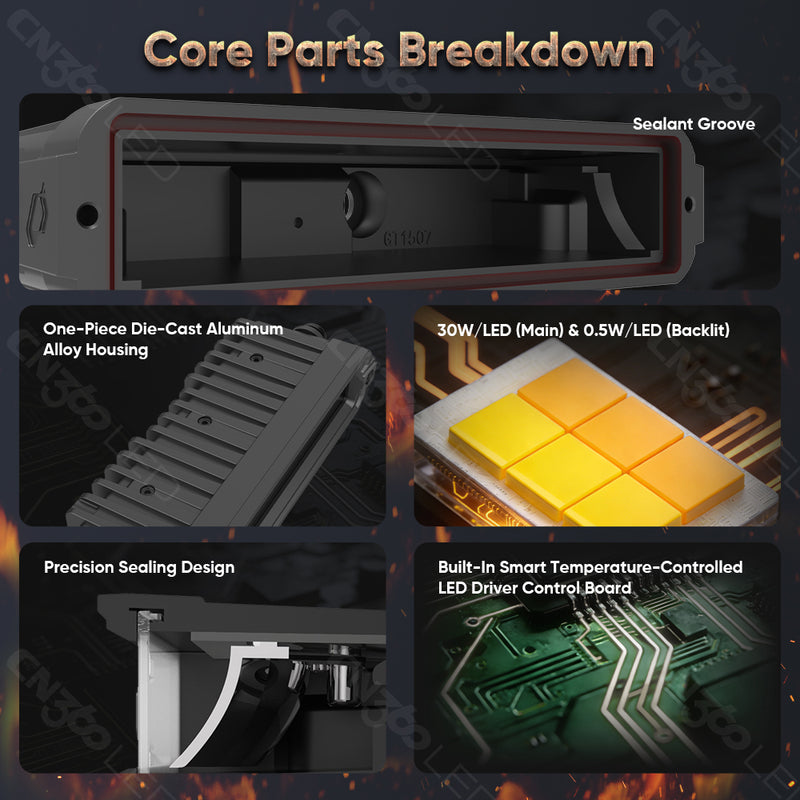

Core Parts Breakdown

The construction emphasizes durability and sealing. A one piece die cast aluminum alloy housing supports strength and heat handling. A precision sealing gasket supports the ingress protection strategy. A built in temperature controlled driver circuit board supports the thermal management concept. The LED system combines 4575 LEDs for main output with low power backlit LEDs to support the product's lighting functions.

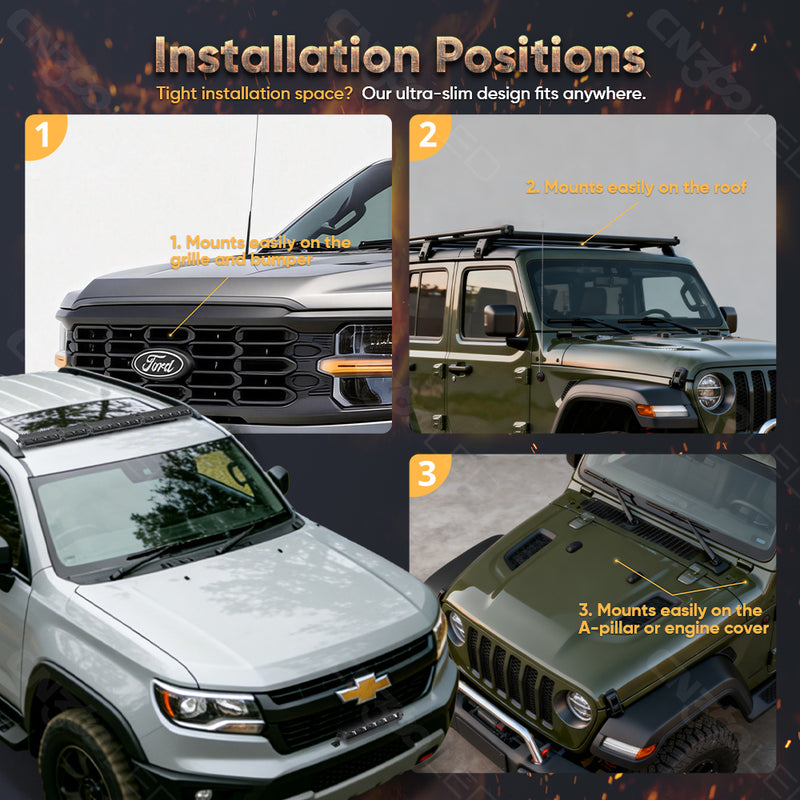

Installation Positions

The slim single row design supports common front end auxiliary mounting areas such as grille openings, bumper mounting locations, and other forward facing positions. The linkable concept supports repeatable fitment planning across multiple vehicles, helping installers and buyers standardize their layout approach while keeping driving beam performance aligned with real road needs.
