Product Specifications

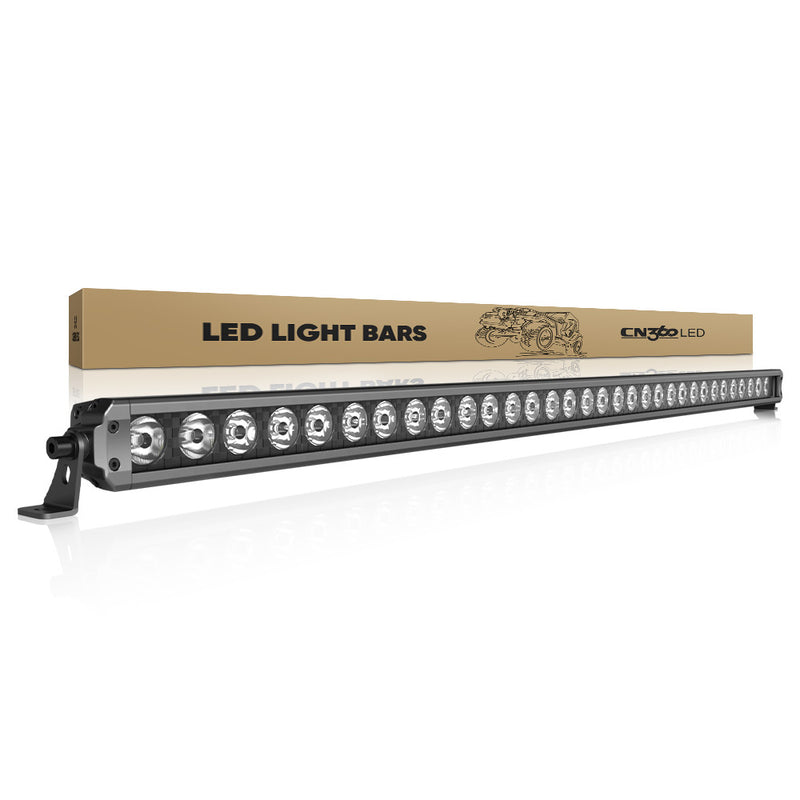

56 Series Projector Light Bar 50" Single Row Combo Beam

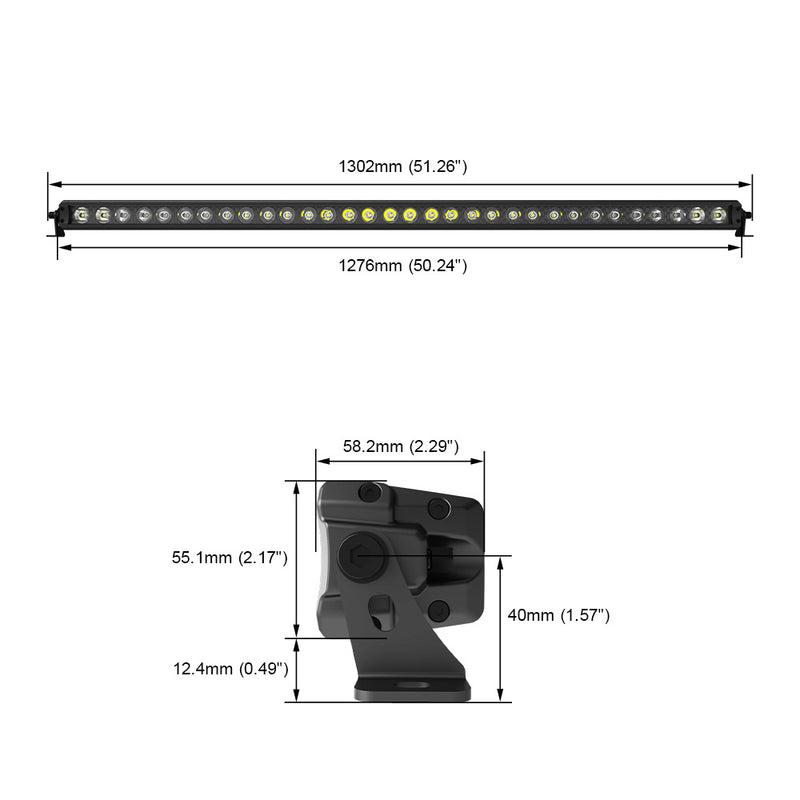

The OGA 56 Series 50-inch bar is built around precision projector optics to deliver a clear, road-usable beam while maintaining a slim single-row profile. A bank of 32 high-intensity 10W HM LEDs drives a true 320W class output, matched with a combo beam layout that pairs long-range punch with a wide foreground wash. The housing is tightly packaged—just 2.29 inches tall and 2.17 inches deep—so it fits cleanly on roof racks, bumpers, and behind grille openings without crowding adjacent accessories. Electrical compatibility spans 9–36V DC, and sealing meets IP67 for reliable performance in rain, dust, and job-site conditions.

Well-Balanced Projector Optics

The light bar’s identity is its projector architecture. Each module is engineered to shape light precisely, concentrating intensity where you need it while controlling stray glare. The combo arrangement blends spot and spread elements so drivers get confident long-distance visibility without sacrificing near-field awareness. This balance is especially helpful on open highways, desert trails, and back roads where you alternate between speed and technical navigation.

High-Intensity LED Core

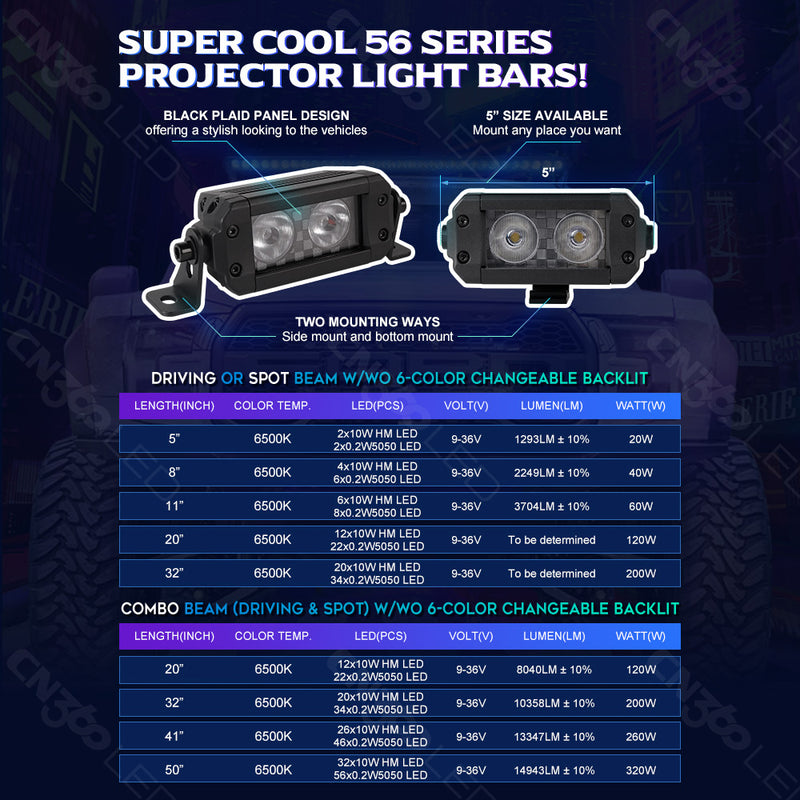

At the heart of the 56 Series are 32 HM-type 10-watt LEDs selected for strong candela and consistent color. The array’s rated power is 320 watts ±10%, with measured lumen output of 14,943 lm ±10%. Color temperature is set around 6500K, providing a crisp white tone that enhances edge definition on pavement, gravel, and packed dirt. The LEDs are driven for stability, so brightness stays dependable during extended night runs and work shifts.

Optimized Heat Sink Design

Thermal management is handled by an optimized aluminum heat sink that continuously wicks heat away from the LED boards and projector bodies. The fin geometry increases surface area and promotes airflow across the back of the light when the vehicle is in motion. Effective heat control protects the LEDs and driver circuitry, reduces lumen sag, and supports long service life in hot climates or during low-speed technical driving where natural airflow is limited.

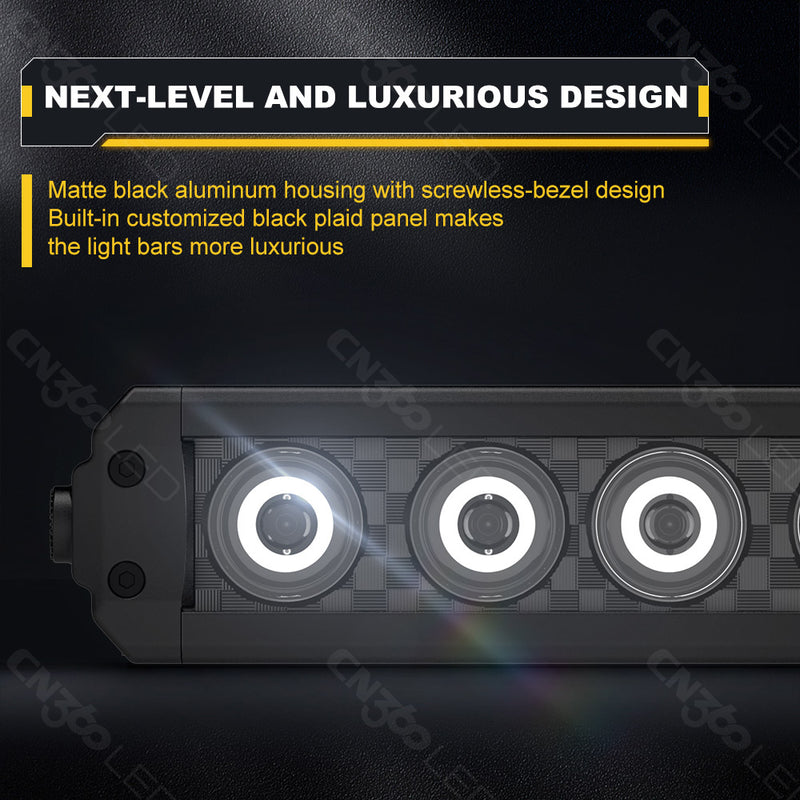

Next-Level, Luxurious Appearance

The 56 Series emphasizes a premium look to match its performance. The face layout and bezels create a modern, high-end signature that upgrades the front of the vehicle even when the main beam is off. For builders who want a distinctive aesthetic, an optional version includes a backlit accent that glows in multiple colors, adding a refined show-ready presence for meets, campsites, and staging areas.

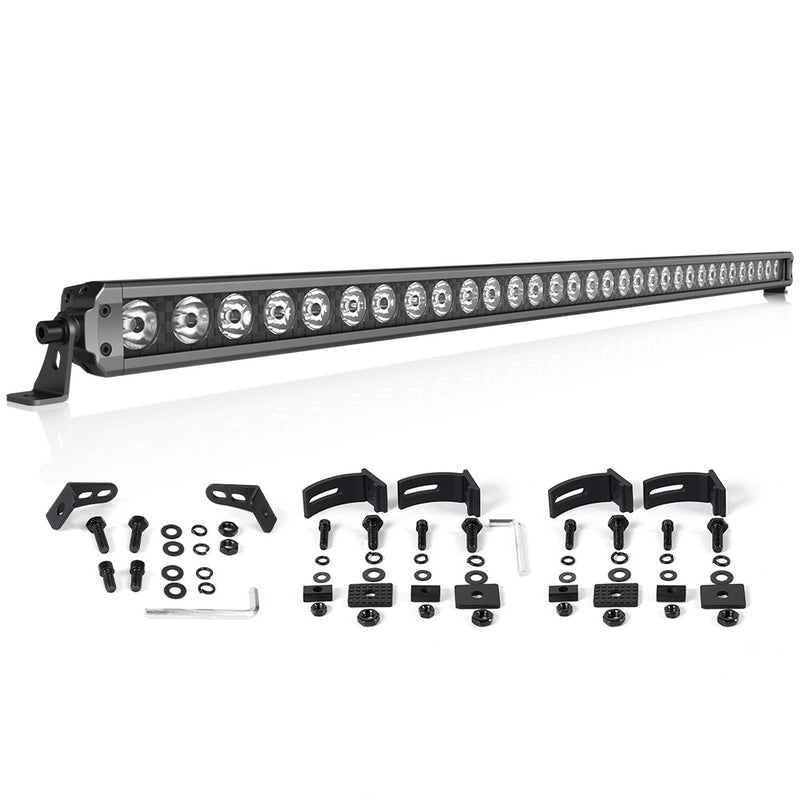

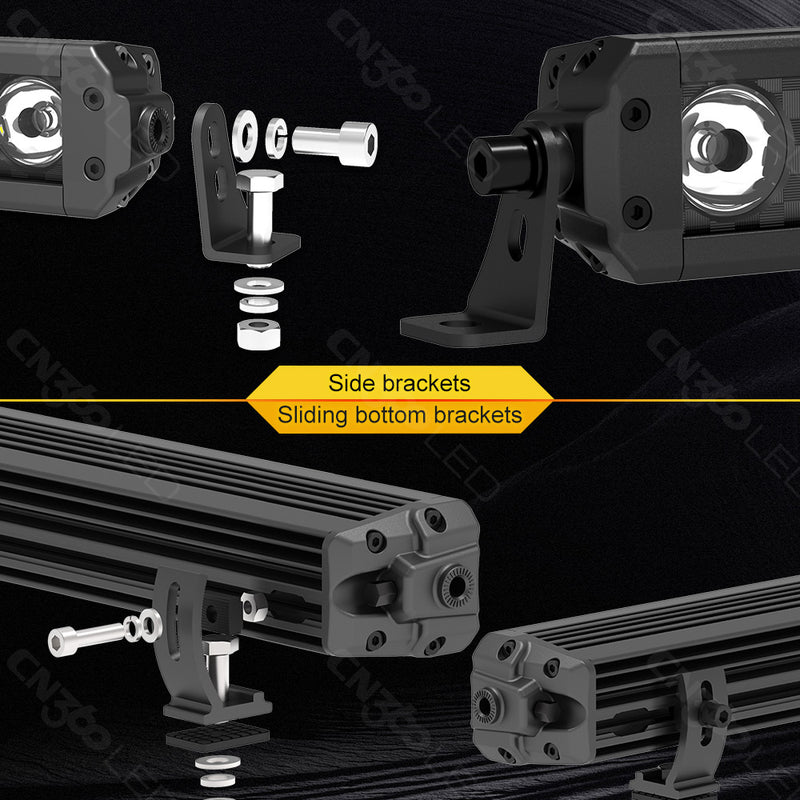

Flexible Mounting System

The mounting system is designed for versatility during installation and aiming. Adjustable brackets allow you to set the bar on roof racks, front bumpers, grille openings, or auxiliary cross-bars and then fine-tune the vertical angle for the intended use. The hardware supports rigid clamping to resist vibration, helping the projector modules maintain a stable beam pattern over rough surfaces.

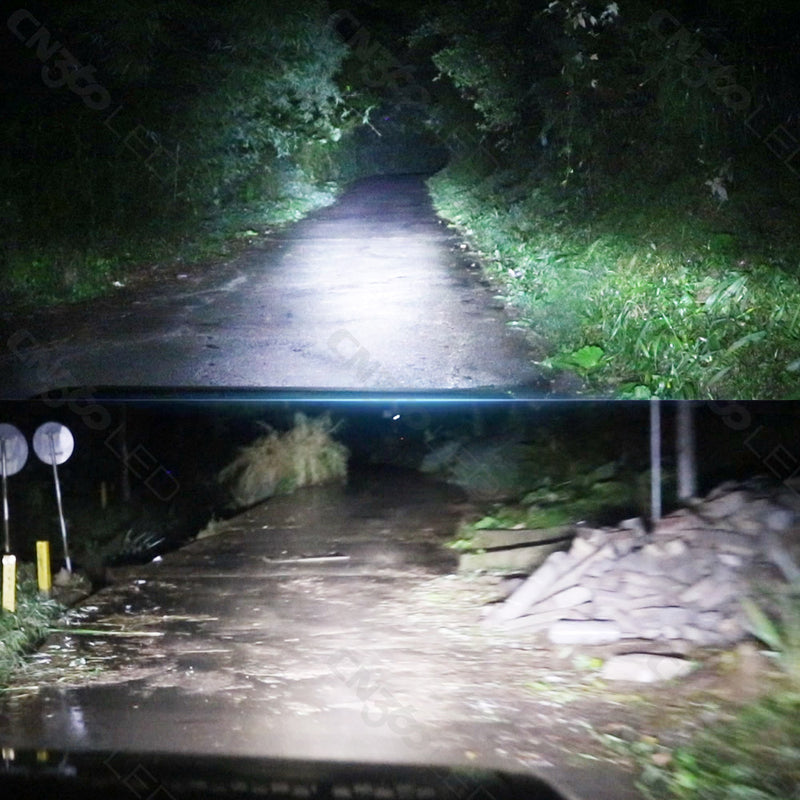

Combo Beam for Real-World Coverage

This 50-inch configuration uses a combo pattern to merge distance and width in one bar. Central projector elements reach far down the road for early hazard detection, while outer optics widen the beam to capture the shoulders and trail edges. The combined effect improves confidence at speed and reduces eye strain over long night drives because you are not over-focusing on a narrow hot spot.

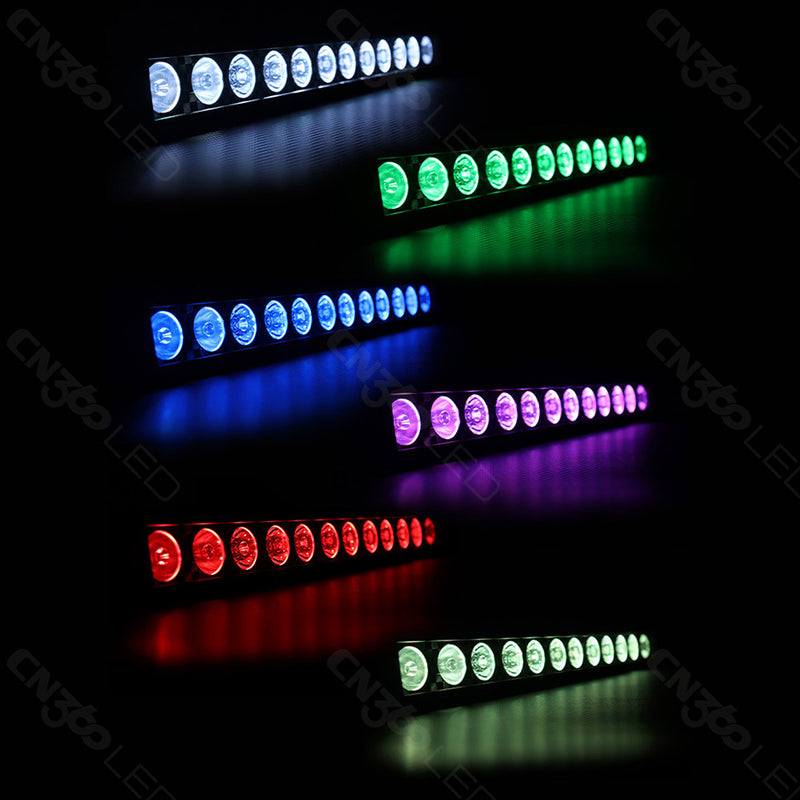

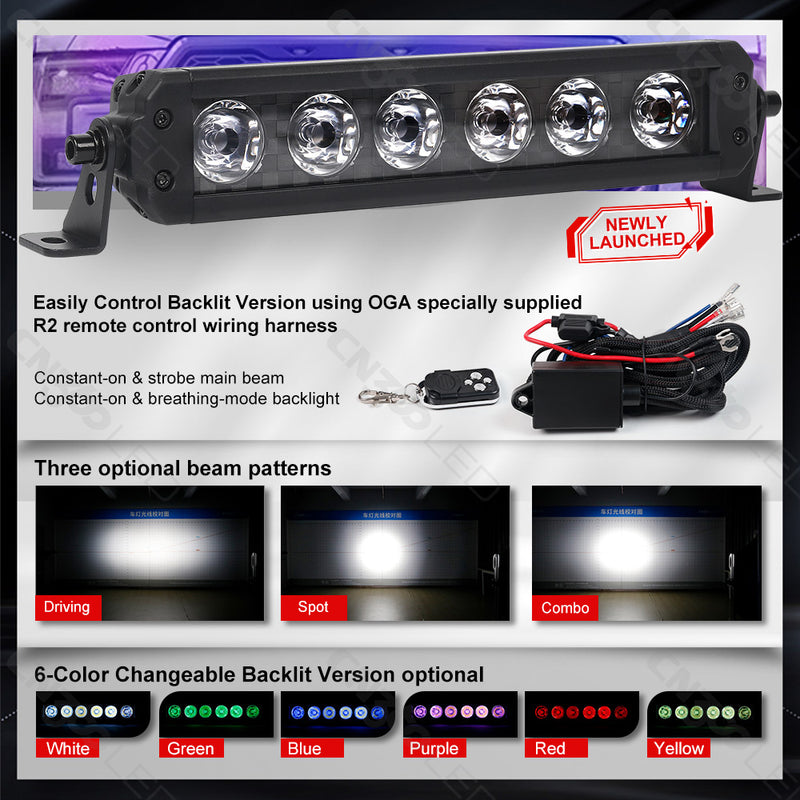

Six-Color Backlit Version Available

For customers who want more visual customization, a 6-color backlit option is available. The accent ring illumination provides a clean, even glow that can be matched to vehicle themes or used for campsite ambiance. The backlight is separate from the primary high-output beam, so you can use it for style without projecting forward light where it isn’t needed.

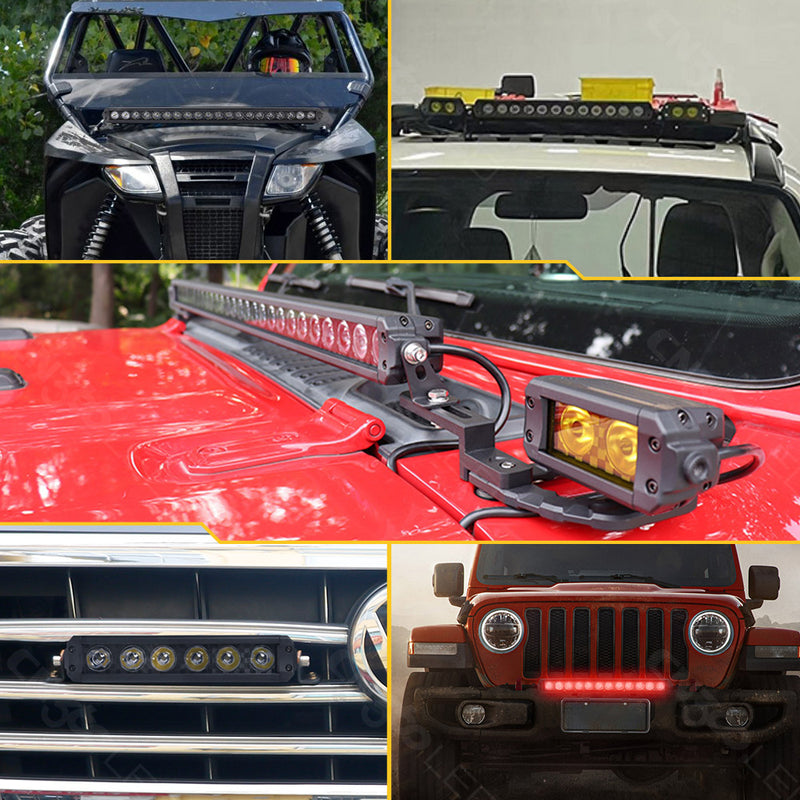

Installation Positions

Common placements include the upper windshield/roof rack for maximum throw, front bumper for balanced road illumination, and behind the grille for a stealth look that keeps the bar protected. The slim single-row profile makes it easier to integrate with bull bars and low-clearance mounts while maintaining airflow to radiators and intercoolers.

Rugged Build and Environmental Protection

With an IP67 rating, the assembly is sealed against dust and can withstand water exposure from storms, stream crossings, and washdowns. The aluminum chassis resists corrosion, and the bracketry is designed to handle vibration from unpaved roads and off-highway use. Electrical input from 9–36V DC supports both passenger vehicles and 24V platforms, enabling fleets and upfitters to standardize on the same bar across diverse vehicles.

The OGA 56 Series 50-inch single-row projector bar combines precision optics, high-intensity HM LEDs, robust thermal engineering, and flexible mounting in a sleek package. The combo beam pattern covers both distance and width, the IP67 build stands up to the elements, and the optional six-color backlit accent lets builders create a signature look without compromising performance.
