Product Specifications

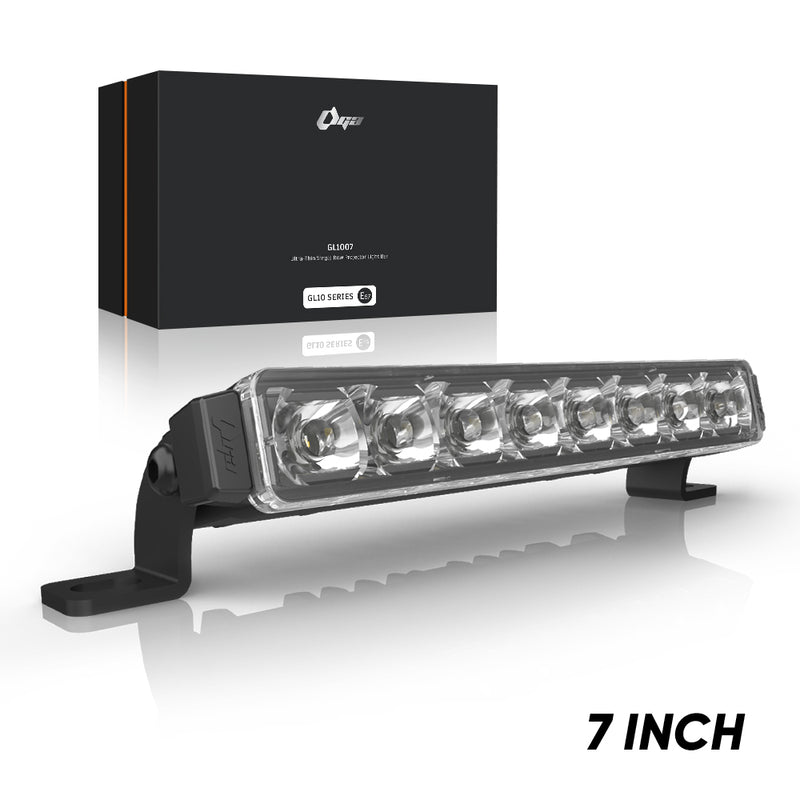

GL10 Series GL1007-SP Ultra-Slim Expandable Universal LED Light Bar

GL10 Series GL1007-SP Spot Beam Light Bar is a 7 inch ultra-slim LED light bar designed for users who need focused forward auxiliary lighting with flexible modular expandability. This model uses 8 × 9W LEDs as the main light source together with 6 × 1.5W LEDs for the backlight function. With 72W ± 10% power output, 5200LM ± 10% theoretical lumens, 3241LM ± 10% actual lumens, a spot beam pattern, 5500K ± 500K color temperature, 9-48V DC voltage compatibility, 2.9A@13.5V working current, IP67 waterproof protection, and a 2-year warranty, it is suitable for off-road vehicles, trucks, SUVs, utility vehicles, and customized lighting applications where slim installation, long-distance visibility, and modular configuration are important.

Linkable LED Light Bar Design

The linkable design gives the GL10 Series excellent flexibility for different vehicle layouts and lighting needs. Multiple light bar modules can be connected together to create a longer lighting system, allowing users to build the final length according to the installation space and required lighting coverage. This is useful for grille, bumper, roof rack, and other customized mounting positions where one fixed-size light bar may not be suitable. For distributors and modification workshops, this modular linking concept also makes the product easier to recommend across different vehicle projects, because one series can support both compact installations and extended lighting configurations.

Replaceable Modular Light Bar Design

The GL10 Series adopts a replaceable modular structure to make long-term maintenance more convenient. If one section is damaged during use, users can locate the affected module, remove it from the connected light bar, install a compatible replacement unit, and then power on the system for testing. This design helps reduce maintenance cost because the complete light bar does not need to be replaced when only one module has an issue. For off-road vehicles, work vehicles, and outdoor applications, this repair-friendly structure provides practical service value and helps keep the lighting system easier to maintain over time.

Spot Beam Pattern With 5500K Output

The GL1007-SP version is designed with a spot beam pattern, making it suitable for users who need more concentrated forward illumination. Compared with a driving beam, the spot beam focuses light farther ahead and provides stronger support for distance visibility in night driving, trail use, off-road routes, and auxiliary lighting setups. This model uses a 5500K ± 500K color temperature, producing a clear lighting effect that is suitable for outdoor vehicle applications. With 3241LM ± 10% actual lumens, the GL1007-SP offers strong usable output for customers who need a slim light bar with focused long-range lighting performance.

25mm Ultra-Slim Profile

The GL10 Series features a 25mm ultra-slim profile, allowing the light bar to fit neatly into limited installation spaces. Compared with larger conventional light bars, the slim body creates a cleaner and more integrated appearance when mounted on vehicle grilles, bumpers, roof racks, or other exposed positions. This low-profile structure is especially useful for modern vehicle customization, where customers often want additional auxiliary lighting without making the vehicle look too bulky. The compact form also helps the GL1007-SP match different off-road vehicles, pickups, SUVs, and utility platforms with a more refined installed look.

Intelligent Temperature Control And Backlight Display

The intelligent temperature control system helps the GL10 Series maintain more stable operation by managing heat during use. This is important for an ultra-slim LED light bar because the compact housing needs reliable thermal control to protect the LEDs and internal electronic components. The GL1007-SP also includes a backlight display function, giving the product a more recognizable appearance when installed on the vehicle. This combination of heat management and backlight styling allows the light bar to offer both practical lighting performance and customized visual appeal for users who value function and design at the same time.

IP67 Waterproof Protection

The GL1007-SP carries an IP67 ingress protection rating, supporting reliable use in outdoor and vehicle-mounted environments. This protection helps the light bar resist dust and water exposure during rainy weather, off-road driving, vehicle washing, and rough road conditions. Since auxiliary lights are usually installed in exposed positions, strong sealing performance is important for protecting the internal LEDs, optical structure, and electronic components. The IP67-rated construction makes the product more suitable for demanding applications where the light bar needs to remain dependable beyond normal road use.

Core Parts Breakdown

The GL10 Series is built with a durable housing, main LED light source, backlight LEDs, optical components, and internal driver control design. The 8 × 9W main LEDs provide the primary spot beam output, while the 6 × 1.5W LEDs support the backlight function. The housing helps protect the internal structure and supports heat dissipation during operation. The optical design helps guide the beam into a more concentrated forward lighting pattern, while the internal driver control supports stable operation within the 9-48V DC working range. Together, these core parts help the GL1007-SP deliver slim design, focused illumination, and dependable performance.

Multiple Installation Positions

The GL10 Series supports different installation positions depending on vehicle design and lighting purpose. It can be mounted near the front bumper for auxiliary forward lighting, integrated into the grille area for a cleaner customized appearance, or installed on a roof rack for a higher lighting position. The ultra-slim body and linkable modular structure make it suitable for different off-road vehicles, pickups, SUVs, and work vehicles. This flexible installation value is helpful for distributors and modification workshops because one product series can cover multiple vehicle styles and customer application needs.
