Product Specifications

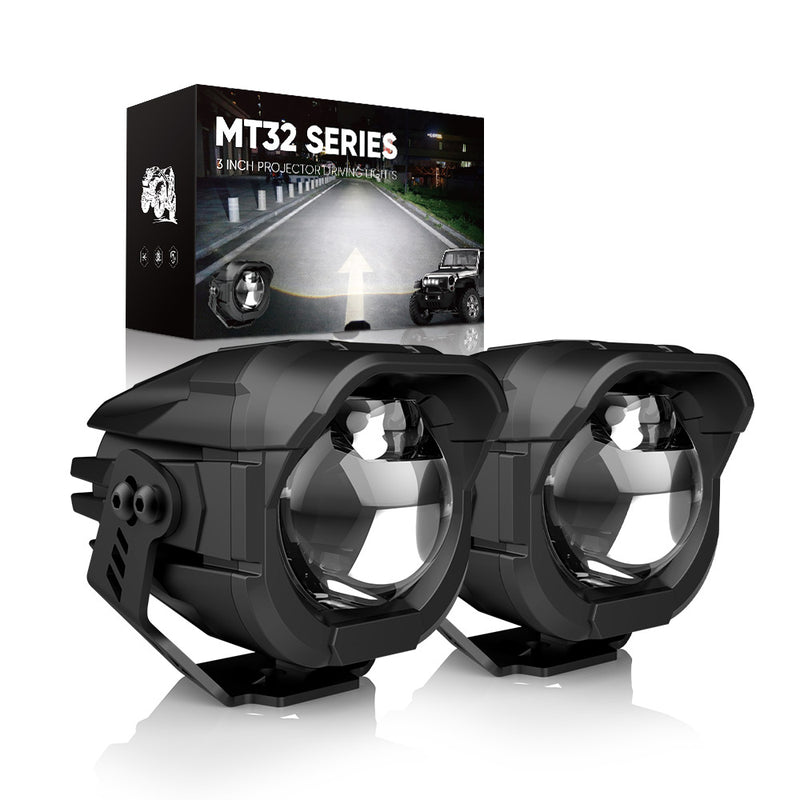

MT32 3 Inch Projector Motorcycle Driving Light • 12V • IP67 • Hi/Lo Switchable

The MT32 is a compact 3-inch projector driving light designed for riders who need real road performance in a small, tough package. Inside the die-cast aluminum body, a dedicated low-beam emitter (≈45 W) and a separate high-beam emitter (system ≈64 W in Hi & Lo mode) create a balanced lighting system that covers both near-field awareness and long-range reach. On a calibrated bench, the MT32 delivers measured 2410 lm on Low and 3686 lm in Hi & Lo with up to 2580 lux at 6.2 m, proving that the output is not only bright on paper, but bright where it matters—on the tarmac. Color is set to a crisp 6000 K ±500 K for high contrast and clear sign readability at night.

Super Bright and Powerful

Riders immediately notice the dense center hotspot and the uniform foreground fill. This combination allows you to ride at speed without over-driving the beam. The projector concentrates light into a controlled pattern that pushes visibility down the road while keeping the near area bright enough for low-speed maneuvering, speed bumps, and corner entries.

Ultra-Wide Illumination

Beyond raw candela, the MT32’s optics spread light broadly across the lane and into the shoulders. The ultra-wide distribution helps detect reflective road markers, animals stepping from the verge, and potholes that sit off the centerline. Commuters will appreciate the extra peripheral awareness when splitting lanes or riding through dim industrial parks.

Clear Cutoff Line • Anti-Glare Control

A precise shutter and lens stack produce a clean cutoff that protects oncoming traffic. The horizon line stays flat and sharp, reducing glare and helping the beam pass visual inspection for on-road friendliness in markets that require a defined low-beam pattern. You get more usable light on the asphalt with fewer angry flashes from oncoming drivers.

Dual Lens for High Beam

When the road opens, the high-beam path adds intensity without blowing out foreground detail. The distinct optical path for high beam stacks additional punch onto the low-beam base, extending sight distance and sign pop. This dual-lens strategy avoids the “all flood, no reach” feeling common to generic auxiliary lamps.

High/Low Beam Switchable

The MT32 integrates both functions in one body, minimizing wiring clutter while maximizing control from the bars. Use Low for city and group rides; click into Hi & Lo for backroads, canyon runs, or rural highways where long-range visibility counts. The electrical platform is tuned for 12 V motorcycle systems and draws approximately 3.2 A (Low) or 4.8 A (Hi & Lo) at 13.2 V.

4-Sided Mounting Solution

Installers get latitude to mount the lamp where it fits best. The bracket and housing provide multiple faces for fastening—top, side, or rear—so the light can sit tight against fork legs, crash bars, headlight brackets, or custom plates. The adjustable pivot simplifies aiming both vertical cutoff and horizontal spread for perfect alignment with the main headlamp.

Two Versions Available

Choose the standalone lamp for custom builds, or the harness/kit version when you want an integrated solution with relays, fused battery leads, and plug-and-play connectors. The kit shortens install time for dealers and ensures clean routing with strain-relief and sealed plugs suitable for rain rides and frequent washing.

Rugged Appearance • Built to Last

The MT32 looks as tough as it performs. A compact shell, protective bezels, and cooling fins communicate durability and pair well with adventure, touring, street, and scrambler aesthetics. IP67 sealing keeps out dust and water, and the aluminum body resists vibration from single-cylinder engines and rough surfaces. Whether you commute daily or tour through bad weather, the light is engineered to stay clear and bright.

Dimensions and Fitment

At 3.05 × 4.59 × 3.52 inches, the MT32 fits many motorcycle brackets and fairing openings in the 3-inch class. Its projector architecture makes it an excellent auxiliary driving light beside OEM headlamps, or as the primary unit in custom builds that demand a sharp cutoff and strong high-beam reach.

The MT32 concentrates professional-grade optics, honest lumen performance, and installer-friendly hardware into a small projector platform. Riders get safer night travel, shops get faster installs, and fleets get consistent results across mixed motorcycles. If you want a compact lamp that truly upgrades nighttime confidence—without overwhelming oncoming traffic—the MT32 is the smart, road-ready choice.
