Product Specifications

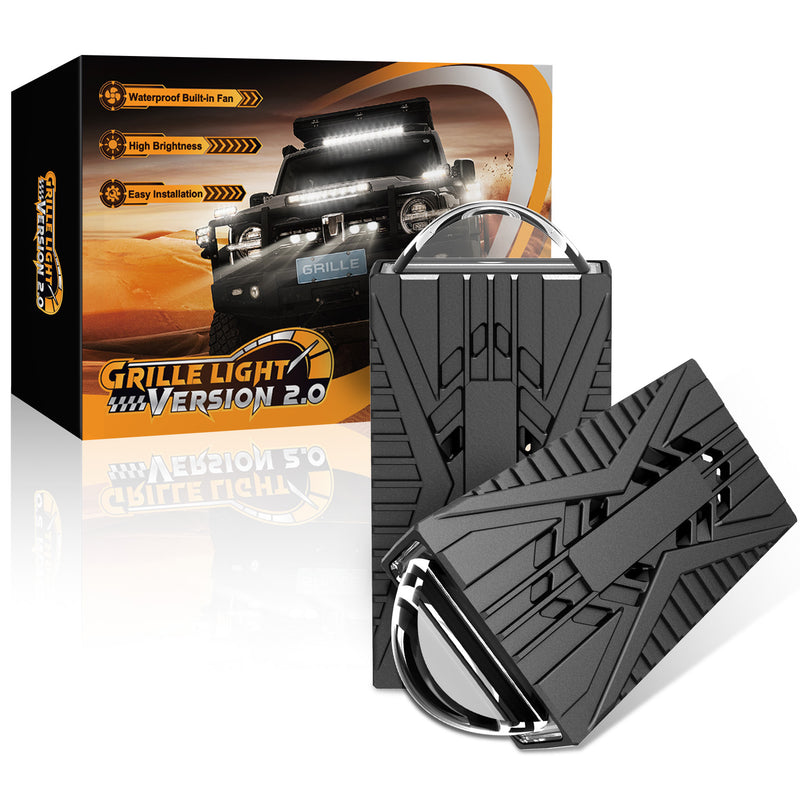

Gen 2 LED Grille Lights Ultra Thin IP67 25W Modules White • Yellow • Tri Color

Built for stealth installs and real road performance, the Gen 2 LED Grille Lights pack stable 25-W class output into a mini 66×33×17 mm housing that disappears behind most grilles. All models run on 10–30 V DC and use GC-7035 LEDs for consistent color and efficiency. Choose LG1606-WHITE (6500 K), LG1607-YELLOW (3000 K), or LG1608-W+Y (tri-color: white, yellow, or a balanced 4000 K mix). Measured output is honest and repeatable: 807.7 lm (LG1606), 884.7 lm (LG1607), and 783.6/777.7/870.0 lm for LG1608 in W/Y/W+Y modes (theoretical 1,000 lm per bulb). An aluminum heat sink plus a sealed, waterproof fan hold brightness during extended use, while IP67 sealing and global certifications make them dependable for daily driving, light off-road, and commercial fleets.

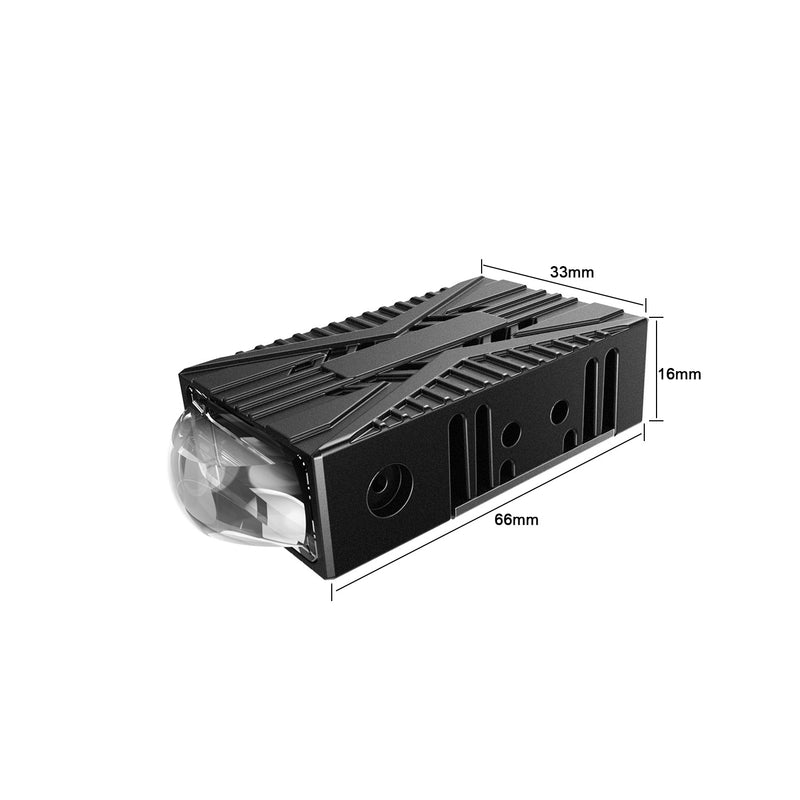

Ultra-Thin Grille Modules • Mini Size

Each light is engineered to disappear behind the grille while throwing a clean, controlled beam onto the road ahead. The compact 66×33×17 mm body slips into narrow grille slats and tight bumper openings, making it ideal for concealed installs on cars, SUVs, pickup trucks, and motorcycles. Three model options cover the most common use cases—6500 K white, 3000 K yellow, and tri-color mixing—so you can tune visibility and style without changing hardware. All three share the same robust electrical platform (10–30 V DC, 25 W class) using GC-7035 LEDs for high efficacy and tight color consistency.

High Power That Illuminates the Full View

Despite the tiny footprint, each module delivers stable, road-usable output. Tested actual power is 21.83 W (LG1606), 21.78 W (LG1607), and 21.47/21.77/19.95 W for LG1608 in W/Y/W+Y modes. Measured lumen performance is 807.7 lm (white), 884.7 lm (yellow), and 783.6 lm / 777.7 lm / 870.0 lm for LG1608 in W / Y / W+Y. Choose white (6500 K) for maximum clarity, yellow (3000 K) for fog and snow penetration, or the mixed 4000 K setting when you want the best balance of contrast and definition for all-weather driving.

Waterproof Fan Inside • Built for the Road

The thermal system pairs an aluminum heat sink with a sealed, waterproof cooling fan to move heat off the LEDs quickly, locking brightness at a steady level during extended use. The housing and interfaces are designed to IP67, so rain, slush, high-pressure car washes, and dusty work sites won’t shut your lights down. The result is stable output, reduced lumen sag, and a design life ≥30,000 hours, backed by an 18-month warranty to support both retail and fleet applications.

Easy to Wire • Broad Vehicle Compatibility

A 10–30 V DC input range means the lights are at home on 12 V passenger vehicles and 24 V commercial platforms. Draw is 2.0 ± 0.6 A @ 9 V per bulb equivalent, keeping the electrical load reasonable for OE harnesses and aftermarket auxiliaries. The compact in-line driver and simple two-wire connection make installs fast for shops and straightforward for DIY users, with ample slack for tidy routing behind fascia panels.

Compatible with Multiple Mounting Options

The low-profile body and bracket set are optimized for multi-scenario installation: behind the grille for a stealth DRL look, in bumper openings for a wide road wash, or on side vents for peripheral fill. The housing’s straight sides and flat base simplify aligning multiple units into clean rows, and the adjustable bracket angle lets you dial in beam aim without shims. This flexibility is ideal for dealers bundling kits across varied vehicle platforms.

Diverse Combinations • Varied Lighting Effects

Build the front signature your project needs. Run a uniform color across the grille, alternate white and yellow for a bold daytime signature, or use the LG1608-W+Y to create a tunable color temperature across the array. The system is designed to work with an optional control box and cornering lights, enabling synchronized effects and cornering-assist behavior—perfect for off-road trails, farm yards, warehouse lots, or depot yards. Dealers can offer modular bundles: pairs for narrow grilles or multi-unit bars for wide trucks.

Seven Lighting Modes (with Control Box)

With the add-on controller, you can access seven selectable modes tailored to different scenarios—steady white, steady yellow, mixed 4000 K, and a set of alternating/flash patterns suitable for auxiliary and show use (where regulations permit). That flexibility lets fleets standardize on one hardware SKU and configure behavior per vehicle role, while enthusiasts can swap modes for seasonal weather or weekend trail runs without changing hardware.

Tri-Color Precision for a Refined Grille Glow

The LG1608’s tri-color architecture delivers precise color bins for true 6500 K white, 3000 K amber-yellow, and a balanced 4000 K mix. Use it as a three-color constant-on illumination or as a three-color DRL signature, matching corporate or team colors without changing hardware. Carefully designed optics and LED layout keep the beam uniform so the grille “glow” looks premium rather than patchy, even when multiple modules are arranged across wide fascias.

Rugged Build • Tested and Certified

Each model is certified EMC (R10), CE, and RoHS, minimizing radio interference and meeting global compliance needs. The mechanical design absorbs vibration from rough roads and light off-road use, while sealed connectors and gaskets protect against corrosion. Packaging is optimized for wholesale and service operations: 24 sets per carton for efficient stocking and shipping, with consistent documentation and labeling for easy receiving.

In short, the Gen 2 LED Grille Lights pair stealthy packaging with real, measured output, IP67 ruggedness, and tri-color flexibility. Whether you’re outfitting retail builds, specialty upfits, or fleet vehicles, you get a small, dependable module that installs fast, runs cool, and scales from subtle DRL accents to multi-unit, high-impact grille arrays.
