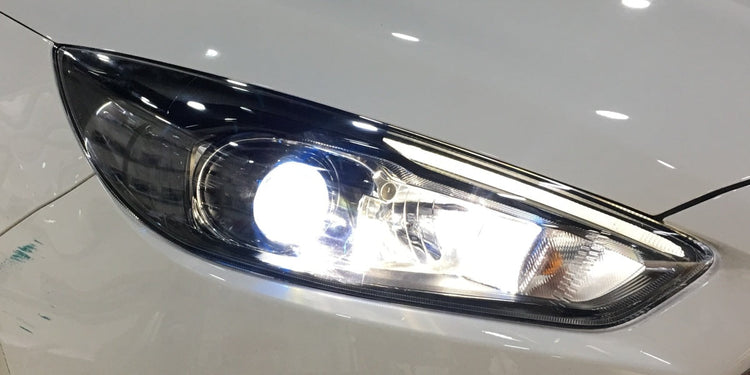

A Brief Overview of LED Automotive Headlights
LED automotive lights use light-emitting diodes (LEDs) as the light source. Thanks to their high efficiency, long service life, fast response, and reliable solid-state structure, LEDs have become a key direction in the evolution of automotive lighting. Starting from the basic structure of a single LED, this article summarizes the light-emission mechanism and highlights the main advantages of LED vehicle lighting in real-world automotive applications.
What Are LED Automotive Lights?
LED automotive lights refer to lamps and modules in a vehicle's interior and exterior lighting systems that use LED technology as the light source. They are widely applied in headlights, daytime running lights (DRLs), fog lights, turn signals, brake lights, reverse lights, as well as ambient/decorative lighting. Compared with traditional light sources, automotive-grade LED applications must also account for thermal management, EMC (electromagnetic compatibility), and a range of tests required under the vehicle's electrical environment.
Basic Structure of a Single LED
A single LED (light-emitting diode) typically consists of the following parts:
- LED chip (core): formed by p-type and n-type semiconductors, creating a PN junction in between.
- Electrodes and leads (anode/cathode):provide the electrical current path.
- Gold wire (bond wire):establishes electrical connection between the chip and electrodes.
- Reflector ring / reflector cup:helps concentrate light and improve optical output efficiency.
- Encapsulation material (e.g., epoxy resin):protects the chip and forms a transparent housing, improving vibration resistance and overall reliability.
In simple terms, the PN-junction chip is responsible for "emitting light," while the other components mainly handle conductivity, protection, and optical control.
Light-Emission Principle of LEDs
LED light emission is based on injection electroluminescence. When a forward voltage (forward bias) is applied across the PN junction, the following process occurs:
- Carrier injection: electrons and holes move toward the PN junction under the electric field and are injected into the junction region.
- Radiative recombination: electrons and holes recombine in the junction region, releasing excess energy as photons.
- Optical output: the generated photons pass through the encapsulation material and exit the device as visible light.
When the PN junction is under reverse voltage, carriers are difficult to inject, and the LED generally does not emit light.
How Emission Color Is Determined
The emission color of an LED is related to the semiconductor material's bandgap (Bandgap energy):
- Larger bandgap → higher photon energy → tends toward blue/violet light
- Smaller bandgap → lower photon energy → tends toward orange/red light
Because different semiconductor materials have different bandgaps, LEDs can produce different colors and spectral characteristics.
Key Advantages of LED Automotive Lighting
- Energy-saving and efficient: electrical energy is converted more directly into light, reducing power consumption and helping lower the vehicle's electrical load.
- More environmentally friendly: contains no mercury or similar hazardous substances; relatively low heat generation; waste can be recycled.
- Long service life: no filament structure, reducing failure risks such as burn-out; service life can be very long under appropriate current and voltage conditions.
- High brightness and strong durability: solid-state structure offers better resistance to vibration and impact; encapsulation helps prevent breakage.
- Compact size and high design flexibility: supports modular designs and more flexible styling, enabling more diverse lighting layouts and functions.
- Stable performance and convenient logistics: resin encapsulation is shock-resistant, making storage and transportation easier.
- High color purity: more vivid colors, more concentrated spectrum, and smaller wavelength deviation.
- Fast response: lights up quickly; when used in brake lights/tail lights, it can warn following vehicles earlier and improve driving safety.
Closing
From structure to mechanism, the essence of LED lighting lies in carrier injection and radiative recombination at the PN junction. With advantages such as high efficiency, durability, fast response, and strong design flexibility, LED automotive lighting has become a major direction for automotive lighting upgrades. As automotive-grade requirements (such as thermal management and EMC) continue to mature, LED applications are expected to expand further across vehicle lighting systems.
