LED Lighting Reflector Optical Systems: Types, Efficiency, and How to Choose the Best Optic for Your Needs

When evaluating LED lights on the market, it's clear that while these products may look different, they often serve similar purposes. The key components of any LED light, including the circuit board that generates the light, the housing that seals and dissipates heat, and the wiring that ensures power, are common across most models. However, what truly sets different lights apart is the optical system they use.

The optical system plays a crucial role in directing the light generated by the LED chip to the target area—whether that’s the road ahead or an off-road path. The efficiency of the optical system determines how much light is collected from the LED source and how effectively it's focused on the intended target. The design and performance of the optical system are what distinguish one LED light from another.

1. Why Optical Systems Matter

The goal of any optical system is to focus the light in such a way that it illuminates what is needed, without creating unwanted glare or wasted light. For example, if light is directed into the sky or directly in front of the vehicle, it can hinder visibility, especially in dusty or foggy conditions. This causes our eyes to adjust to the excessive brightness close to the vehicle rather than focusing on the target ahead. This is why high beams, or fog lights in particular, are not suitable for high-speed driving; they can disrupt vision and make it harder to see the road.

A well-designed optical system ensures that the light is focused on the target area and does not produce glare. This is crucial for safe driving, especially in challenging conditions where visibility is limited.

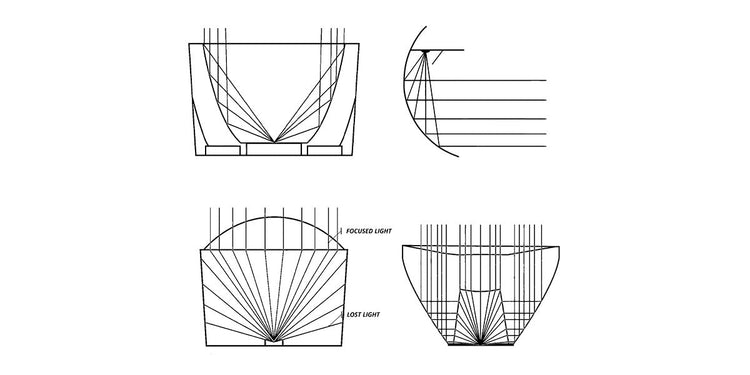

2. Different Types of Optical Systems

Several different types of optical systems are used in LED lights, each with its own advantages and disadvantages. Understanding the pros and cons of these technologies is key to selecting the right light for your needs.

Forward-Facing Reflectors

The forward-facing reflector is one of the oldest and simplest optical systems. It’s cost-effective and works by shining light directly out of the housing, making it commonly found in lower-cost LED lights. While simple, this system has a significant drawback: the light is not focused properly. Light that comes directly out of the LED chip is scattered, creating a large circle of unfocused light around the beam's center. This wasted light contributes to glare, which is especially problematic in dusty or foggy conditions.

For this reason, forward-facing reflectors are rarely used in modern automotive applications. However, they are still used in stadium lights, flashlights, and some off-road lights where high efficiency and precision are not the primary concern.

Half-Bowl Reflectors

The half-bowl reflector is an improvement over the forward-facing reflector. In this design, the LED light shines into only one half of the reflector, preventing much of the glare produced by the light. This setup is much more efficient and is commonly used in factory fog lights and some off-road lights. It allows for a more controlled beam pattern with less stray light, making it suitable for driving at moderate speeds.

Projector Lenses

Projector lenses, also known as solid optics, are another type of optical system. They completely cover the LED source with a lens that focuses the light in a specific direction. This design helps limit glare, as all the light must pass through the lens, making the system more controlled and focused.

However, projector lenses are not the most efficient system. The light that comes from the sides of the LED chip is wasted, as the lens can only focus light coming directly from the LED. Despite this, projector lenses are ideal when the beam pattern and sharp cutoff lines are more important than efficiency, which is why they are commonly used in fog lights and high-end off-road lights.

Hybrid Systems: Combining Reflectors and Projectors

Some engineers have designed hybrid optical systems that combine the best of both reflectors and projectors. In these systems, a reflector captures the light and focuses it with a projector lens in front. This hybrid approach allows for efficient light collection while maintaining the focus needed for a precise beam pattern. These systems are more complex and often more expensive, but they provide a great balance between light efficiency and beam control.

TIR (Total Internal Reflection) Optics

The TIR system is one of the most efficient optical designs available today. It uses a critical angle to bend and shape the light, capturing all the light from the LED source. The TIR system shines light with high intensity while minimizing losses. Unlike other designs, the TIR system eliminates the need for an outer lens, which reduces transmission losses and increases overall efficiency.

While some critics argue that TIR optics produce less smooth patterns, the technology can create highly focused, sharp beam patterns when needed. It’s particularly effective for spotlights, which need to shine far down the road. The TIR system is a favorite among companies that prioritize efficiency and focus, as it offers the best performance in terms of light distribution and glare reduction.

3. Choosing the Right Optical System

When selecting an LED light, it’s essential to consider the specific needs of your application. If you’re looking for a simple, cost-effective solution, a forward-facing reflector or half-bowl reflector might be suitable. For applications where beam control and sharp cutoff lines are more important, projector lenses or hybrid systems are better choices. Finally, if efficiency and glare reduction are your top priorities, TIR optics are the best option.

Each optical system has its own strengths and weaknesses. The right choice depends on factors like light efficiency, beam control, the intended application, and cost. By understanding the different optical systems available and how they affect light performance, you can make an informed decision when purchasing your next LED light.

In conclusion, the optical system in an LED light is the key to determining its performance. Whether you need a beam that shines far down the road, or a light that minimizes glare for safe off-roading, understanding the differences between reflector, projector, hybrid, and TIR optics will help you select the best product for your needs.
