Product Specifications

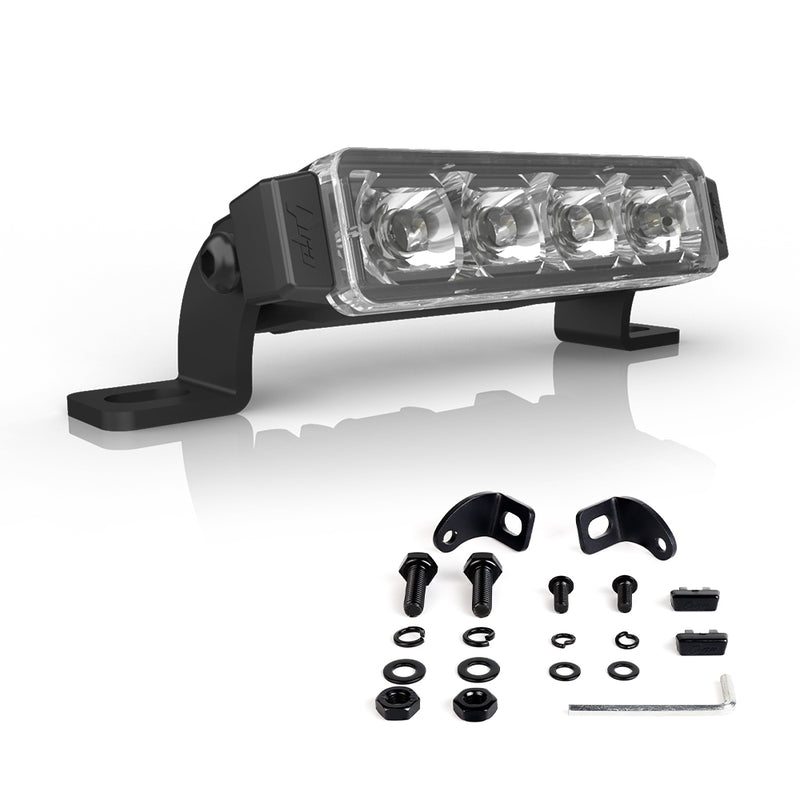

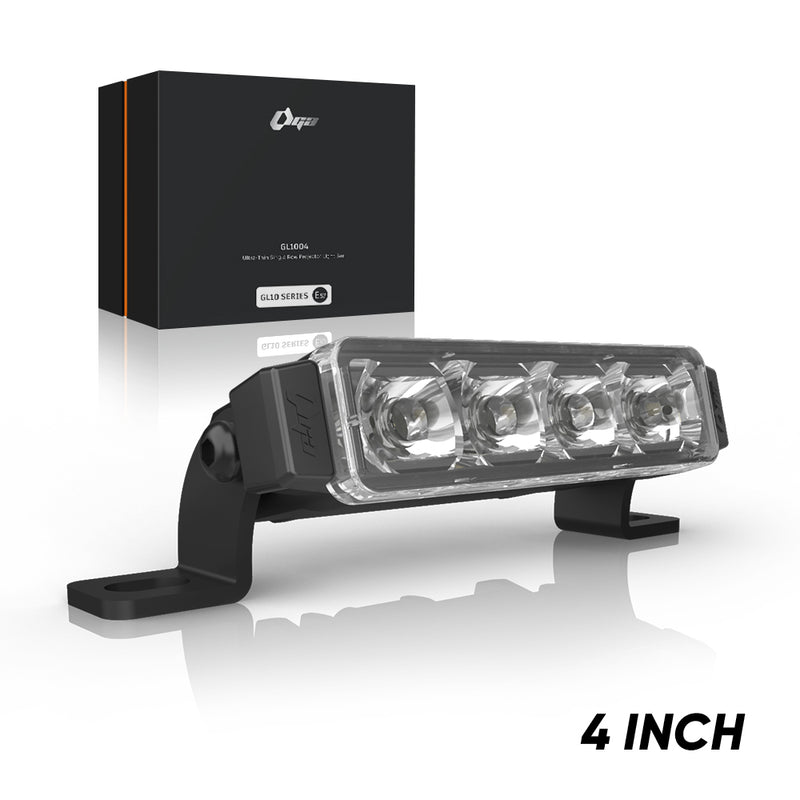

GL10 Series GL1004 Dual-Beam Ultra-Slim Expandable Universal LED Light Bar

GL10 Series GL1004-SP Spot Beam Light Bar is a compact ultra-slim LED light bar designed for users who need a focused auxiliary lighting solution with practical expandability. This model uses 4 × 9W LEDs as the main light source together with 3 × 1.5W LEDs for the backlight function. With 36W ± 10% power output, 2800LM ± 10% theoretical lumens, 1767LM ± 10% actual lumens, a spot beam pattern, 5500K ± 500K color temperature, 9-48V DC voltage compatibility, IP67 waterproof protection, and a 2-year warranty, it is suitable for off-road vehicles, trucks, utility vehicles, and customized lighting applications where a slim body, long-range visibility, and flexible installation are important.

Linkable LED Light Bar Design

The linkable structure gives the GL10 Series stronger flexibility for different vehicle lighting layouts. Multiple light bar modules can be connected to form a longer lighting system, allowing users to adjust the final length according to the installation space and lighting requirement. This design is especially useful for customers who do not want to be limited by one fixed light bar size. It also brings practical value for distributors and modification workshops, because the same series can support different vehicle projects, from compact front grille installations to wider bumper or roof rack lighting setups.

Replaceable Modular Light Bar Design

The GL10 Series is designed with a replaceable modular structure to make maintenance easier during long-term use. When one section of the light bar is damaged, users can identify the affected module, remove it from the connected lighting system, install a compatible replacement unit, and test the light bar after powering it on. This helps reduce replacement cost because the entire light bar does not need to be changed when only one module has an issue. For off-road vehicles and work vehicles that often operate in demanding environments, this modular repair concept provides better serviceability and more practical long-term value.

Spot Beam Pattern For Focused Illumination

The GL1004-SP version is designed with a spot beam pattern, making it suitable for applications that require a more concentrated lighting direction. Compared with a wider beam style, the spot beam helps project light farther ahead and supports better forward visibility in darker environments. This makes it a practical choice for off-road driving, night travel, trail use, and auxiliary lighting setups where distance lighting is more important than wide-area coverage. With 1767LM ± 10% actual lumens and 5500K ± 500K color temperature, this model provides a clean and focused lighting effect for drivers who need stronger visual support ahead of the vehicle.

25mm Ultra-Slim Profile

The GL10 Series adopts a 25mm ultra-slim body profile, helping the light bar fit more naturally into narrow or limited installation positions. The slim structure reduces the bulky appearance often found in traditional light bars and creates a cleaner installed look on vehicle grilles, bumpers, roof racks, and other exposed areas. This low-profile design is also helpful for customized vehicle builds because it can match different exterior styles without looking oversized. For B2B customers, the compact body makes the product easier to recommend across a wider range of off-road, pickup, SUV, and utility vehicle applications.

Intelligent Temperature Control And Backlight Display

The intelligent temperature control system supports more stable operation by helping manage heat during use. This is important for ultra-slim LED light bars because the compact body requires a reliable thermal design to maintain performance and protect internal components. In addition to functional lighting, the GL10 Series also includes a backlight display feature that gives the product a stronger visual identity. The combination of thermal management and backlight styling allows the light bar to offer both dependable performance and an attractive appearance, making it suitable for customers who value practical lighting and vehicle customization at the same time.

IP67 Waterproof Protection

The GL1004-SP is rated IP67 for ingress protection, helping it perform reliably in outdoor and vehicle-mounted environments. This protection level supports resistance against dust and water exposure, which is important for light bars installed on bumpers, grilles, roof racks, or other exposed positions. Whether used during rainy weather, off-road driving, vehicle washing, or dusty road conditions, the sealed construction helps protect the internal light source and electronic components. This makes the product more dependable for users who need auxiliary lighting that can handle real outdoor conditions instead of only clean road use.

Core Parts Breakdown

The GL10 Series is built with a practical combination of housing structure, LED light source, optical design, and internal driver control. The 4 × 9W main LEDs provide the primary spot beam output, while the 3 × 1.5W LEDs support the backlight function. The housing helps protect the product and contributes to heat dissipation, while the optical structure helps control the beam direction for more usable forward illumination. The internal driver control supports stable electrical operation under the 9-48V DC working range. Together, these core parts help the light bar deliver a balance of focused lighting, durability, and reliable performance.

Multiple Installation Positions

The GL10 Series can be installed in different vehicle positions depending on the lighting purpose and vehicle design. It can be mounted near the front bumper for forward auxiliary lighting, integrated into the grille area for a cleaner appearance, or installed on the roof rack for a higher lighting position. Its ultra-slim and linkable structure makes it suitable for different off-road and utility vehicle builds. This installation flexibility increases the product’s value for wholesalers, distributors, and modification workshops because one light bar series can meet multiple application needs across different customer groups.
