Product Specifications

E6 Series H13 Compact LED Headlight Bulbs

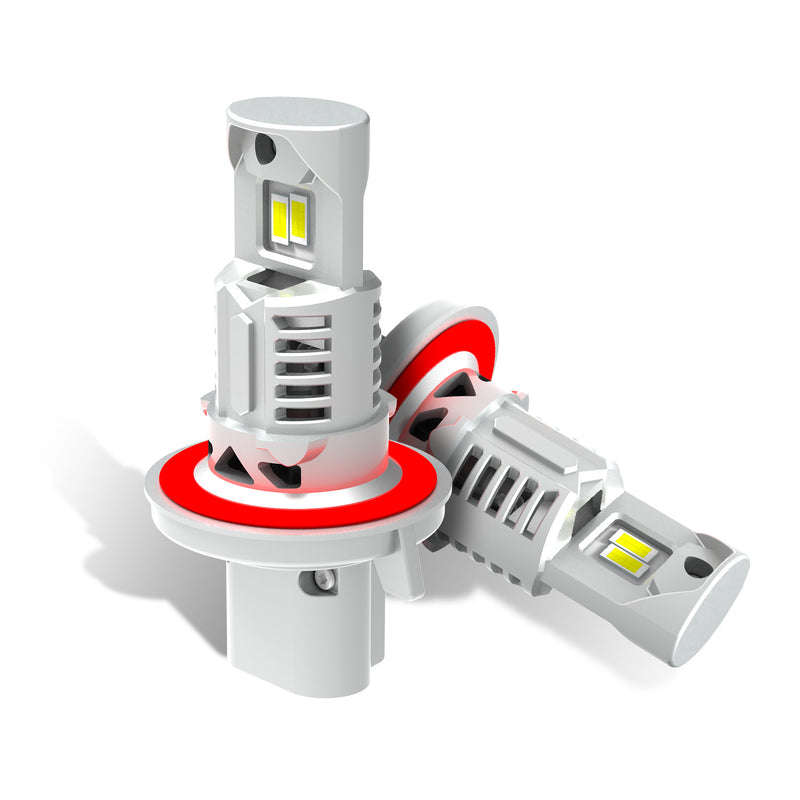

The CN360 E6 Series H13 brings high and low beam lighting together in a compact LED headlight bulb. Eight customized 7035 LED chips provide 6500K white light, supported by an aluminum cooling structure and an integrated fan. The bulb operates within DC 11–18V and features a non-polar electrical connection.

Eight Customized 7035 LED Chips

The H13 version uses eight customized 7035 LED chips on its lighting assembly. Their compact arrangement places the emitting surfaces within the headlamp's optical system, where the reflector and lens shape the resulting beam. The LED section is designed as part of the E6's narrow replacement-bulb profile.

A 6500K color temperature gives both operating modes a white light appearance. The chip configuration supports the specified high and low beam functions, while the final distribution on the road depends on correct bulb placement and the geometry of the original headlamp assembly.

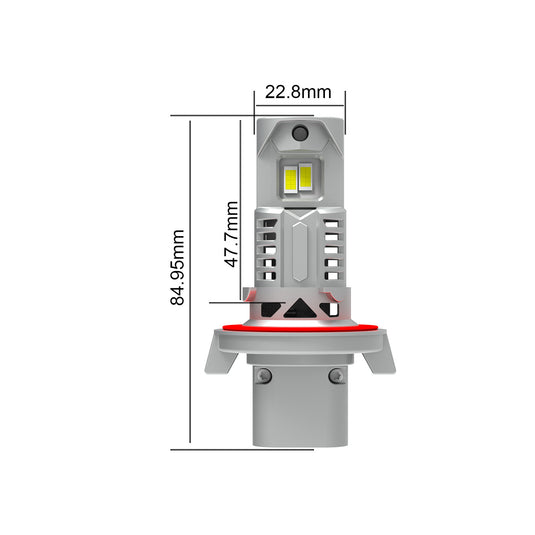

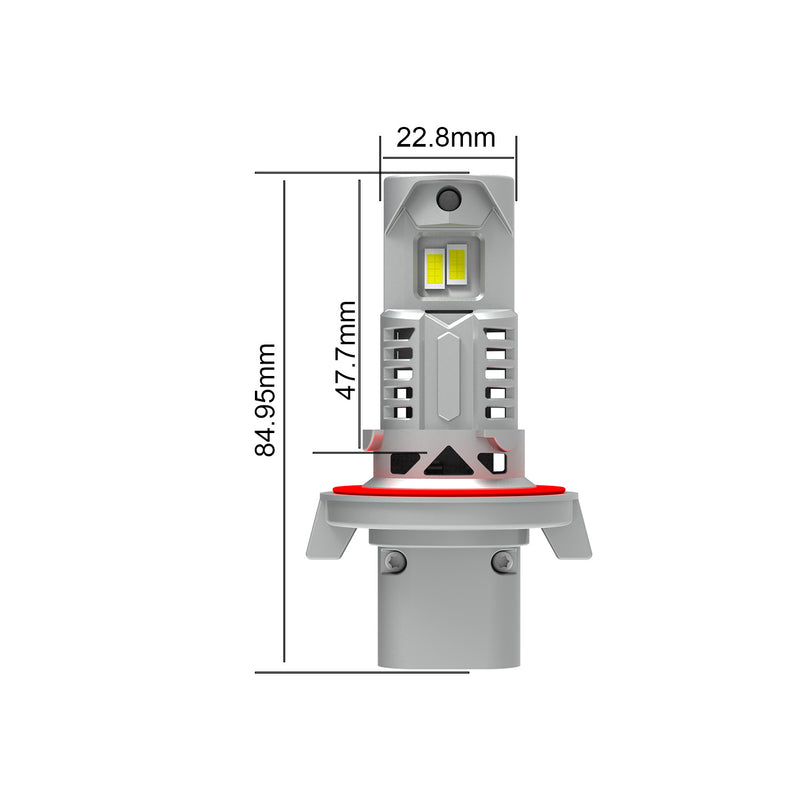

Compact Design with a Fixed H13 Collar

The E6 structure keeps the lighting blade, collar, and cooling components close together. This compact layout supports installation in compatible housings where rear space is limited. The H13 mounting collar is fixed and non-adjustable, establishing the intended orientation when correctly seated in the matching holder.

Check the original bulb designation, connector, retention arrangement, and available rear clearance before installation. The non-polar connection simplifies electrical polarity matching. The bulb should sit securely in the holder, with the connector and surrounding hardware clear of the cooling assembly.

Defined High and Low Beam Output

The high beam is specified at 2,214 lm initially and 1,966 lm when stable, with corresponding power figures of 25.31 W and 24.81 W. Low beam output is 1,723 lm initially and 1,477 lm when stable, with power of 25 W initially and 24.58 W when stable.

These figures describe the two beam modes separately and distinguish initial from stable operation. The listed beam angle is 360°, while the complete headlamp optics shape the final road pattern. After fitting, check both modes and confirm that the headlamp aim suits the vehicle.

Advanced Cooling System

An aluminum structure, integrated fan, and thermal path work together to manage heat from the LEDs. The metal components conduct heat toward the cooling section, and the fan moves air around the available cooling surfaces. This arrangement keeps the thermal components within the compact E6 assembly.

The fan needs clearance to operate as intended. Check the rear housing space with the bulb fully installed, including its connector and retention hardware. Refit the original cover with the airflow openings unobstructed and without placing pressure on the bulb or cooling components.

Electrical Specification for Everyday Use

The operating range is DC 11–18V, with an input current specification of 2 ± 0.2 A at 13.5V. Match these requirements to the vehicle's headlight circuit. The bulb's non-polar design addresses connection polarity, while the matching H13 socket and secure collar provide the mechanical fit.

The original headlamp housing and seals remain part of the complete installation. Check normal switching between high and low beam through the vehicle's controls, then inspect the resulting light pattern. Correct electrical operation and optical alignment are both needed for the intended headlight function.

H13 Application within the E6 Range

This version is intended for compatible headlamps requiring the H13 configuration. Select it according to the original bulb specification and available installation space. Its compact construction, eight-LED arrangement, and separate high and low beam performance figures provide the key information for assessing the E6 H13 for the intended vehicle.
