Product Specifications

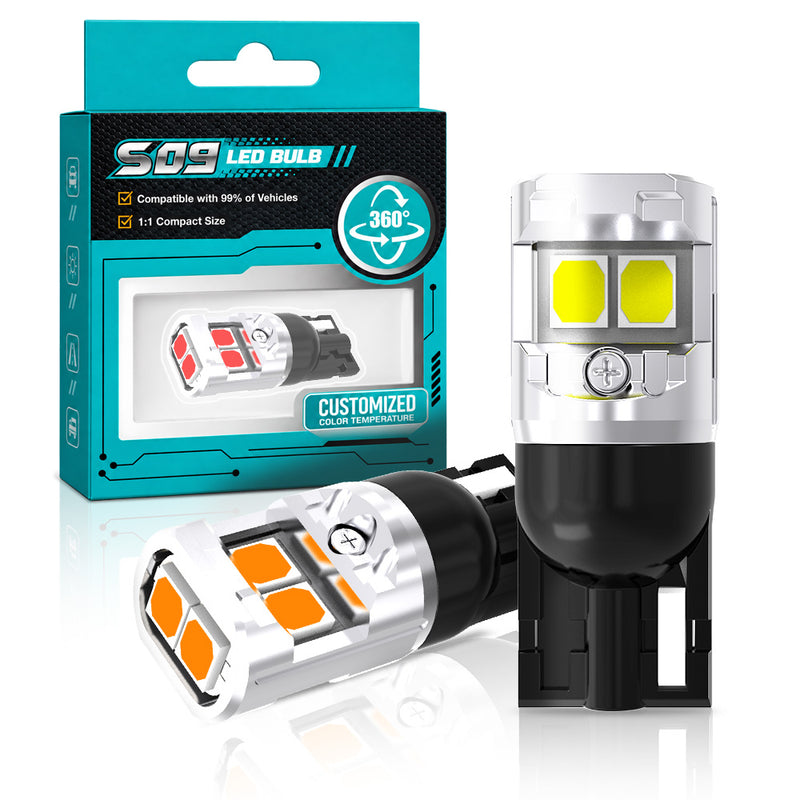

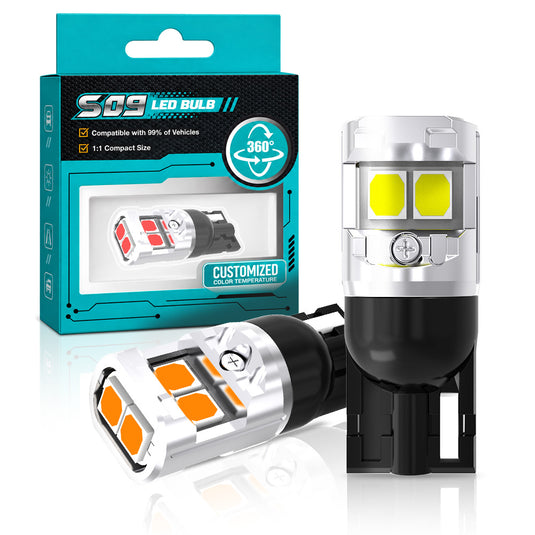

S09 Series T10 LED Interior Bulbs with 6 SMD LEDs

The CN360 S09 Series T10 brings six 2835 SMD LEDs into a compact bulb for compatible vehicle interior lighting. White, yellow, and red options share the specified DC 9–18V operating range, with separate initial and stable current and light-output figures for assessing the intended installation.

Interior Lighting with a T10 Connection

The T10 version is intended for vehicle interior lamps that use a compatible T10 connection. Its compact format brings the LED assembly and socket connection together in one bulb. The original lamp holder, lens, and housing determine where it can be installed and how the light reaches the cabin.

Choose the light color to suit the intended interior lamp and the illumination required in that position. The emitting section works together with the original lens, so bulb output and the appearance of the installed light should be considered as related but different characteristics.

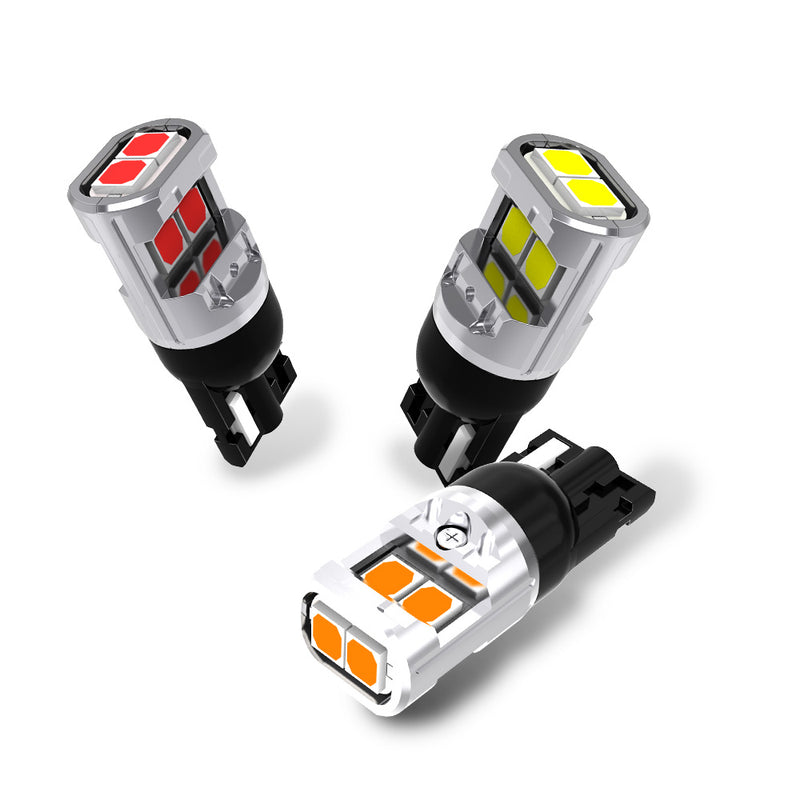

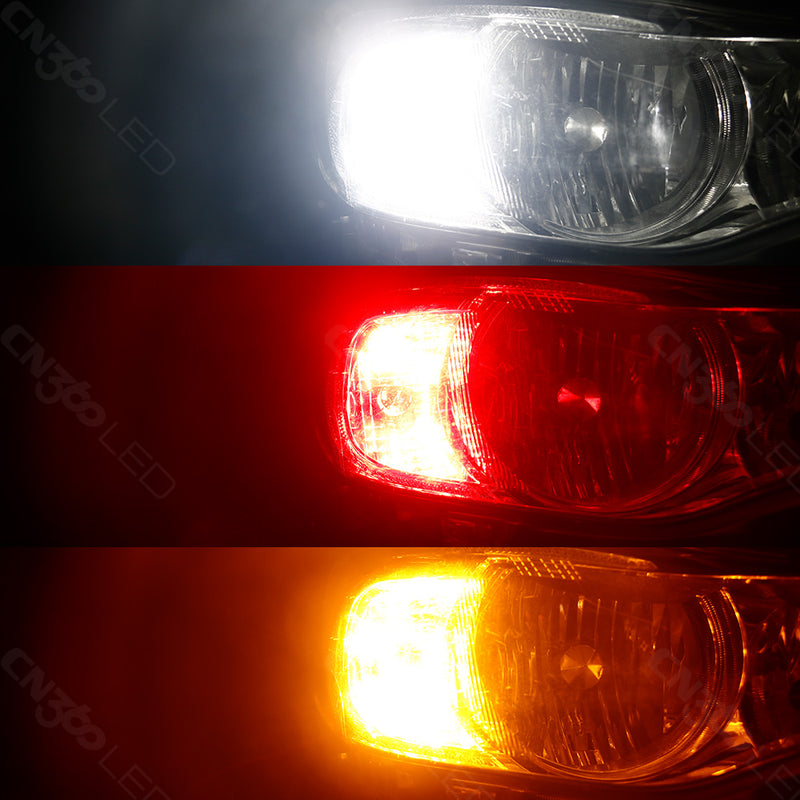

White, Yellow, and Red Light Options

White, yellow, and red versions are available. Each bulb is selected for its required color; these options do not indicate automatic color switching. The choice should follow the original lamp function, lens color, and the lighting requirements of the intended vehicle position.

For interior use, assess the selected color through the actual lamp cover. A clear cover and a tinted or textured cover can give different visual results from the same bulb. Confirm that the light reaches the area intended to be illuminated once the bulb is seated.

6 LED Lighting Configuration

The T10 configuration uses 6 leds with 2835 SMD light sources. This arrangement forms the lighting section of the bulb and should be matched to the corresponding socket version. The LED specification identifies the light-source configuration without assigning an unsupported chip brand.

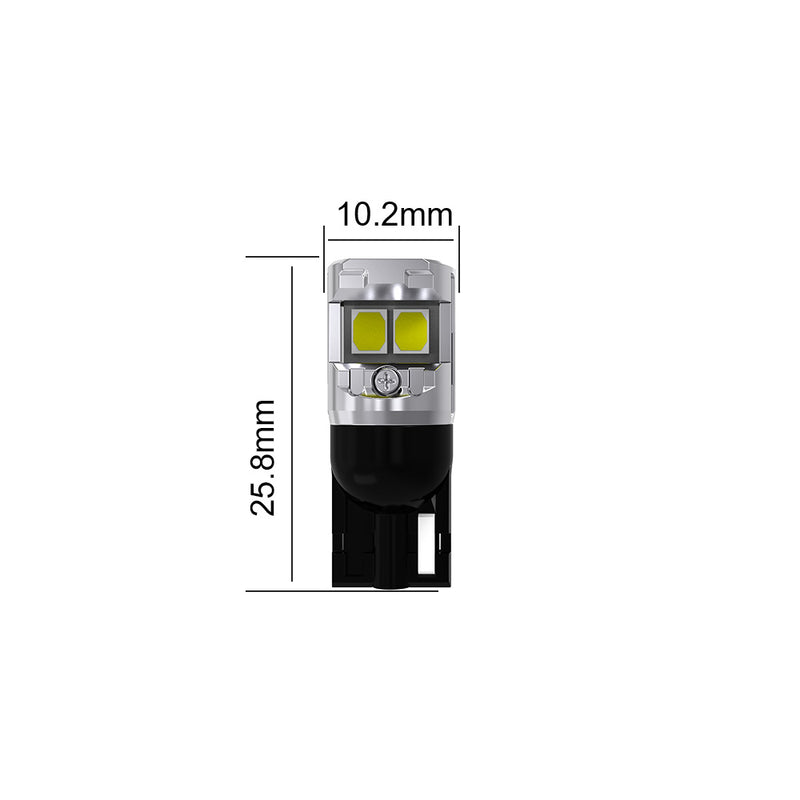

The compact lighting section sits within the original interior lamp assembly. Its position relative to the cover influences where the light is delivered. Check the space around the complete bulb, including the LED head, so that the original cover can be fitted without pressing on the light sources.

Initial and Stable Light Output

Each of the three colors has a listed initial output of 560 lm ± 10% and a stable output of 250 lm ± 10%. The initial and stable values are shown separately so the operating states remain clear when comparing the bulb with the requirements of the intended lamp.

Initial and stable output describe different operating states of the selected bulb. They are not two selectable brightness settings. Use the corresponding current and light-output values together when assessing this version, and keep the color-specific specification associated with the correct bulb.

Electrical Specifications at 13.5V

Input current is specified at 0.38 ± 0.04 A initially and 0.19 ± 0.04 A when stable, measured at 13.5V. These electrical values apply to the listed color options. Match the bulb to a compatible lamp circuit within its DC 9–18V operating range.

The specified test voltage identifies the condition used for the current values. The operating range describes the supply range for this version. Matching both the socket and electrical requirements helps establish suitability for the intended installation.

T10 Socket and Application Matching

Select the T10 connection required by the original lamp, with T10 identifying this particular S09 LED configuration. Socket compatibility, circuit requirements, and space around the bulb should all be checked together. Secure seating provides the mechanical connection and establishes the position of the lighting head.

After fitting, confirm normal illumination through the vehicle's controls and check that the original cover closes correctly. For circuits with lamp monitoring or additional control functions, assess operation in the actual vehicle. A socket match alone does not establish compatibility with every electrical control system.
