Product Specifications

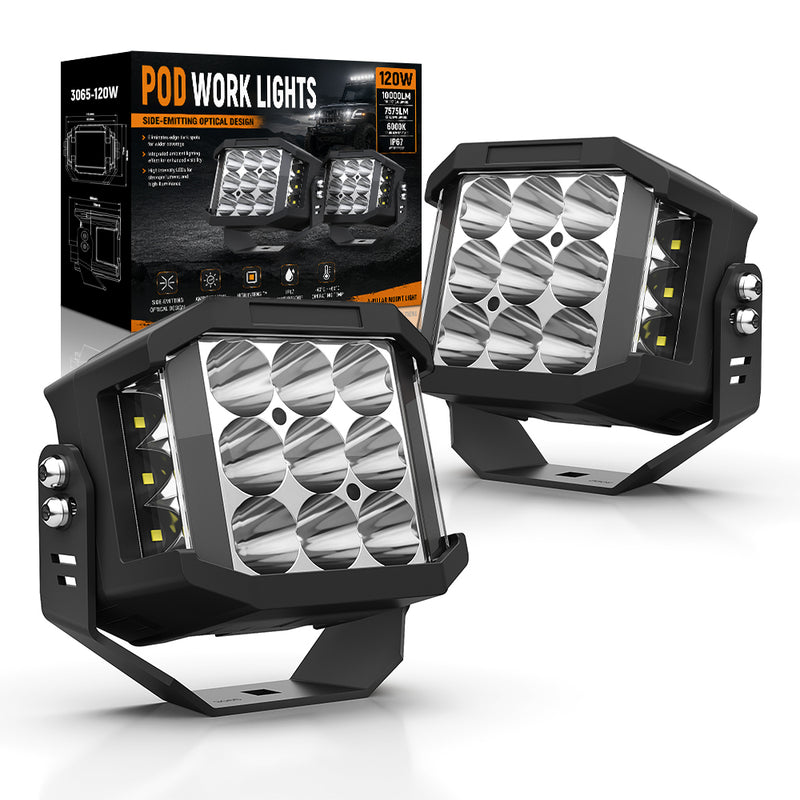

3065 Amber DRL LED Pod Work Lights

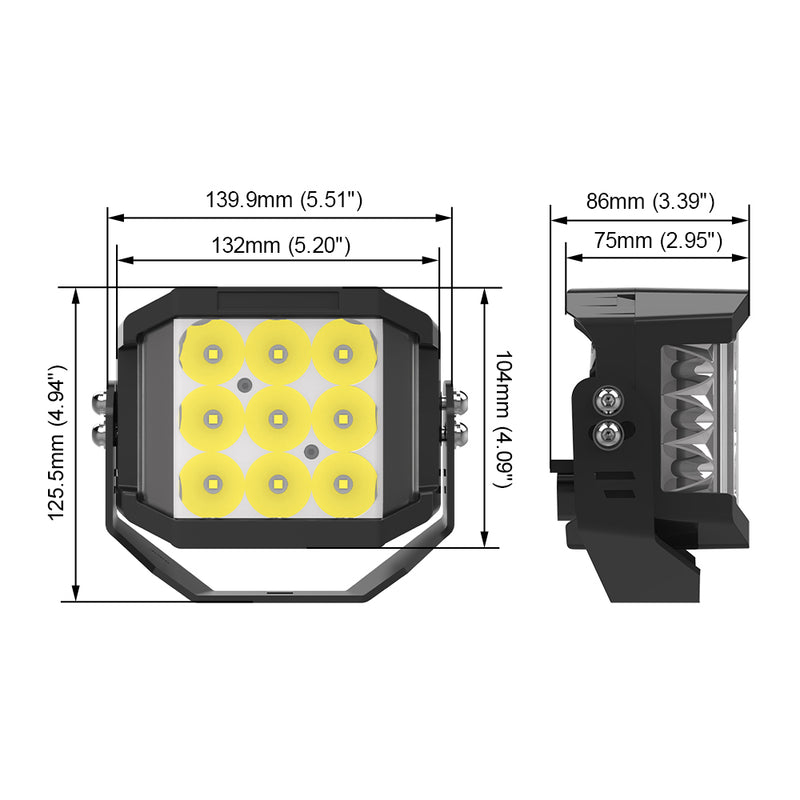

The 3065 Amber DRL LED Pod Work Lights bring a larger 5.20-inch pod-light format to applications that need a focused white spot beam, added side-emitting optics, and integrated amber DRL styling. The primary white output is specified at 120W ± 10%, with a stated actual light output of 7,575 lm ± 10%. Its 5.20 × 3.39 × 4.94 in W × D × H dimensions provide a substantial work-light presence while retaining an adjustable bracket for directional aiming.

High Power Output

The 3065 uses twelve 10W HM LEDs together with sixteen 0.5W LEDs. The specified output is 10,000 theoretical lumens and 7,575 actual lumens, each with a ±10% tolerance. Its 6000K ± 500K white main beam is designed around a focused spot-lighting role for long-range work-light use. The 120W ± 10% configuration gives this larger pod light a strong forward-lighting specification while maintaining the same amber DRL and side-emitting design language as the compact option.

Side-Emitting Optical Design

In addition to the forward-facing spot optics, the 3065 incorporates side-emitting optical elements to add illumination along the sides of the main beam. This helps support a broader working view around the immediate area of the vehicle or equipment without changing the supported spot-beam classification of the primary light. The arrangement is useful for mounting positions where forward distance lighting and nearby peripheral illumination are both relevant to the task.

Integrated Amber DRL

Integrated vertical amber DRL strips frame the left and right sides of the 3065 lamp face. The amber lighting creates a defined perimeter effect around the central white reflector array and gives the larger pod a recognizable illuminated appearance. The white spot beam remains the main working-light function, while the amber DRL adds a distinctive visual accent that complements the angular housing design.

IP67 Protection

The 3065 is rated IP67 for use in wet and dusty work-light environments. This ingress-protection rating supports use on vehicles and equipment that may encounter rain, mud, splashes, and outdoor operating conditions. The complete installation should use wiring, connectors, mounting hardware, and sealing practices appropriate to the intended environment, particularly where the light will operate on machinery or vehicles exposed to frequent vibration, debris, or weather.

Focused Spot Beam

The main white beam is specified as a spot pattern with a stated 1 lux distance of 280 m. This longer-distance optical role is intended to place focused light ahead of the vehicle or equipment rather than provide a broad flood-beam pattern. It can support off-road, utility, agricultural, construction, and other work-equipment applications where the light can be aimed according to the available mounting position and the required forward viewing area.

Product Highlights

A die-cast aluminum alloy housing provides the structure for the 3065 pod-light body. Cooling fins are integrated into the exterior to support heat dissipation around the LED system during operation. The larger body gives the light a substantial work-light profile while retaining the cooling-fin design needed to support its 120W specified configuration. Its angular outer form also frames the front reflector array and amber DRL strips in a clean, purposeful layout.

The 3065 is specified with twelve 10W HM LEDs and sixteen 0.5W LEDs. This LED arrangement supports the white forward spot beam while the amber DRL strips create a separate illuminated perimeter at the sides of the lamp face. The central reflector layout and the amber side accents make the lighting functions easy to distinguish: focused white working illumination at the front and amber DRL styling around the outer edges.

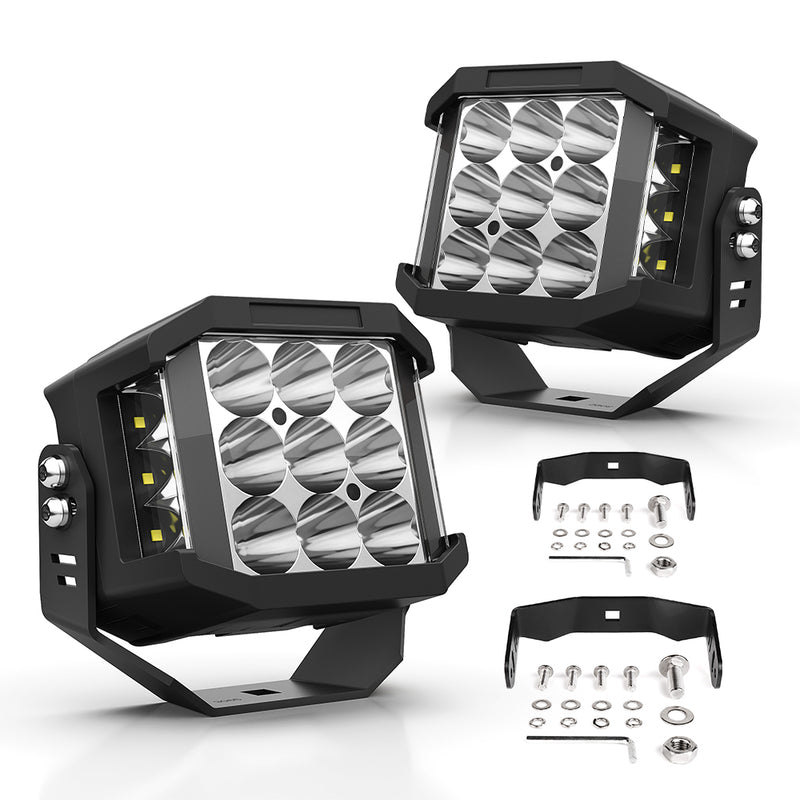

An adjustable mounting bracket lets the 3065 be positioned for the lighting direction required by the application. The bracket and side fasteners provide flexibility when setting the beam angle on a bumper, roof, grille, rack, work body, or equipment mount. Confirm physical clearance for the lamp body, mounting bracket, hardware, wiring, and intended beam path before selecting the final installation location.

The black angular housing, protected front optics, and bracket-mounted construction give the 3065 a robust work-light appearance. The design brings together a larger reflector array, side-emitting optical elements, amber DRL strips, and a focused white spot beam in a single compact auxiliary-light structure. It is a strong visual fit for installations where both practical illumination and a distinctive lamp appearance are important.

Applications

The 3065 Amber DRL LED Pod Work Lights can be considered for off-road vehicles, 4×4 vehicles, trucks, utility vehicles, agricultural machinery, construction equipment, and other work-light applications. Its 10–30V DC compatibility, focused white spot beam, adjustable bracket, and 280 m 1 lux specification make it suitable for projects where the electrical system, mounting arrangement, and intended lighting purpose have been confirmed.
