Product Specifications
|
ITEM 4005-W 4005-3M-W |
SELLING UNIT Pair |
|
MOUNTING Side Mounting Brackets |
WIRING LENGTH OPTIONS 0.5 m / 3 m |
|
DIMENSIONS 6.23 × 2.60 × 2.00 in |
LED SOURCE – LOW BEAM 2 × 30W 3570 LEDs |
|
LED SOURCE – HIGH BEAM 1 × 30W 3570 LED |
POWER – LOW BEAM 60W ± 10% |
|
POWER – HIGH BEAM 30W ± 10% |
POWER – LOW BEAM + HIGH BEAM 90W ± 10% |
|
THEORETICAL LUMENS – LOW BEAM 2,700 lm ± 10% |
THEORETICAL LUMENS – HIGH BEAM 1,800 lm ± 10% |
|
THEORETICAL LUMENS – LOW BEAM + HIGH BEAM 4,500 lm ± 10% |
EFFECTIVE LUMENS – HIGH BEAM 2,520 lm ± 10% |
|
EFFECTIVE LUMENS – LOW BEAM + HIGH BEAM 2,720 lm ± 10% |
BEAM MODES Low Beam / High Beam / Low Beam + High Beam |
|
COLOR TEMPERATURE 6,700K ± 500K |
INPUT VOLTAGE DC 10–30V |
|
INPUT CURRENT – HIGH BEAM 4.5A at 12V |
INPUT CURRENT – LOW BEAM + HIGH BEAM 5.75A at 12V |
|
INGRESS PROTECTION IP67 |
WARRANTY 2 Years |

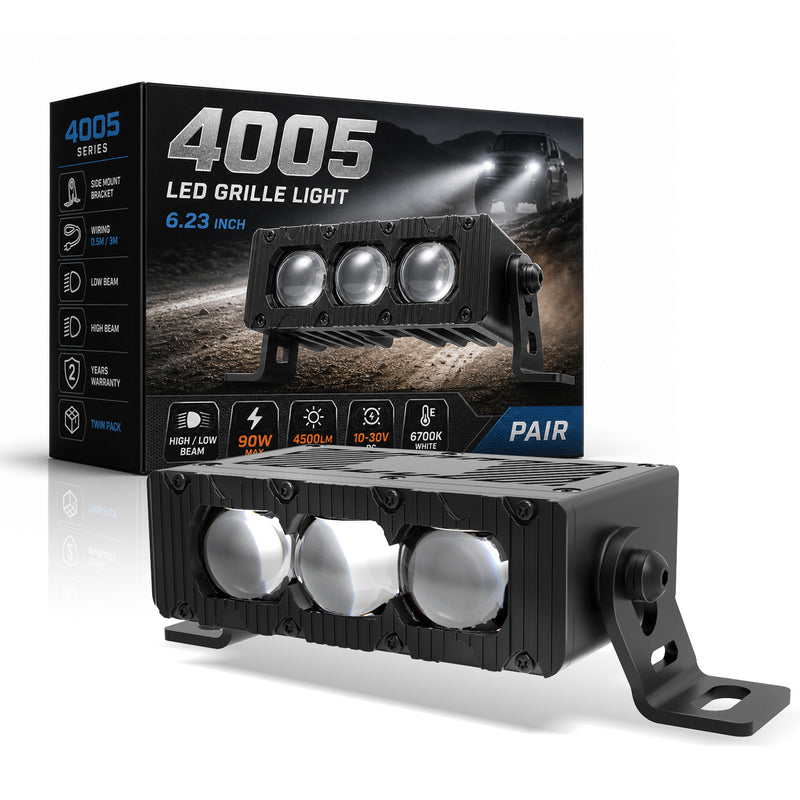

4005 Series LED Grille Light
The 4005 Series LED Grille Light is a compact three-projector auxiliary-lighting system supplied as a pair for grille-oriented vehicle applications. The grille-light body combines two Low Beam LED positions with one dedicated High Beam LED position, creating a clear optical arrangement within a compact housing. Low Beam, High Beam, and Low Beam + High Beam modes provide different lighting functions without changing the shared product format. Two wiring-length options are available, allowing the same grille-light pair to suit either a shorter 0.5 m route or a longer 3 m route.
Three-Projector Optical Layout
The grille-light body uses two 30W 3570 LEDs for Low Beam and one 30W 3570 LED for High Beam. This three-projector arrangement separates the low- and high-beam functions within a 6.23-inch grille-light form. The two Low Beam LED positions create a broad, controlled lighting pattern, while the dedicated High Beam LED position adds a more concentrated forward-lighting function. The shared color temperature is specified at 6,700K ± 500K, giving the product a cool white appearance across the available beam modes.
IP67 Protection and Vehicle Voltage Compatibility
The 4005 Series LED Grille Light is rated IP67 for ingress protection and is specified for a DC 10–30V electrical system. Input-current data is provided by operating mode: 4.5A at 12V for High Beam and 5.75A at 12V for Low Beam + High Beam. These documented electrical values support configuration of the grille-light system within the stated voltage range while retaining distinct high-beam and combined-beam operating figures.

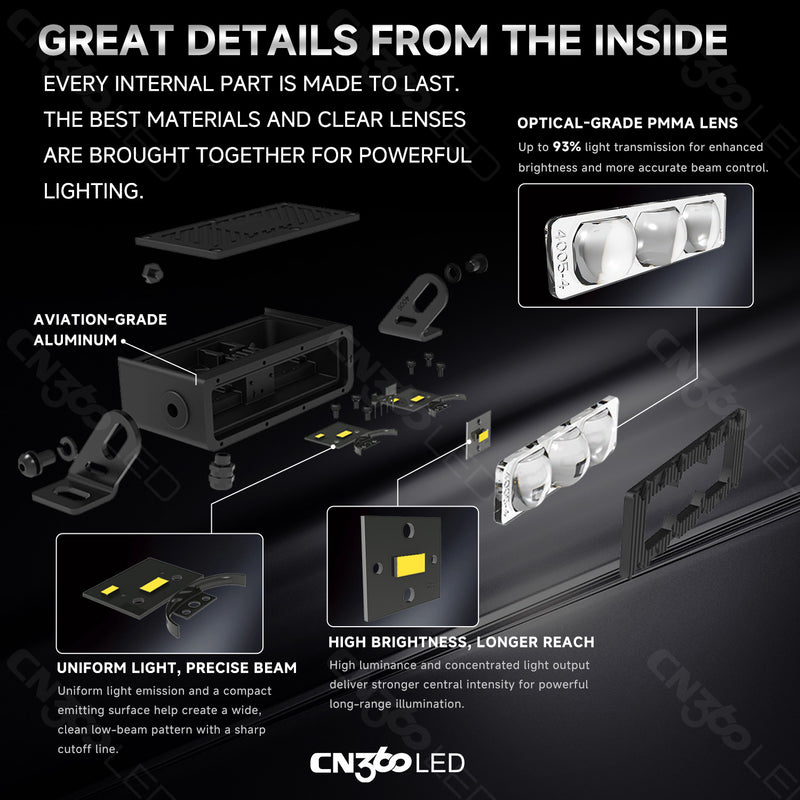

Aluminum Housing and PMMA Lenses
An aluminum housing and PMMA optical lenses support the compact grille-light form and its defined low- and high-beam optical positions. The three front lenses keep the individual emitters visually distinct, while the side mounting brackets create a practical mounting arrangement for grille applications. The design focuses on a compact architecture, clear optical separation, and mode-specific lighting rather than relying on broad brightness comparisons or unqualified performance claims.

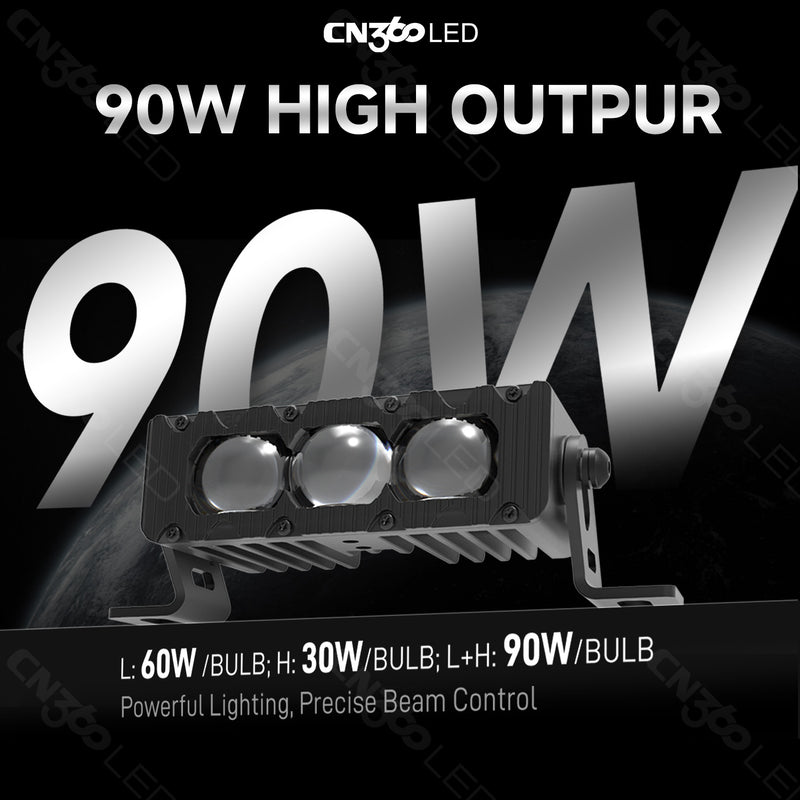

90W Combined Output
Power and lumen values are organized by beam mode. Low Beam is rated at 60W ± 10%, High Beam is rated at 30W ± 10%, and the Low Beam + High Beam mode is rated at 90W ± 10%. The theoretical lumen values are 2,700 lm ± 10% for Low Beam, 1,800 lm ± 10% for High Beam, and 4,500 lm ± 10% for Low Beam + High Beam. Effective-lumen data is listed at 2,520 lm ± 10% for High Beam and 2,720 lm ± 10% for Low Beam + High Beam. The mode-specific figures make it easier to compare the three available operating arrangements.

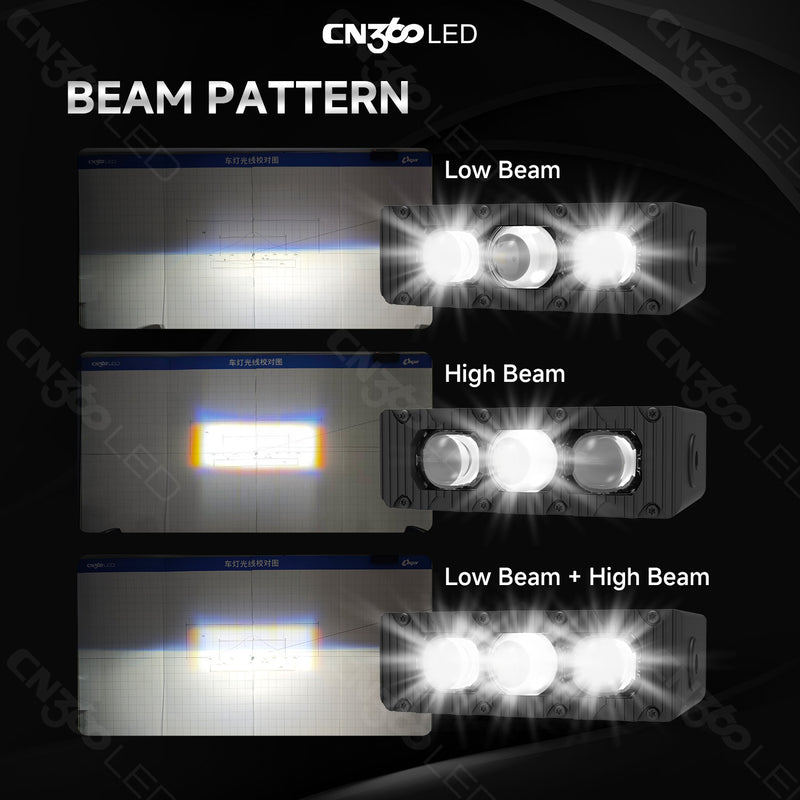

Low, High, and Low + High Beam Modes
The three selectable beam arrangements let the grille light serve distinct lighting roles. Low Beam uses the two dedicated Low Beam LED positions. High Beam uses the dedicated High Beam LED position. Low Beam + High Beam combines the available LED positions in one operating mode and uses the stated 90W ± 10% configuration. This clear separation of functions gives the product a structured high/low lighting layout in a compact grille-light body.

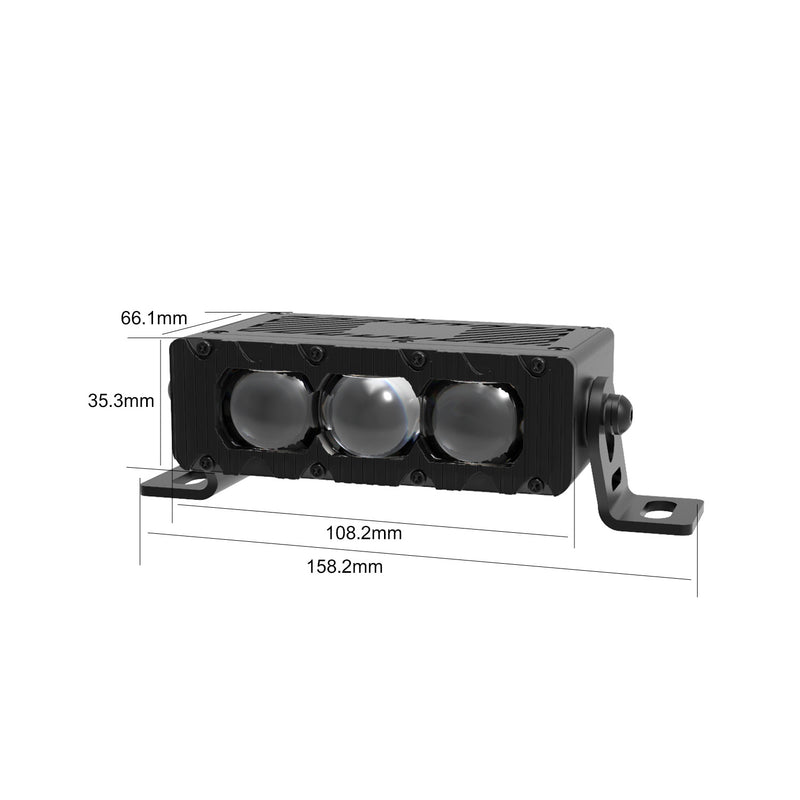

Compact Grille Integration

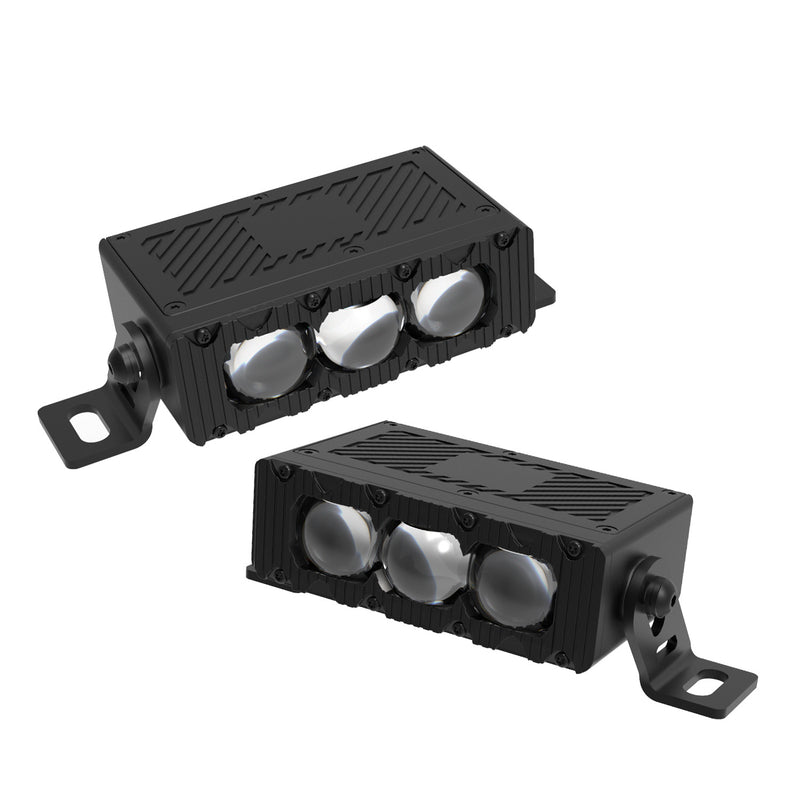

At 6.23 × 2.60 × 2.00 in, the 4005 Series LED Grille Light is sized for a compact grille-oriented installation. The product is supplied as a pair with side mounting brackets, allowing the two lights to be positioned as a matched set. Its low-profile format helps create an orderly lighting layout around the grille area while providing a dedicated location for auxiliary illumination. Vehicle grille structure, accessory clearance, electrical routing, and applicable local requirements should be confirmed for the intended installation.
Choose the Wiring Length
Select the 0.5 m wiring-length option when a shorter connection route is appropriate, or the 3 m wiring-length option when the installation requires additional lead length. Both choices use the same 4005 Series LED Grille Light pair, the same side mounting-bracket arrangement, and the same mode-specific optical and electrical specifications. The wiring length is the only difference between the two choices, making it straightforward to select the configuration that best suits the planned vehicle wiring route. A two-year warranty supports the shared product range.
