Product Specifications

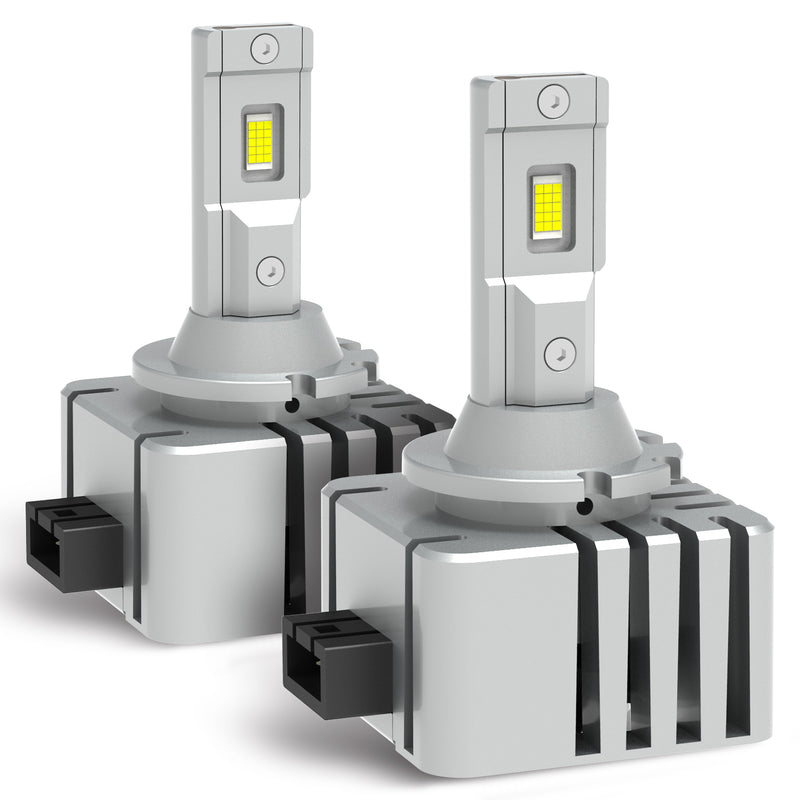

PRO-D Series D1 LED Bulb for HID Xenon Headlights

The PRO-D1 is the D1 configuration in the PRO-D Series, developed as an LED upgrade solution for headlight systems using HID or xenon light-source formats. It is designed for B2B customers who need a product that combines a familiar D1 form factor with a modern LED-lighting structure. The PRO-D1 uses two customized 8045 LED chips with a 45 V LED-module specification and a 6,000 K color temperature. Its stated operating voltage is AC/DC 90 ± 10 V, while the stated input current is 3.2 ± 0.1 A at 13.5 V. With 35 W ballast-input power, the product is positioned for distributors, installers, wholesale buyers, and OEM/ODM programs looking to build or expand an HID/xenon-to-LED headlight-upgrade range.

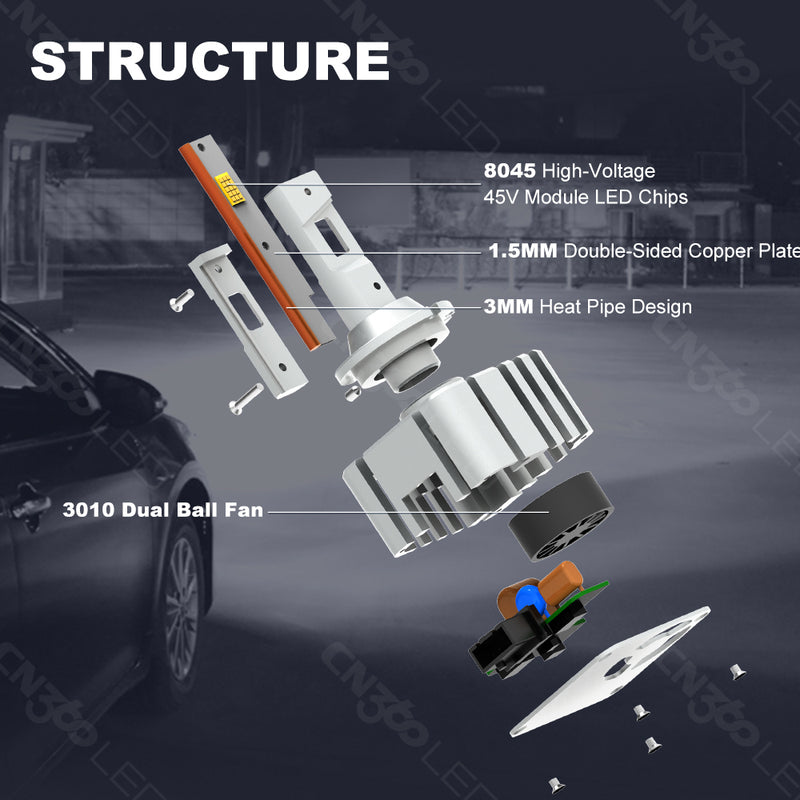

Structure

The PRO-D1 structure brings the light source, heat-transfer parts, cooling system, and connection area together in a compact D1-format product. Its two customized 8045 LED chips are the core light-emitting components, while the supplied promotional material presents a 45 V LED-module configuration for the series. Behind the chip area, the product uses a 1.5 mm double-sided copper plate and a 3 mm heat-pipe design to support thermal transfer through the bulb body. This layered structure is intended to create a stable base for the LED chips while preserving a form suitable for D1 headlight applications. For B2B customers, the result is a product concept that can be positioned as a complete LED upgrade unit rather than only a replacement light-emitting component.

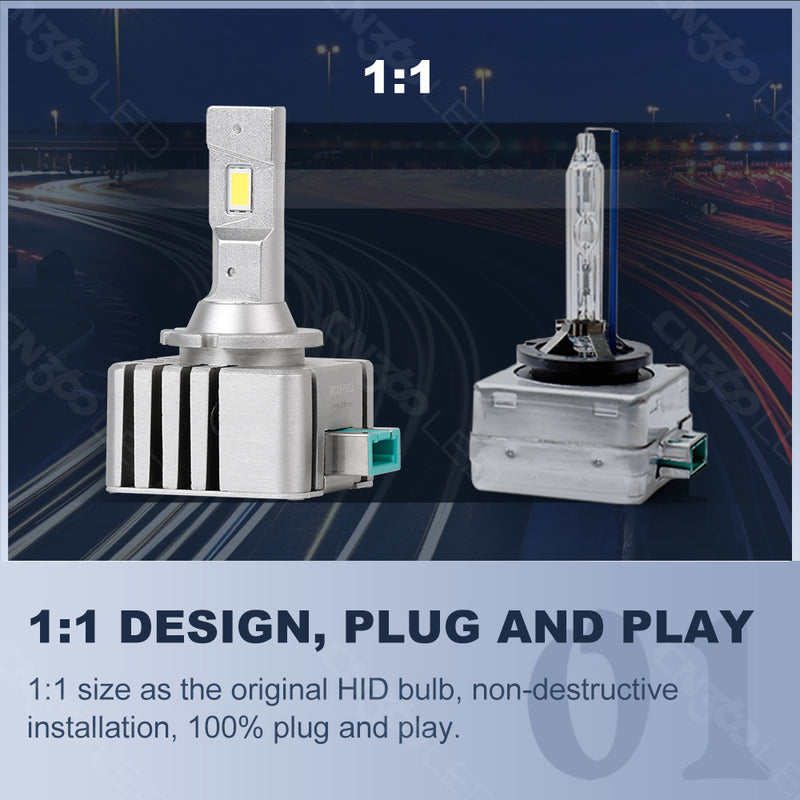

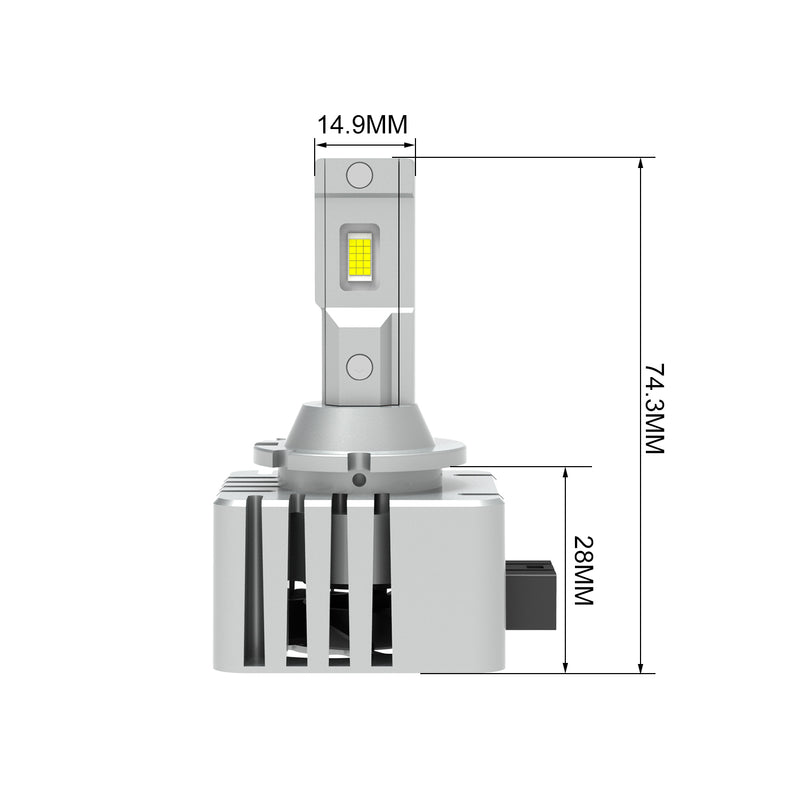

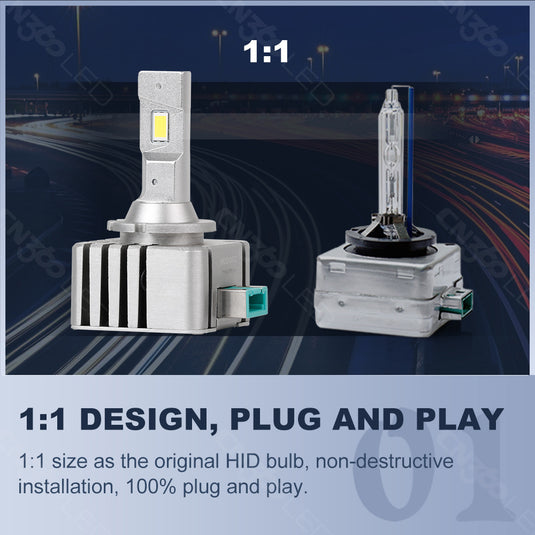

1:1 Design and Plug and Play Installation

The PRO-D1 promotional design compares the product with an original HID bulb and highlights its 1:1 size concept. This format is important for headlight-upgrade projects because bulb fitment, seating depth, and available space inside the headlamp can affect the installation process. By following a D1-oriented form factor, the PRO-D1 is designed to support a more direct replacement approach for compatible HID/xenon-converted headlight systems. The plug-and-play message reflects the intended installation concept: replace the applicable light source with a product designed around the existing D1 format, rather than redesigning the whole headlamp assembly. Final compatibility should still be matched to the vehicle, housing, and ballast arrangement used in the project.

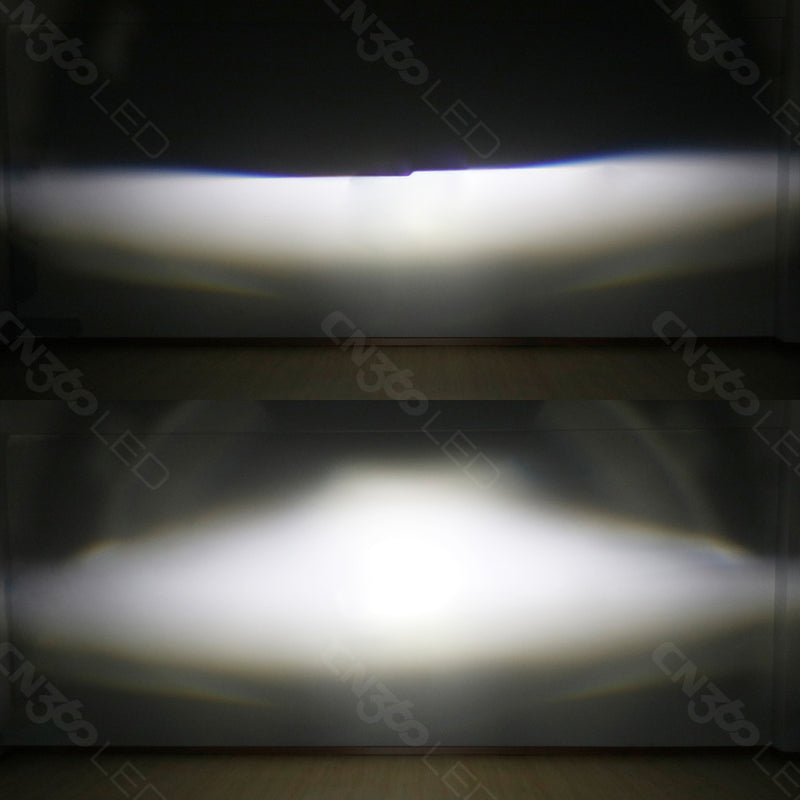

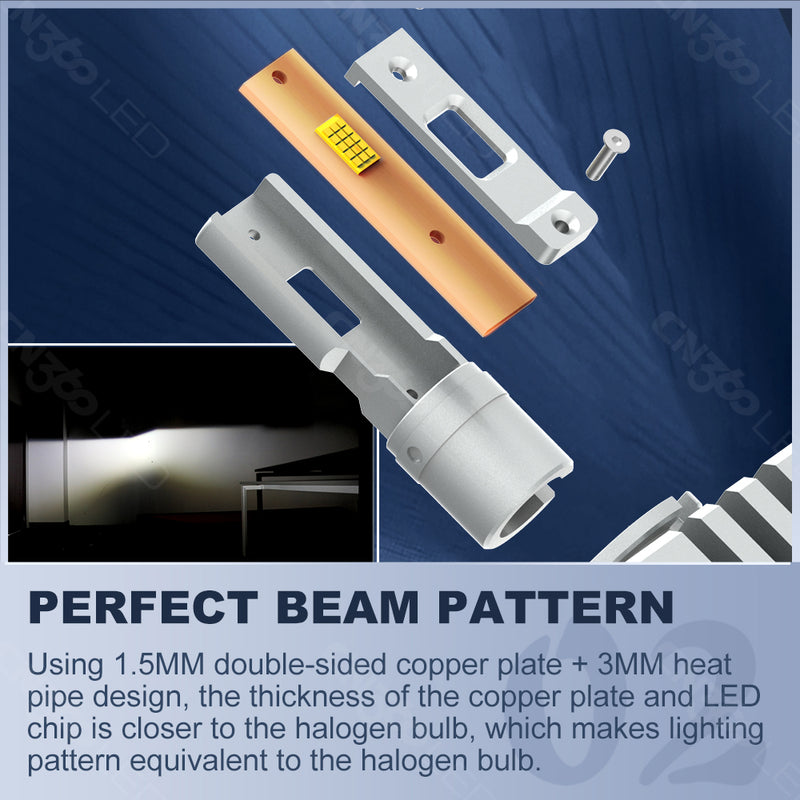

Perfect Beam Pattern

For headlight upgrades, light placement is as important as output. The PRO-D1 promotional material presents the combination of the double-sided copper plate, heat-pipe structure, and compact LED-chip position as a way to keep the light-emitting area close to the reference location used in the original headlight layout. This design direction is intended to support a more controlled beam pattern after the system is upgraded to LED. A focused lighting pattern helps the product remain suitable for headlight use, where the optical system needs light to be directed through the reflector or projector rather than dispersed as general auxiliary lighting. The PRO-D1 therefore combines its D1 form factor with a product structure designed around usable road-lighting distribution.

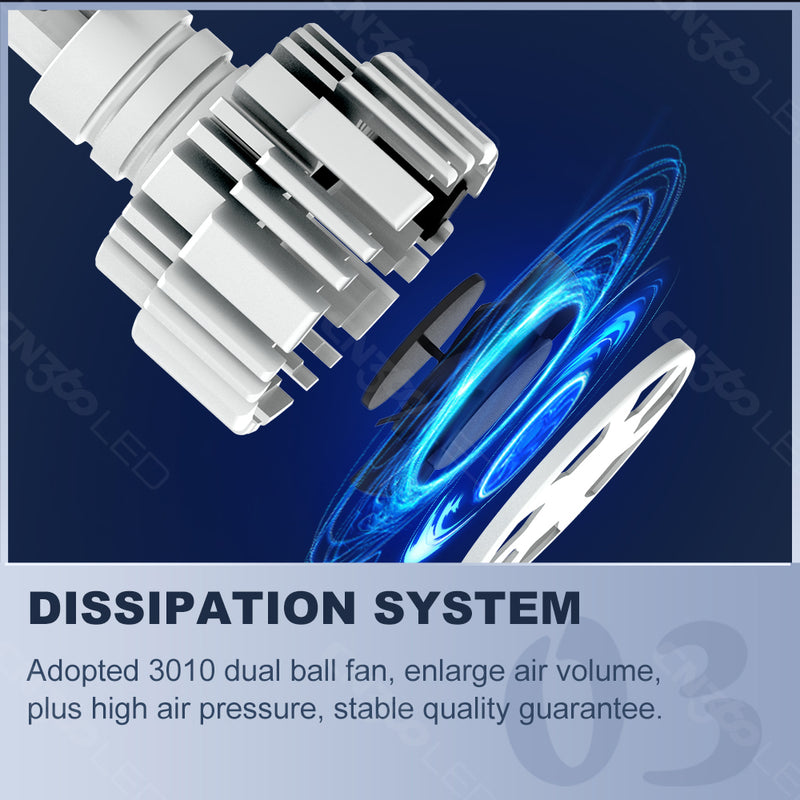

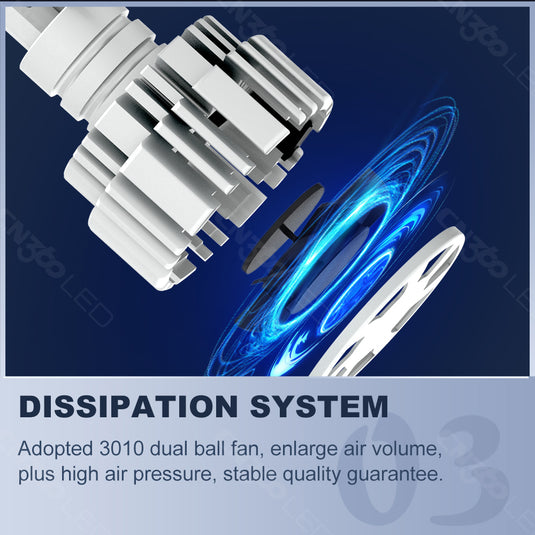

Dissipation System

Thermal control is a key part of the PRO-D1 product design. The cooling system combines the 1.5 mm double-sided copper plate, the 3 mm heat-pipe design, and a 3010 dual-ball fan. The copper plate and heat pipe are presented as the heat-transfer path near the LED-chip area, while the fan supports airflow through the rear cooling section. This structure is designed to manage heat during operation and support the stated operating-temperature range of -45°C to +85°C. For wholesale and OEM/ODM buyers, this is an important product characteristic because it connects chip performance, mechanical construction, and long-term operating stability in one complete headlight-upgrade solution.

Extreme Brightness

Extreme brightness is the core message of the PRO-D Series presentation. For the PRO-D1, the product combines two customized 8045 LED chips, a 45 V LED module, 35 W ballast-input power, and a 6,000 K white-light specification. The series technical information states lumen output above 3,500 lm in hot state and above 4,500 lm in cold state. These values give the product a clear high-output positioning for headlight-upgrade applications. The 6,000 K color temperature supports a clean white-light appearance, while the D1-oriented structure keeps the product focused on HID/xenon headlight conversion projects. For finished installations, actual lighting performance should be evaluated with the matched headlamp optics, ballast system, and installation conditions.

Certification

The PRO-D Series promotional material presents CE and RoHS certification references for the product range. This is relevant for B2B buyers who need to evaluate documentation alongside product performance, appearance, and installation format. For distributor, wholesale, private-label, and OEM/ODM programs, the required documentation should be matched to the exact PRO-D1 configuration and the regulations of the destination market before finalizing the product package, labeling, or customer-facing claims. This allows the product program to be prepared around the applicable market requirements while keeping the D1 model and technical presentation aligned.

With its D1-focused 1:1 design, customized 8045 LED chips, copper-and-heat-pipe thermal structure, active dual-ball-fan cooling, and 6,000 K white-light specification, the PRO-D1 provides a complete LED-upgrade option within the PRO-D Series. It is suited to B2B customers who need a D1-format product for HID/xenon headlight-upgrade projects, including distributors, installers, wholesale programs, and OEM/ODM sourcing applications.
