What Are Lux and Lumen and What Are the Differences Between Them?

When buying automotive lights—headlight bulbs, work lights, or light bars—two terms appear everywhere: lumen (lm) and lux (lx). They sound similar, but they describe very different things. Misunderstanding them is one of the main reasons buyers get disappointed after samples arrive: the product looks "high-lumen" on paper, yet visibility on the road or jobsite is underwhelming. This guide explains what lumen and lux really mean, how they are measured, why they can tell different stories, and how to use them correctly when evaluating automotive lighting performance.

1. What Is Lumen?

Lumen (lm) is the unit of luminous flux—the total quantity of visible light emitted by a light source per unit time. Think of lumen as the total "light budget" produced by a lamp or LED system. It does not tell you where the light goes, whether it forms a useful beam, or how bright the road looks at distance.

Lumen is most meaningful for light sources without their own optics, such as many headlight bulbs and small automotive bulbs, because the vehicle's headlamp reflector or projector shapes the beam.

For auxiliary lights and light bars, lumen alone is incomplete because optics and beam control are major parts of performance.

Let's compare a lamp to a water tap. The amount of water flowing from the tap is the water flow rate, expressed in litres per hour. For a lamp, the amount of light flowing from the lamp is the luminous flux, expressed in lumens. Dimming the lamp is equivalent to turning off the tap, while increasing the lamp's brightness is similar to opening the tap further.

The Real-World Issue: "Lumen Wars"

In the market, extremely large lumen numbers often come from theoretical or calculated lumens (chip datasheet multiplied by the number of LEDs) and may ignore optical losses (lens, reflector, housing absorption) and real test conditions (temperature, voltage, current, stabilization time). Lumen can still be helpful—but only when you know how it was measured and what it represents.

2. How Lumens Are Measured

Accurate lumen measurement typically uses an integrating sphere, a hollow sphere with a reflective interior. The lamp is placed inside, and sensors measure light reflected uniformly within the sphere to calculate total luminous flux.

• Integrating spheres capture light in all directions.
• This works well for bulbs and omnidirectional sources.
• For directional beams (work lights and light bars), total lumens can include light that does not contribute to useful road illumination.

3. What Is Lux?

Lux (lx) is the unit of illuminance—how much light falls onto a surface. Formally: 1 lux = 1 lumen per square meter (1 lx = 1 lm/m²). If lumen indicates total output, lux indicates how much light actually reaches a target area such as the road, wall, or ground.

Lux Must Be Stated with Distance

Lux values are meaningful only when the measurement distance is clearly stated. Illuminance decreases as distance increases. Without distance, a lux number is incomplete and cannot be compared reliably.

4. How Lux Is Measured

Lux is measured using a calibrated lux meter, a device equipped with a light-sensitive sensor that converts incident light into an electrical signal. The sensor is typically covered by a filter designed to simulate the human eye's spectral sensitivity, ensuring that the measurement reflects visible light rather than raw radiant energy.

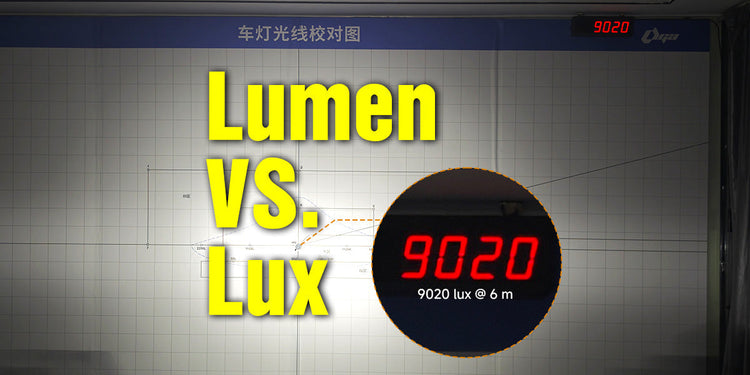

To perform a proper automotive lighting test, the lamp is mounted in a fixed position and allowed to reach thermal stabilization. This is important because LED output can vary depending on temperature and operating time. Once stabilized, the lamp is aimed at a target surface—usually a flat wall or calibrated test screen—at a predefined distance.

The lux meter is then positioned at specific measurement points. In many industry practices, the primary reading is taken at the center hotspot of the beam, but professional evaluations also include multiple surrounding points to map beam distribution. These readings provide insight into both peak intensity and how evenly the light is spread.

Because illuminance decreases with distance, lux must always be reported together with the test distance, for example: 7,500 lx @ 10 m. Without the distance reference, the lux value cannot be meaningfully compared.

In more advanced laboratory settings, automated positioning systems are used to scan across the beam pattern, generating a full illuminance map. This allows engineers to analyze hotspot strength, beam width, cutoff control, and glare zones—factors that are critical in both auxiliary lighting and regulated road applications.

5. The Core Difference: Lumen vs Lux

In simple terms:

• Lumen = total light emitted
• Lux = light received on a surface at a given distance

A product can have high lumens but low usable lux on the road if the optics scatter light inefficiently. Conversely, a product with moderate lumens can achieve high effective lux if the optics concentrate light precisely where it is needed.

6. Why Lux Is Often More Useful for Auxiliary Lights & Light Bars

For auxiliary driving lights and light bars, performance depends on reflector geometry, lens design, beam engineering, and thermal stability. Lux testing reflects the performance of the complete optical system—LED plus optics plus alignment—rather than just the raw light source.

• Request lux at a defined distance (for example: 7,500 lx @ 10 m).
• Review the beam pattern type (Spot, Flood, Driving, Combo).
• Check for beam distribution data rather than relying only on peak numbers.

7. Common Misconceptions

7.1 Higher Lumen Always Means Better Visibility

Lumen only measures total light output. If the optical system does not efficiently direct that light toward the target area, much of it may be wasted. Effective visibility depends on distribution—not just output.

7.2 Peak Lux Alone Defines Performance

Peak intensity does not describe beam width or uniformity. A narrow beam can show impressive peak lux values but fail to provide adequate lateral coverage.

7.3 Theoretical Lumens Equal Actual Output

Calculated lumens based on LED chip datasheets often ignore optical losses, thermal conditions, driver efficiency, and housing design. Theoretical values rarely match stabilized measured output.

7.4 All Beam Patterns Can Be Compared Directly

Spot beams naturally produce higher peak lux because the light is concentrated. Flood beams spread light wider and show lower peak values, yet may provide better functional visibility.

7.5 Brightness Is the Only Safety Factor

Proper beam control, glare management, cutoff precision, and uniform illumination are equally important—especially in regulated road environments.

7.6 Laboratory Numbers Reflect Real-World Conditions Exactly

Test values are measured in controlled environments. In real-world conditions—dust, vibration, temperature fluctuations, and aging—performance may vary.

These misunderstandings often lead to poor sourcing decisions and unnecessary after-sales risk.

8. Overall

Lumen and lux are complementary measurements. Lumen indicates how much light is produced in total, while lux indicates how much useful light reaches a surface at a defined distance. In automotive lighting—especially for auxiliary lights and light bars—optics, beam control, and proper testing determine real-world performance.

Understanding the difference between lux and lumen allows buyers, engineers, and lighting professionals to make informed decisions and achieve balanced brightness, controlled distribution, and safer visibility on the road.
