Product Specifications

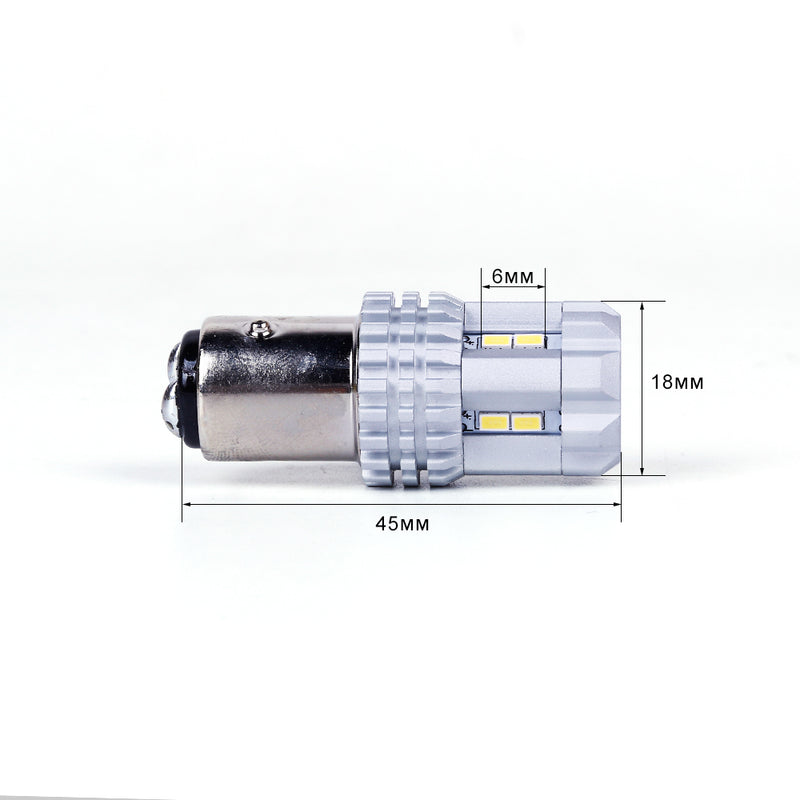

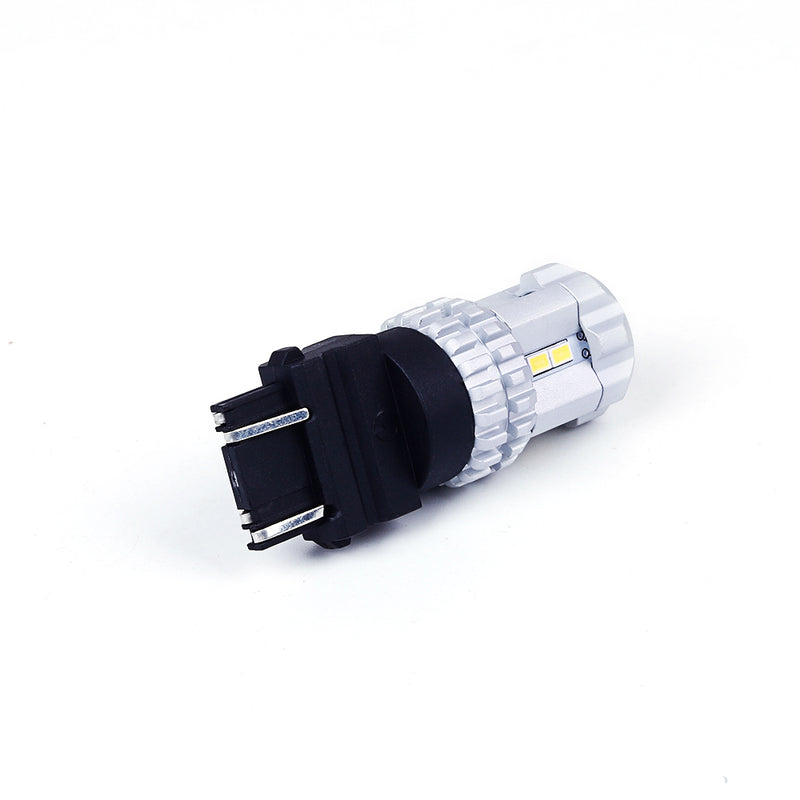

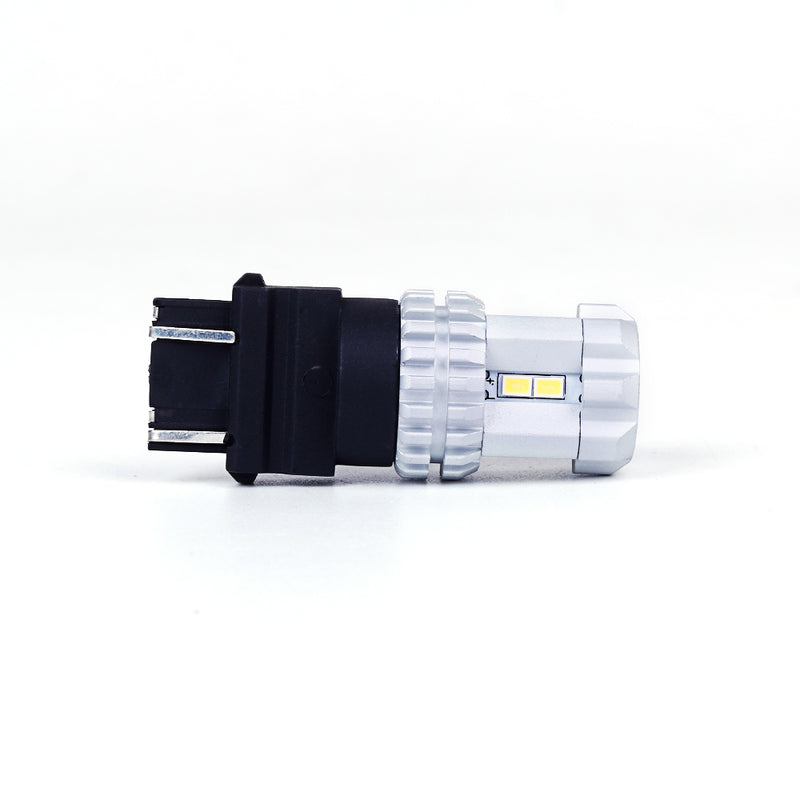

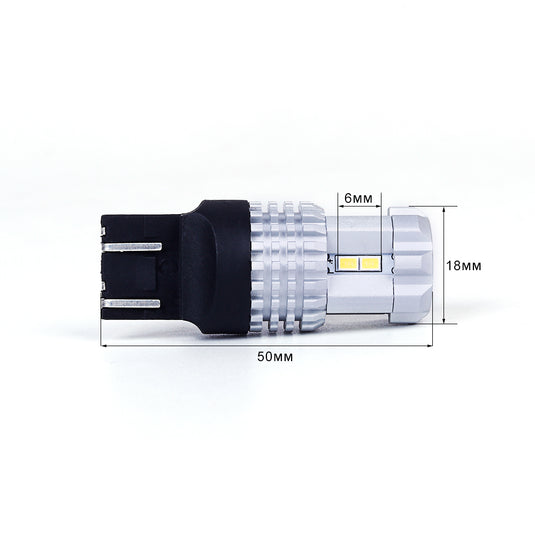

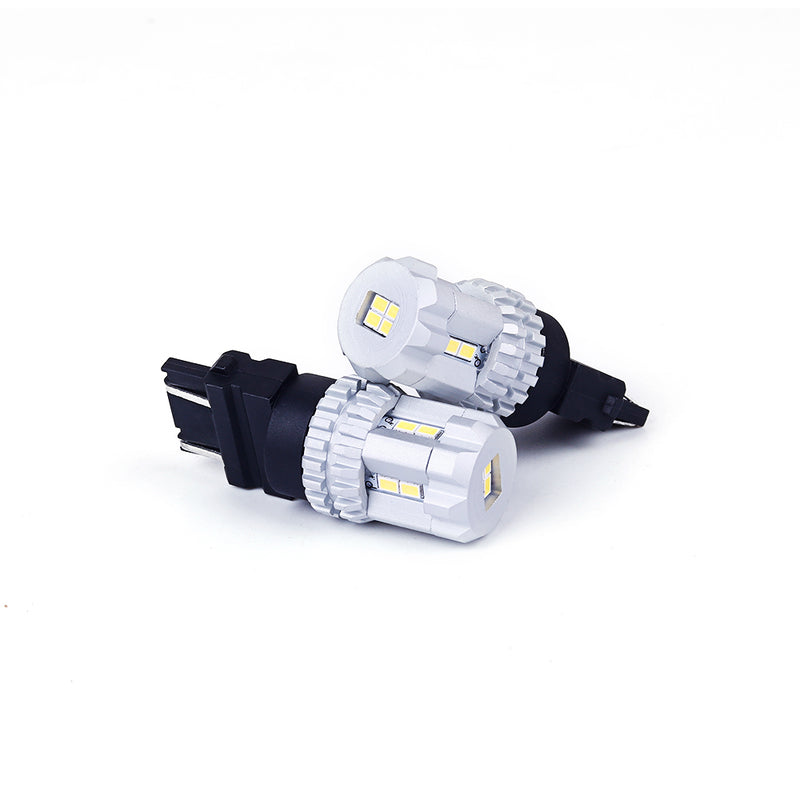

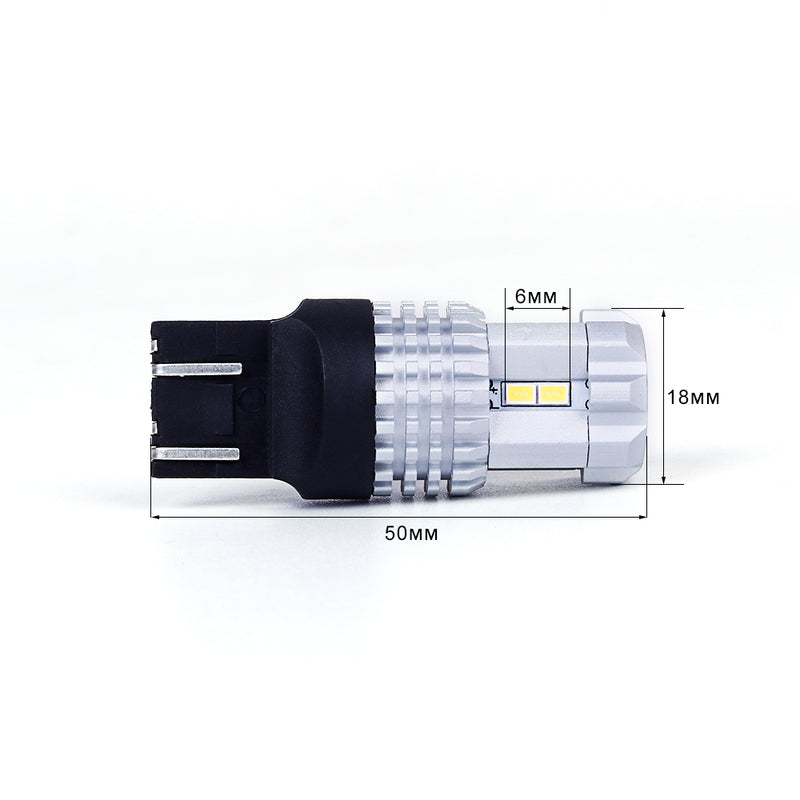

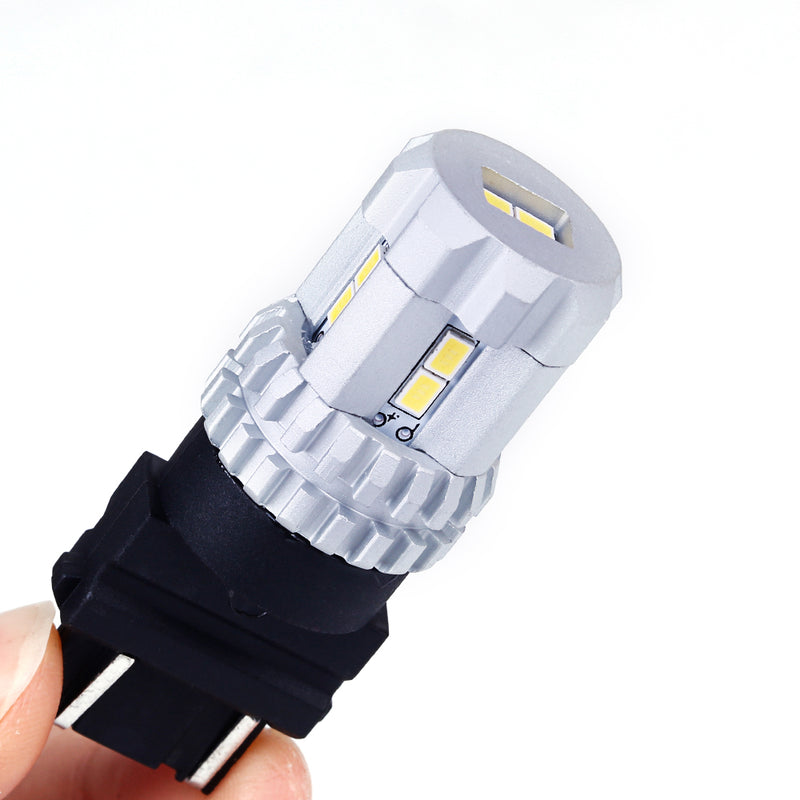

| ITEM | 5KG12-WY-3157|1157|7443 |
| OUTPUT (mA) | WHITE: 360±10mA (REAL CURRENT) AMBER: 340±10mA (REAL CURRENT) |
| LUMENS | WHITE: 550LM (REAL LUMEN) AMBER: 350LM (REAL LUMEN) |
| CHIPS | SMD3020 |
| VOLTAGE | DC 9-16V |
| LED QUANTITY | WHITE: 6PCS AMBER: 6PCS |
| COLOR TEMP. |
WHITE&AMBER |
| APPLICATION TEMP |
-40℃~+85℃ |
| REAL LIFESPAN |
>15,000 HOURS |
| USAGE | PRAKING LIGHT OR DRL, AND TURNING LIGHT |

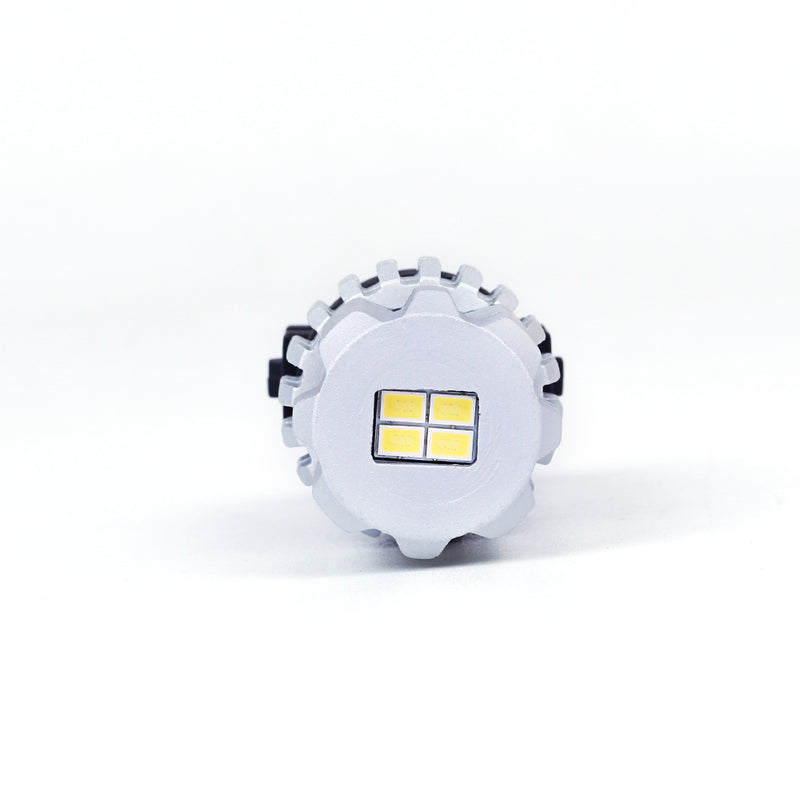

High-Efficiency SMD3020 LED Chip with Dual Driver and Advanced PCB Board
Our product features the SMD3020 LED Chip, known for its high luminous efficacy. This chip is designed with a low heat resistance structure, ensuring optimal performance even under intense usage. The large area of heat dissipation structure further enhances the chip's durability and longevity.
The dual driver design is a standout feature of our product. It ensures a stable working voltage and wattage, contributing to a longer life span of the LED chip. This design is particularly beneficial for wholesale customers looking for reliable and long-lasting products.
Our product also utilizes a pure aluminum PCB board. This material choice allows for fast heat dissipation, preventing the LED chip from burning and ensuring a longer operational life.
The working principle of our product is straightforward and efficient:
- When Parking / DRL is on, the light emitted is white (State A).
- When the Turn Signal is on, the light switches between amber and off (State B).
- When Parking / DRL is back on, the light emitted returns to white (State C).
Please note that there is a 3-second delay when the amber light switches to white light.
For the canbus function, please note that a resistor needs to be added. This is an important detail for our wholesale customers to consider when purchasing our product.
