How To Properly Aim Automotive Auxiliary Lighting

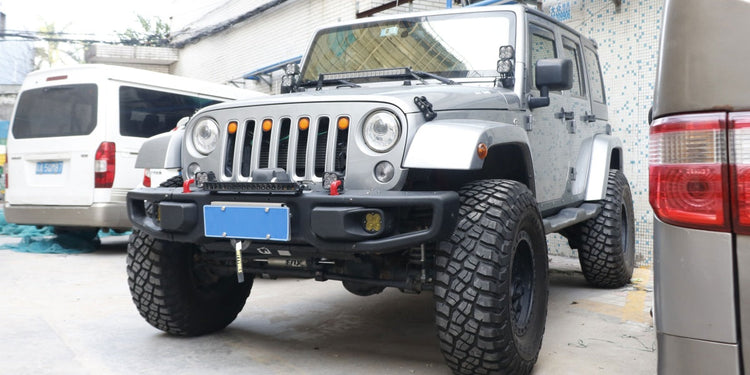

The first time you mounted a light bar on the roof of your truck, you were probably excited. You switched it on expecting to see everything clearly. Instead, you were met with a strong reflection off the hood and a cloud of dust illuminated like a snowstorm. That's when you realized auxiliary LED lights can be extremely effective—but without proper aiming, their performance is greatly reduced.
In this blog, we will explain how to properly aim your ditch lights and light bars to improve visibility without causing glare for other drivers—or for yourself. LED auxiliary lighting is powerful, but that power can work against you. A poorly aimed light bar can reflect glare back toward you in fog or dust, and ditch lights aimed incorrectly can waste output on the wrong areas of the trail. Proper adjustment is straightforward, yet it can make a significant difference on the road or on the trail.
Ditch Lights
Let's start with ditch lights. These are typically mounted near the base of the A-pillars and are designed to illuminate the sides of the trail—for example, when navigating tight corners, identifying obstacles, or detecting wildlife before it becomes a hazard.
Here is the recommended aiming method: tilt the lights slightly downward and angle them outward by approximately 20 to 30 degrees. As a practical reference, aim the driver's-side light toward the 10 to 11 o'clock direction, and the passenger-side light toward the 1 to 2 o'clock direction. Avoid aiming them straight ahead, as that area is already covered by your LED headlights and LED light bars.
Recommended Ditch Light Options
If you do not yet have ditch lights and are considering adding them to your vehicle, the following four models from our lineup are reliable options: the 3012 Series RGB Backlit LED Spot Work Light, the TR1 Series 48W 5-Inch OSRAM LED Auxiliary Light, the TR2 Series Hyper Spot Off-Road LED Pods, and the 3045 Series 3.3-Inch 20W Pod Spot Light. These compact lights provide strong illumination and deliver the beam precisely where it is needed.
Beam Pattern Overview
Beam patterns generally fall into several categories: spot beam, which concentrates light into a focused, long-range hotspot; flood beam, which provides a broad, wide-angle spread for close- to mid-range coverage; driving beam, which delivers a longer-reaching, road-oriented pattern with a more controlled spread; and fog light beam, which is designed to illuminate low and wide to help reduce glare in fog, dust, rain, or snow.
If you are uncertain which lens pattern best suits your needs, a practical choice is a combination pattern that integrates a driving beam with a fog light beam, offering both forward distance illumination and low, wide foreground coverage.
Light Bars
Light bars are primarily designed for longer-range illumination, providing extended forward visibility in low-light conditions. However, they deliver their full benefit only when correctly aimed. For spot-beam light bars, keep the beam centered forward with a slight downward angle to control glare and maximize usable distance.
For driving-beam light bars, aim them similarly, ensuring the pattern projects far ahead while maintaining a controlled spread appropriate for higher-speed driving. For combination patterns, allow the wider side illumination to fill the foreground and peripheral area, while the central hotspot provides long-range reach.
In addition to full-size distance-focused options, smaller light bars with a fog light beam pattern are also available and are intended to project low and wide, improving close-range visibility and reducing glare in fog, dust, rain, or snow.
Roof-Mounted Light Bar Aiming Notes
For roof-mounted light bars, the aiming angle should be carefully controlled. If aimed too high, the light will be projected upward and wasted into the sky. If aimed too low, excessive reflection from the hood can create significant glare and reduce effective visibility.
A practical recommendation is to apply a matte black hood decal or vinyl wrap if a roof-mounted light bar causes noticeable hood reflection. This surface finish helps reduce glare and can significantly improve visual comfort during night driving.
Simple At-Home Aiming Method
The following method provides a simple and effective way to aim your lights at home. First, park the vehicle approximately 25 feet from a wall or garage door. Next, measure the height from the ground to the center of the light and mark the same height on the wall. Finally, adjust the light so that the hotspot falls approximately 2 to 4 inches below the reference line.
Use Lights Appropriately for Conditions
Proper auxiliary lighting is determined not only by aiming, but also by appropriate use based on conditions and driving scenarios. Each light is designed for a specific purpose, and selecting the wrong beam pattern or using it in unsuitable conditions can reduce visibility rather than improve it.
Ditch lights are well suited for tight trails, corners, and low-speed technical driving. They are particularly effective when navigating through wooded areas, identifying obstacles along the sides of the route, or operating at night in controlled, slow-moving conditions. Typical applications include rock crawling, overlanding, tight switchbacks, and improved visibility along trail edges.
Bumper-mounted light bars are commonly configured with a combination beam pattern and are well suited for moderate speeds and general trail illumination. Compared with roof-mounted light bars—often in the 40-inch to 50-inch range—bumper-mounted options are typically more compact, commonly around 20 to 30 inches. They illuminate the route ahead while providing effective coverage at both close and medium distances. Typical applications include forest roads, desert driving, and wide open trails.
Roof-mounted light bars provide long-range illumination and are effective for projecting light far ahead. However, in dusty or foggy conditions, they can significantly increase backscatter and glare, which may reduce usable visibility. These light bars are best used when the air is clear and higher speeds require extended forward sight distance. Typical applications include open terrain and high-speed driving in conditions without fog or heavy dust.
Fog lights and amber lights are recommended for conditions such as dust, fog, rain, or snow. Amber or yellow output can help reduce glare and improve contrast, allowing you to see more clearly in low-visibility environments. These lights are particularly suitable for adverse weather, dusty convoys, and nights with limited visibility.
Therefore, before activating all auxiliary lights simultaneously, consider the specific visibility requirement at that moment by selecting the appropriate light, aiming it correctly, and using it under suitable conditions. This approach delivers more effective lighting performance and a more comfortable driving experience.
On-Road Use and Compliance
It is also important to note that many off-road lighting products are not permitted for on-road use unless they are covered or switched off. To help ensure compliance and safe operation, auxiliary lights should be wired on a separate circuit with an independent switch, rather than being connected to the high-beam circuit. Improper use can create glare for oncoming traffic and may result in legal penalties. Because regulations vary by jurisdiction, you should review the applicable local laws to confirm what is permitted in your area.
Closing Notes
When auxiliary lights are properly aimed and used appropriately, visibility can be significantly improved while glare and eye fatigue are reduced, supporting safer and more confident driving on the road or on the trail.
